FWTYL7575 Series

Catalog

OM5 SIG CORE 12F TRUNK LSZH

...

Part	Return Loss	Color - Cable	Color - Connectors	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Bend Radius [radius]	2nd Connector	Ratings	Features	1st Connector	Cable Diameter	Cable Diameter	Type	Cable Type
Panduit Corp FWTYL7575LAM031	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke Pulling Eye	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk

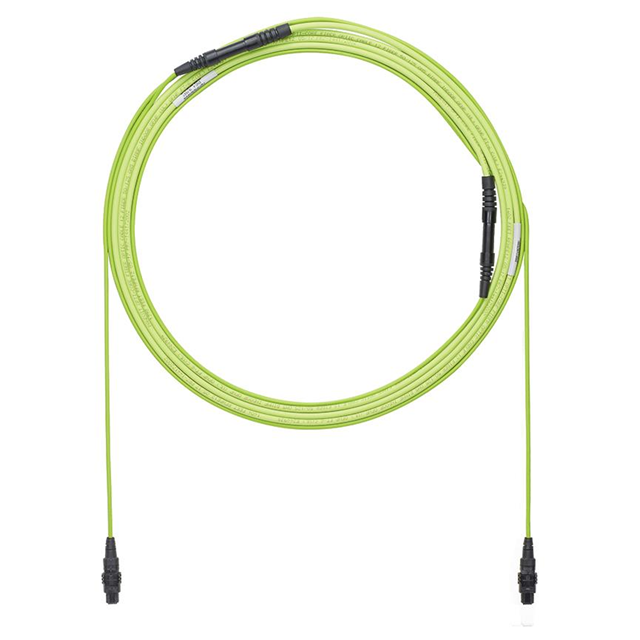

Panduit Corp FWTYL7575LAM006	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke Pulling Eye	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
Panduit Corp FWTYL7575KAM096	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke Pulling Eye	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
Panduit Corp FWTYL7575KNM021	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
Panduit Corp FWTYL7575KAM038	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke Pulling Eye	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
Panduit Corp FWTYL7575LAM017	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke Pulling Eye	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
Panduit Corp FWTYL7575KAM093	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke Pulling Eye	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
Panduit Corp FWTYL7575KNM013	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
Panduit Corp FWTYL7575KNM027	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
Panduit Corp FWTYL7575LAM011	30 dB	Green	Black	-20 ░C	70 °C	0.25 dB	45 mm	MPO	LSZH	Low Smoke Pulling Eye	MPO	4.5 mm	0.18 in	Multimode OM5	Trunk
