78423 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

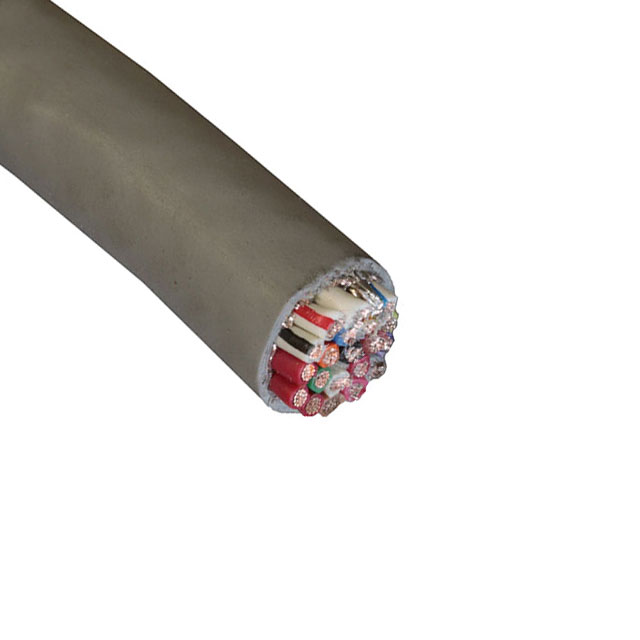

CABLE 20COND 24AWG SHLD 100'
| Part | Shield Material | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Voltage | Shield Type | Length [x] | Length [x] | Ratings | Number of Conductors | Jacket Color | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Features | Conductor Insulation | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | 80 °C | -40 C | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 6.83 mm | 0.269 " | 24 AWG | 300 VDC | Braid Foil | 100 ft | 30.5 m | ISO 10993 UL Style 21460 | 20 | Slate | 0.381 mm | 0.015 in | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | Copper Tinned | ||
ALPHA WIRE | Copper Tinned Suprashield® | 100 % | 80 °C | -40 C | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 6.83 mm | 0.269 " | 24 AWG | 300 VDC | Braid Foil | 1 ' | 300 mm | ISO 10993 UL Style 21460 | 20 | Slate | 0.381 mm | 0.015 in | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | Copper Tinned | ||
ALPHA WIRE | Copper Tinned Suprashield® | 100 % | 80 °C | -40 C | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | 6.83 mm | 0.269 " | 24 AWG | 300 VDC | Braid Foil | ISO 10993 UL Style 21460 | 20 | Slate | 0.381 mm | 0.015 in | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 304.8 m | 1000 ft |
