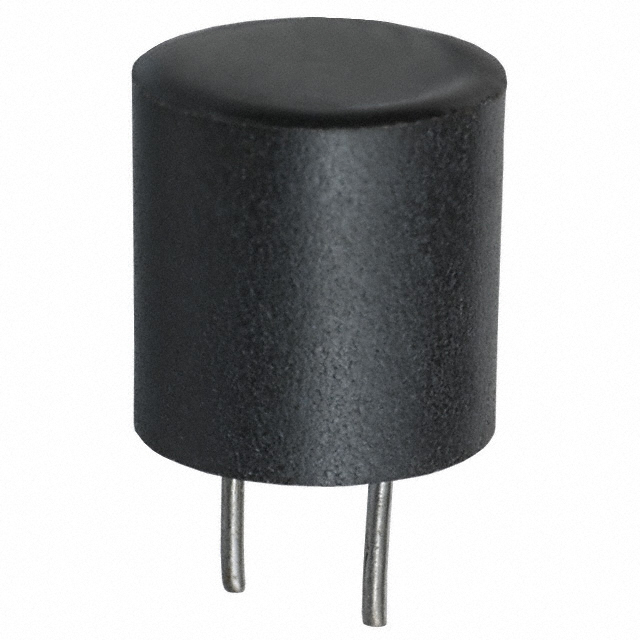

RL181S Series
Manufacturer: Bourns Inc.
Beta
⌘K
RF CHOKE SHIELDED WIREWOUND 1000UH 5% 1KHZ 70Q-FACTOR 0.09A 3.4OHM DCR RDL BAG
| Part | Inductance Frequency - Test | Q @ Freq [custom] | Q @ Freq [custom] | Tolerance | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Type | Current Rating (Amps) | Shielding | Inductance | Mounting Type | Material - Core | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency - Self Resonant | Q @ Freq [custom] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 kHz | 70 | 50 kHz | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 3.4 Ohm | 10.5 mm | 0.413 in | Drum Core Wirewound | 0.09 A | Shielded | 1 mH | Through Hole | Ferrite | 14 mm | 0.551 in | 770 kHz | ||
 Bourns Inc. | 1 kHz | 70 | 50 kHz | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 4 Ohm | 10.5 mm | 0.413 in | Drum Core Wirewound | 70 mA | Shielded | 1.5 mH | Through Hole | Ferrite | 14 mm | 0.551 in | 640 kHz | ||
Bourns Inc. | 1 kHz | 100 | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 8.4 Ohm | 10.5 mm | 0.413 in | Drum Core Wirewound | 40 mA | Shielded | 5.6 mH | Through Hole | Ferrite | 14 mm | 0.551 in | 350 kHz | 50 kHz | ||
Bourns Inc. | 1 kHz | 100 | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 82 Ohm | 10.5 mm | 0.413 in | Drum Core Wirewound | 9 mA | Shielded | Through Hole | Ferrite | 14 mm | 0.551 in | 90 kHz | 50 kHz | |||
Bourns Inc. | 1 kHz | 100 | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 10.5 mm | 0.413 in | Drum Core Wirewound | 0.035 A | Shielded | Through Hole | Ferrite | 14 mm | 0.551 in | 320 kHz | 50 kHz | 9.7 Ohm | |||
Bourns Inc. | 1 kHz | 100 | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 67 Ohm | 10.5 mm | 0.413 in | Drum Core Wirewound | 11 mA | Shielded | 68 mH | Through Hole | Ferrite | 14 mm | 0.551 in | 90 kHz | 50 kHz | ||
Bourns Inc. | 1 kHz | 100 | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 10.5 mm | 0.413 in | Drum Core Wirewound | 13 mA | Shielded | 47 mH | Through Hole | Ferrite | 14 mm | 0.551 in | 120 kHz | 50 kHz | 52 Ohm | ||
Bourns Inc. | 1 kHz | 100 | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 15 Ohm | 10.5 mm | 0.413 in | Drum Core Wirewound | 0.022 A | Shielded | 15 mH | Through Hole | Ferrite | 14 mm | 0.551 in | 220 kHz | 50 kHz | ||
Bourns Inc. | 1 kHz | 100 | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 17 Ohm | 10.5 mm | 0.413 in | Drum Core Wirewound | 21 mA | Shielded | 18 mH | Through Hole | Ferrite | 14 mm | 0.551 in | 190 kHz | 50 kHz | ||
Bourns Inc. | 1 kHz | 100 | 5 % | Radial Vertical Cylinder | -55 C | 105 ░C | 58 Ohm | 10.5 mm | 0.413 in | Drum Core Wirewound | 12 mA | Shielded | 56 mH | Through Hole | Ferrite | 14 mm | 0.551 in | 120 kHz | 50 kHz |
