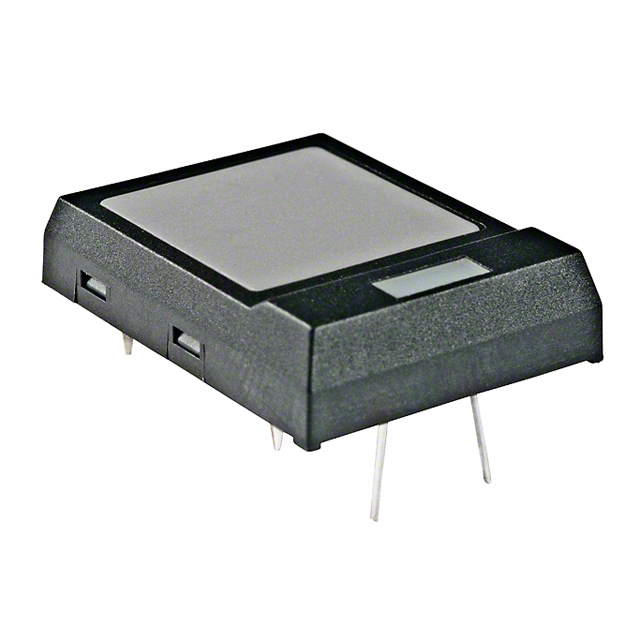

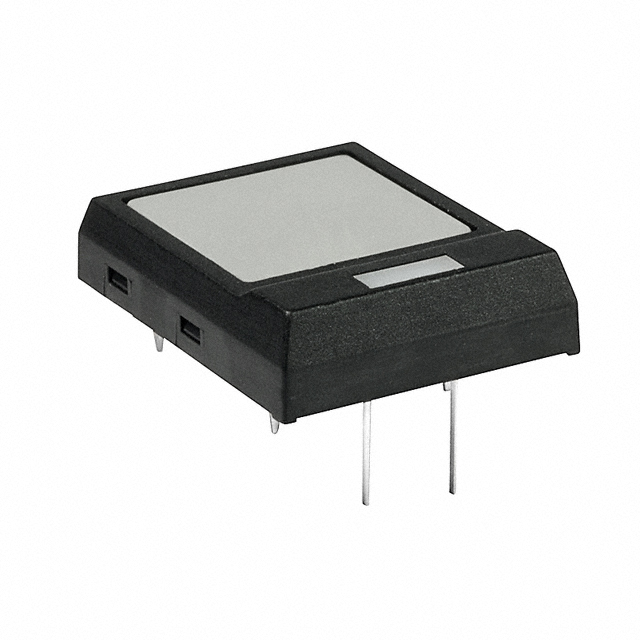

JF15RP1H Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TACTILE OFF (ON) SPST FLUSH SQUARE BUTTON PC PINS 0.05A 24VDC 500000CYCLES 3N THRU-HOLE
| Part | Switch Travel | Actuator Material | Mechanical Life | Contact Rating @ Voltage | Termination Style | Actuator Type | Outline [x] | Outline [y] | Actuator Orientation | Switch Function | Mounting Type | Actuator Height off PCB, Vertical | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Operating Force | Illumination Voltage (Nominal) | Illumination Type, Color | Circuit | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 0.4 mm | Polyamide (PA) Nylon | 500000 Cycles | 0.05 A 24 VDC | PC Pin | Square Button | 22.8 mm | 17.7 mm | Top Actuated | Off-Mom | Through Hole | 5.08 mm | -25 °C | 70 °C | Illuminated | 300 gf | 2 VDC | Green LED | SPST-NO | Process Sealed |
 NKK Switches | 0.4 mm | Polyamide (PA) Nylon | 500000 Cycles | 0.05 A 24 VDC | PC Pin | Square Button | 22.8 mm | 17.7 mm | Top Actuated | Off-Mom | Through Hole | 5.08 mm | -25 °C | 70 °C | Illuminated | 300 gf | 2 VDC | LED Red | SPST-NO | Process Sealed |
