895-005 Series
Manufacturer: EDAC Inc.
Beta
⌘K

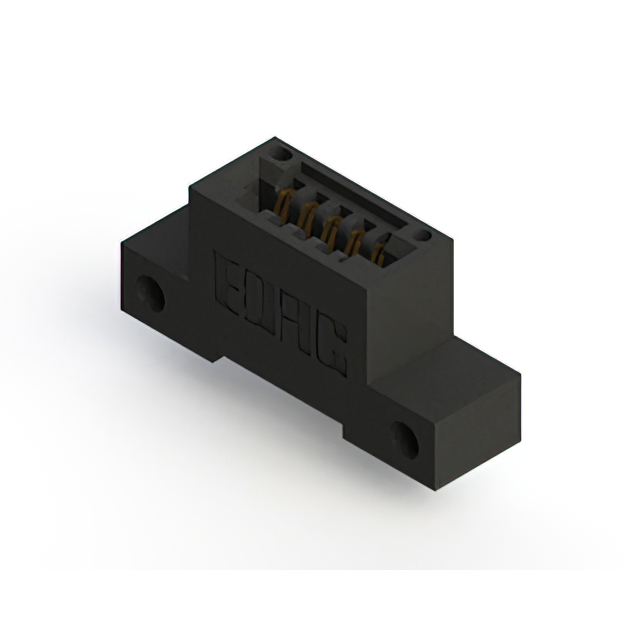

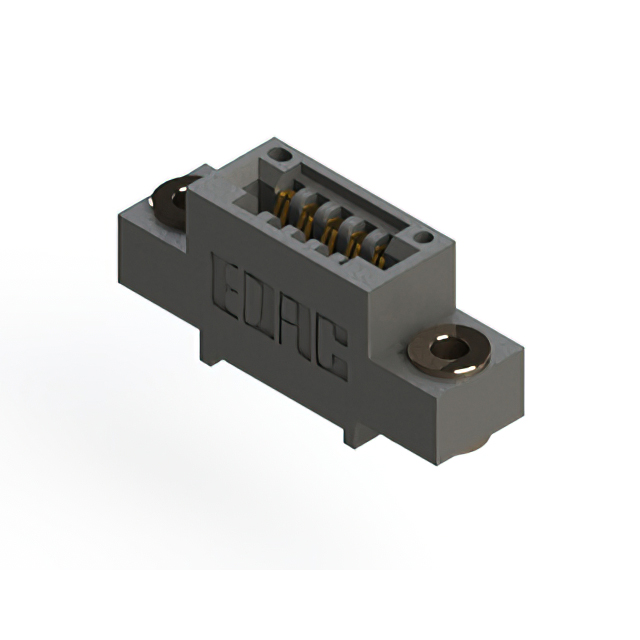

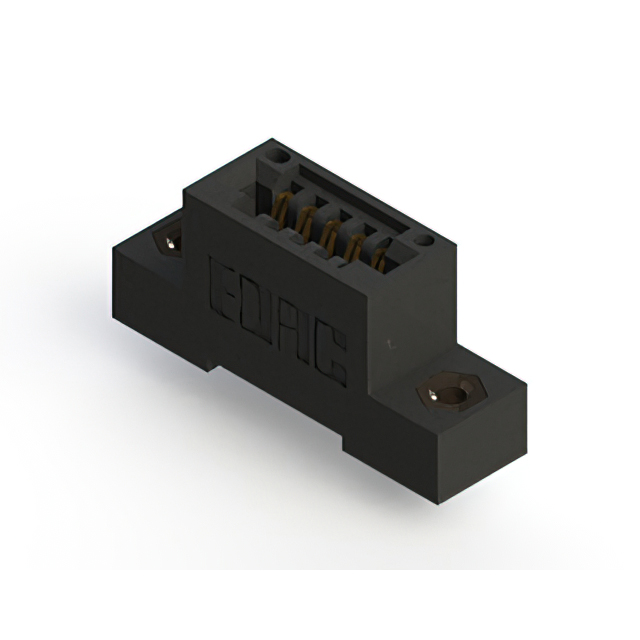

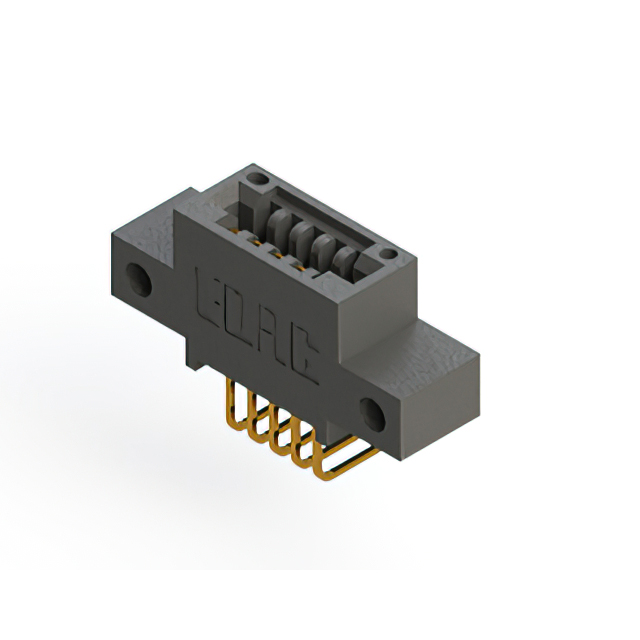

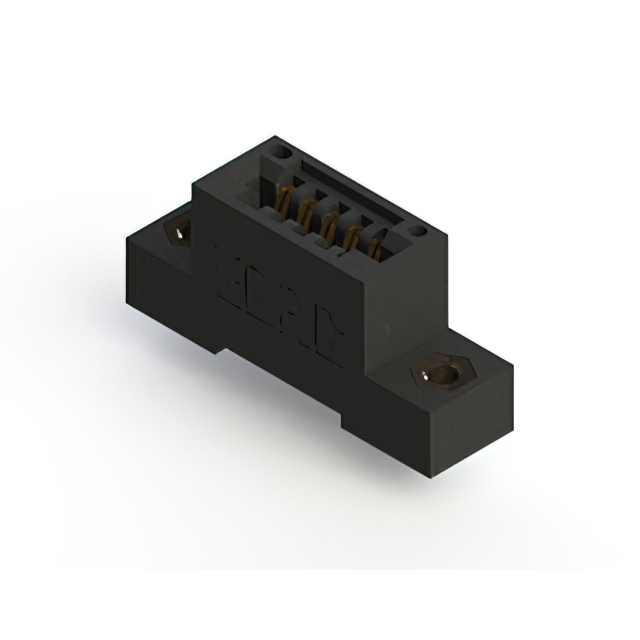

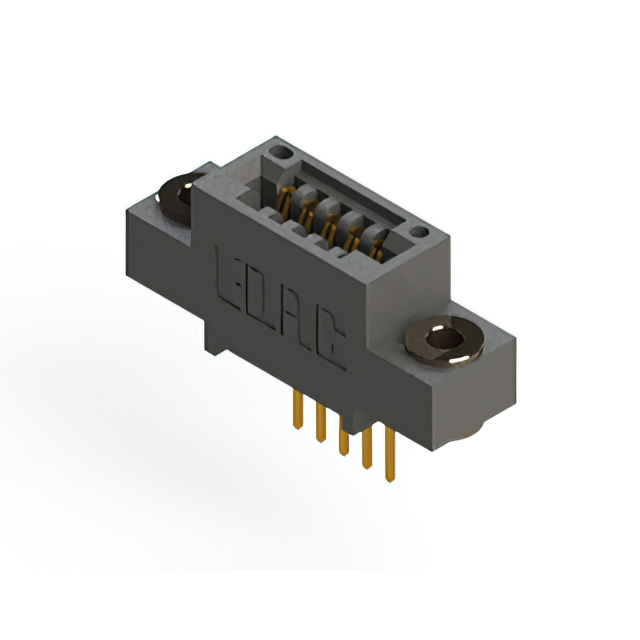

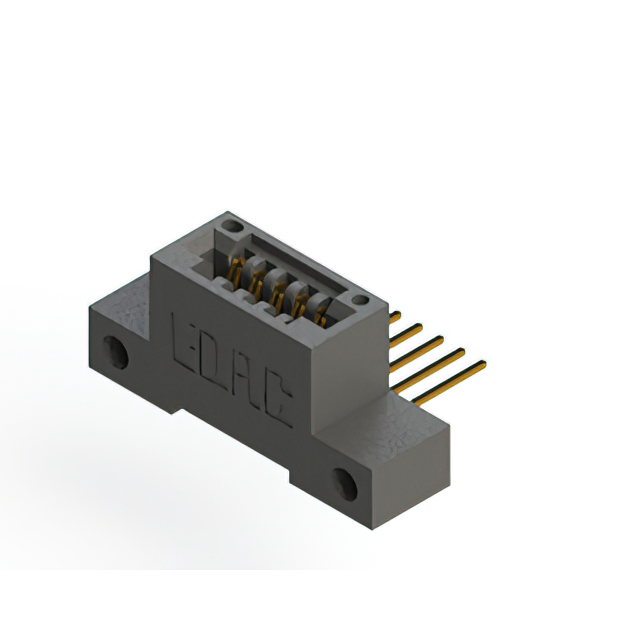

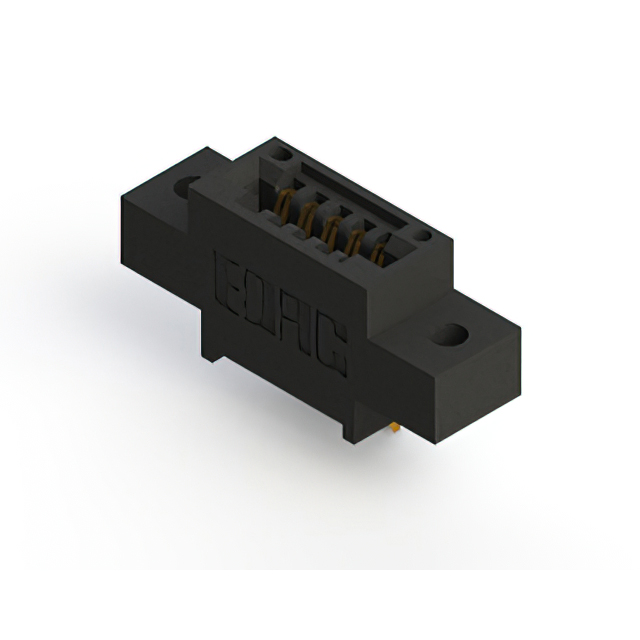

CONN EDGE SINGLE FML 5POS 0.100
| Part | Material - Insulation | Termination Rows | Gender | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish | Read Out | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Color | Card Type | Contact Type | Number of Positions | Number of Positions/Bay/Row |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Solder | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 1 | Flush Mount M3 Threaded Insert Top Opening | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Solder | 1 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Solder | 1 | 4-40 Threaded Insert Top Mount Opening | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Solder | 1 | 0.156 " | 3.96 mm | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Wire Wrap | 1 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Wire Wrap | 1 | 4-40 Threaded Insert Top Mount Opening | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Solder | 1 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Gold | Single | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Solder | 1 | 4-40 Threaded Insert Top Mount Opening | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Female | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 1 | 0.128 " | 3.25 mm | Gold | Single | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | 0.1 " | 2.54 mm | 125 °C | -40 C | Black | Non Specified - Single Edge | Cantilever | 5 | 5 |
