284053 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

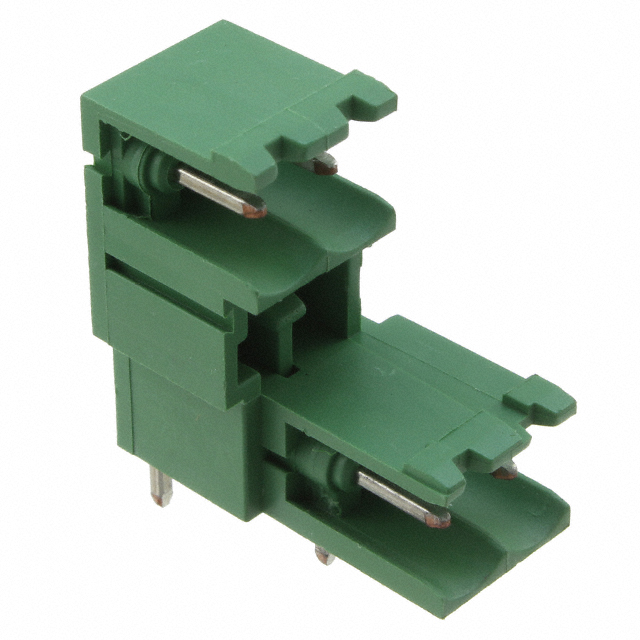

TERM BLOCK HDR 4POS 90DEG 5.08MM
| Part | Contact Mating Finish | Material Flammability Rating | Number of Positions | Contact Material | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Header Orientation | Insulation Height | Insulation Height | Mounting Type | Voltage - UL | Current - UL | Positions Per Level | Type | Features | Color | Termination Style | Contact Tail Length | Contact Tail Length | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Tin | UL94 V-0 | 4 | Copper Alloy | 0.2 in | 5.08 mm | -40 °C | 110 °C | 90° Right Angle | 0.909 in | 23.09 mm | Through Hole | 300 V | 12 A | 2 | Header Male Pins Shrouded (2 Side) | Interlocking (Side) | Green | Solder | 3.5 mm | 0.138 in | 2 |
