CT417 Series

Catalog

BOARD MOUNT CURRENT SENSORS XTREMESENSE TMR ULTRA-LOW NOISE, 8-LEAD SOIC (30 ADC; VDD = 3.3 V; UP TO +125C) FLT# FOR OCD

Part	Accuracy	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Frequency [Max]	Frequency [Min]	Mounting Type	Polarization	Output	For Measuring	Current - Sensing	Sensor Type	Number of Channels [custom]	Linearity	Current - Supply (Max) [Max]	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Supplied Contents	Utilized IC / Part	Interface	Contents	Sensing Range [Min]	Sensing Range [Max]

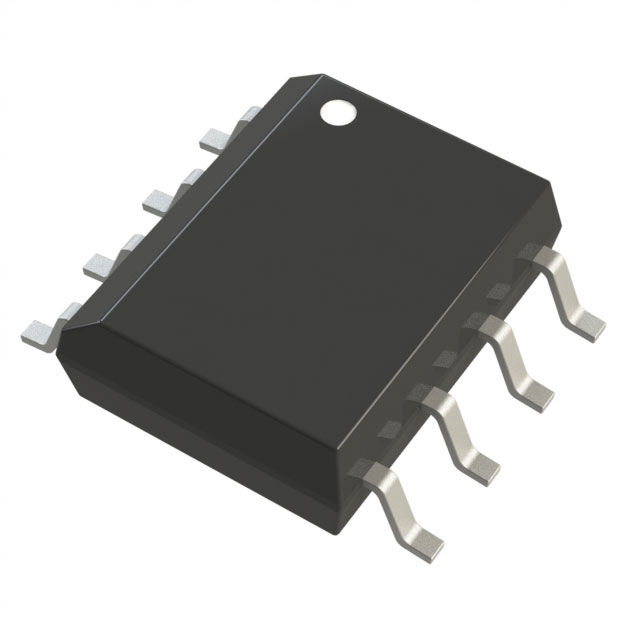

Allegro MicroSystems CT417-HSN830DR	1 %	300 ns	125 °C	-40 C	0.154 in	8-SOIC	3.9 mm	1 MHz	DC	Surface Mount	Unidirectional	Ratiometric Voltage	AC DC	30 A	Magnetoresistive	1	0.1 %	9 mA	66.7 mV/A	3.6 V	3 V	8-SOIC
Allegro MicroSystems CT417-HSN830MR	1 %	300 ns	125 °C	-40 C	0.154 in	8-SOIC	3.9 mm	1 MHz	DC	Surface Mount	Bidirectional	Ratiometric Voltage	AC DC	30 A	Magnetoresistive	1	0.1 %	9 mA	33.3 mV/°/s	3.6 V	3 V	8-SOIC
Allegro MicroSystems CT417-HSN850MR	1 %	300 ns	125 °C	-40 C	0.154 in	8-SOIC	3.9 mm	1 MHz	DC	Surface Mount	Bidirectional	Ratiometric Voltage	AC DC	50 A	Magnetoresistive	1	0.1 %	9 mA	20 mV/mT	3.6 V	3 V	8-SOIC
Allegro MicroSystems CT417-HSN865DR	1 %	300 ns	125 °C	-40 C	0.154 in	8-SOIC	3.9 mm	1 MHz	DC	Surface Mount	Unidirectional	Ratiometric Voltage	AC DC	65 A	Magnetoresistive	1	0.2 %	9 mA	30.8 mV/A	3.6 V	3 V	8-SOIC
Allegro MicroSystems CT417-HSN820DR	1 %	300 ns	125 °C	-40 C	0.154 in	8-SOIC	3.9 mm	1 MHz	DC	Surface Mount	Unidirectional	Ratiometric Voltage	AC DC	20 A	Magnetoresistive	1	0.1 %	9 mA	15.4 LSB/mT	3.6 V	3 V	8-SOIC
Allegro MicroSystems CT417-HSN850DR	1 %	300 ns	125 °C	-40 C	0.154 in	8-SOIC	3.9 mm	1 MHz	DC	Surface Mount	Unidirectional	Ratiometric Voltage	AC DC	50 A	Magnetoresistive	1	0.2 %	9 mA	40 mV/g	3.6 V	3 V	8-SOIC

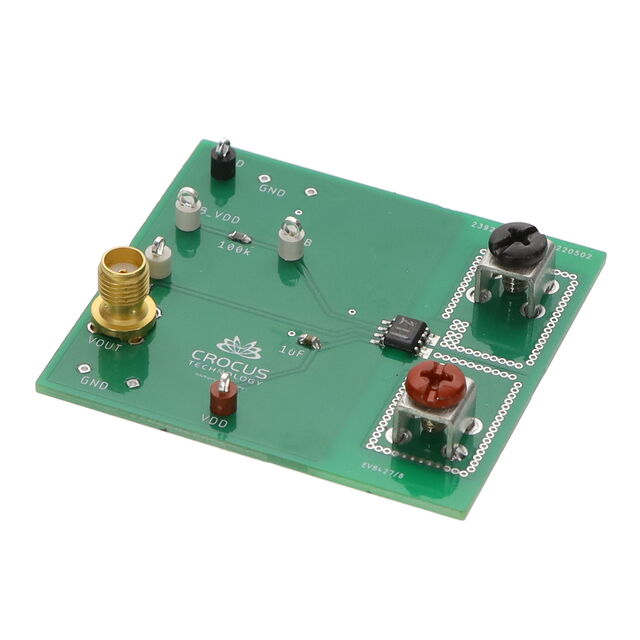

Allegro MicroSystems CTD417-50AC															Current Sensor				20 mV/mT	3.6 V	3 V		Board(s)	CT417	Analog	Board(s)	-50 A	50 A
Allegro MicroSystems CT417-HSN865MR	1 %	300 ns	125 °C	-40 C	0.154 in	8-SOIC	3.9 mm	1 MHz	DC	Surface Mount	Bidirectional	Ratiometric Voltage	AC DC	65 A	Magnetoresistive	1	0.2 %	9 mA	15.4 LSB/mT	3.6 V	3 V	8-SOIC
Allegro MicroSystems CT417-HSN820MR	1 %	300 ns	125 °C	-40 C	0.154 in	8-SOIC	3.9 mm	1 MHz	DC	Surface Mount	Bidirectional	Ratiometric Voltage	AC DC	20 A	Magnetoresistive	1	0.1 %	9 mA	50 mV/A	3.6 V	3 V	8-SOIC
