IL-G-6P Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN HEADER VERT 6POS 2.5MM
| Part | Mated Stacking Heights | Style | Material Flammability Rating | Shrouding | Fastening Type | Contact Type | Contact Shape | Current Rating (Amps) | Contact Material | Insulation Height | Insulation Height | Termination | Number of Rows | Insulation Color | Pitch - Mating | Pitch - Mating | Number of Positions | Overall Contact Length | Overall Contact Length | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Insulation Material | Contact Length - Mating | Contact Length - Mating | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Insulation Height [custom] | Insulation Height [custom] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | 10 mm | Board to Cable/Wire | UL94 V-0 | Shrouded - 1 Wall | Friction Lock | Male Pin | Square | 3 A | Brass | 0.28 in | 7.1 mm | Solder | 1 | Brown | 2.5 mm | 0.098 in | 6 | 9.6 mm | 0.378 in | Through Hole | 85 °C | -40 C | All | Nylon 6/6 Polyamide (PA66) | 4 mm | 0.157 in | Header | 3.9 µin | 0.099 µm | 0.138 in | 3.5 mm | Gold | |||

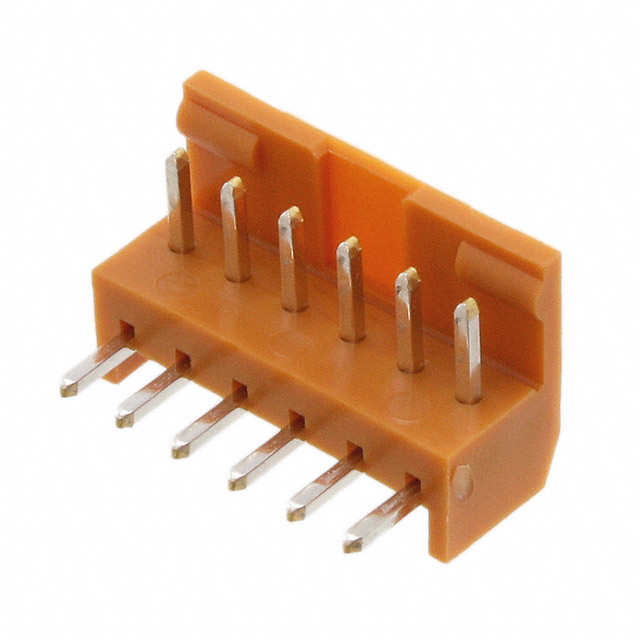

 JAE Electronics | Board to Cable/Wire | UL94 V-0 | Shrouded - 1 Wall | Friction Lock | Male Pin | Square | 3 A | Brass | Solder | 1 | Brown | 2.5 mm | 0.098 in | 6 | Right Angle Through Hole | 85 °C | -40 C | All | Nylon 6/6 Polyamide (PA66) | 4 mm | 0.157 in | Header | 0.138 in | 3.5 mm | 0.236 " | 6 mm | Tin |
