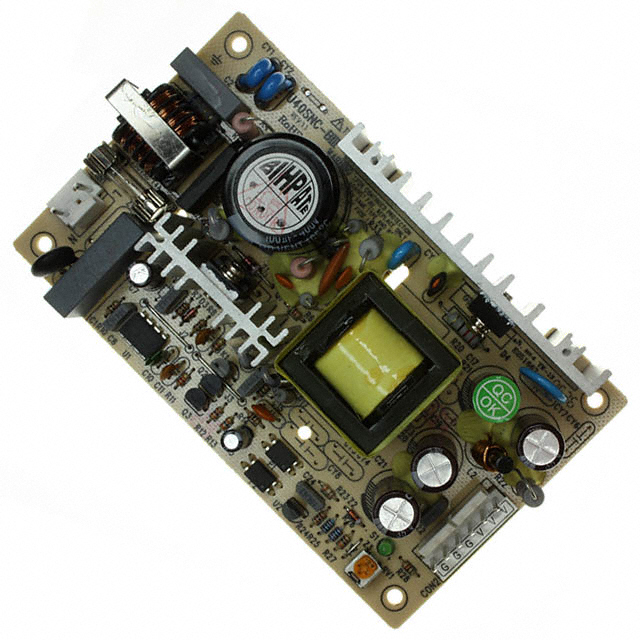

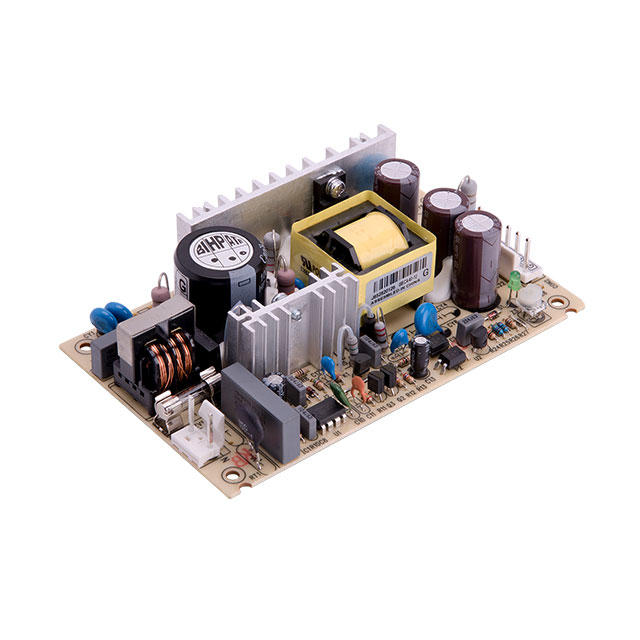

GECA40 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC CONVERTER 24V 40W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Applications	Number of Outputs	Current - Output 1	Approval Agency	Power (Watts)	Features	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output 2	Current - Output 2	Current - Output 3	Voltage - Output 3
SL POWER / Advanced Energy GECA40-24G	45 °C	0 °C	Chassis Mount	Open Frame	ITE (Commercial)	1	1.7 A	CE	40 W	Adjustable Output Universal Input	80 %	5 "	127 mm	76.2 mm	31.8 mm	3 "	1.25 in	24 V	264 VAC	90 VAC
SL POWER / Advanced Energy GECA40DG	45 °C	0 °C	Chassis Mount	Open Frame	ITE (Commercial)	3	3.5 A	CE	40 W	Adjustable Output Universal Input	80 %	5 "	127 mm	76.2 mm	31.8 mm	3 "	1.25 in	5 V	264 VAC	90 VAC	24 V	1.2 A	300 mA	-12 V
SL POWER / Advanced Energy GECA40HG	45 °C	0 °C	Chassis Mount	Open Frame	ITE (Commercial)	3	3.5 A	CE	40 W	Adjustable Output Universal Input	80 %	5 "	127 mm	76.2 mm	31.8 mm	3 "	1.25 in	3.3 V	264 VAC	90 VAC	12 V	2 A	300 mA	-12 V
SL POWER / Advanced Energy GECA40BG	45 °C	0 °C	Chassis Mount	Open Frame	ITE (Commercial)	3	3.5 A	CE	40 W	Adjustable Output Universal Input	80 %	5 "	127 mm	76.2 mm	31.8 mm	3 "	1.25 in	5 V	264 VAC	90 VAC	12 V	2 A	300 mA	-5 V
SL POWER / Advanced Energy GECA40AG	45 °C	0 °C	Chassis Mount	Open Frame	ITE (Commercial)	3	3.5 A	CE	40 W	Adjustable Output Universal Input	80 %	5 "	127 mm	76.2 mm	31.8 mm	3 "	1.25 in	5 V	264 VAC	90 VAC	12 V	2 A	300 mA	-12 V
SL POWER / Advanced Energy GECA40-5G	45 °C	0 °C	Chassis Mount	Open Frame	ITE (Commercial)	1	7 A	CE	40 W	Adjustable Output Universal Input	80 %	5 "	127 mm	76.2 mm	31.8 mm	3 "	1.25 in	5 V	264 VAC	90 VAC
SL POWER / Advanced Energy GECA40-15G	45 °C	0 °C	Chassis Mount	Open Frame	ITE (Commercial)	1	2.7 A	CE	40 W	Adjustable Output Universal Input	80 %	5 "	127 mm	76.2 mm	31.8 mm	3 "	1.25 in	15 V	264 VAC	90 VAC
SL POWER / Advanced Energy GECA40AB

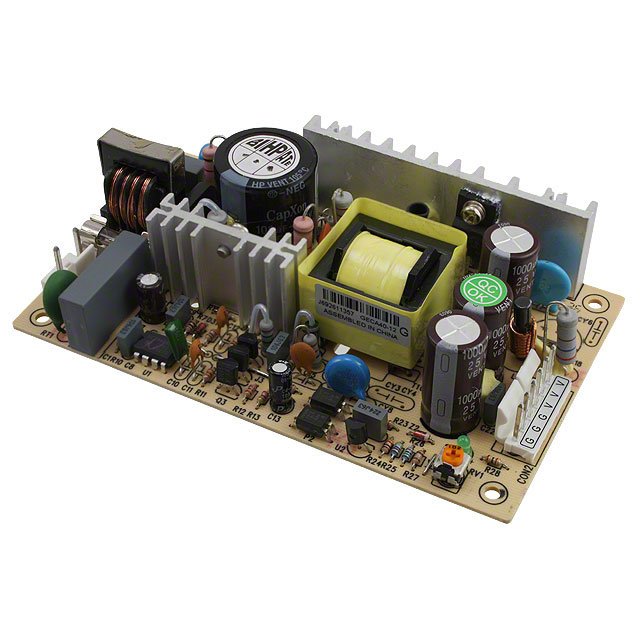

SL POWER / Advanced Energy GECA40-12G	45 °C	0 °C	Chassis Mount	Open Frame	ITE (Commercial)	1	3.3 A	CE	40 W	Adjustable Output Universal Input	80 %	5 "	127 mm	76.2 mm	31.8 mm	3 "	1.25 in	12 V	264 VAC	90 VAC
