470121CY Series

Catalog

MULTICONDUCTOR CABLE, PRO-MET®, CY CONTROL, SHIELDED, 12 CONDUCTOR, 17 AWG, 1 MM², 164 FT, 50 M

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Shield Type	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket (Insulation) Material	Length	Length	Jacket Color	Cable Type	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Coverage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Length	Length [x]	Length [x]

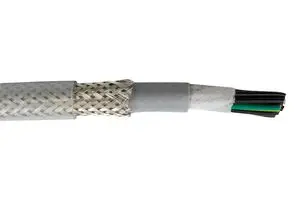

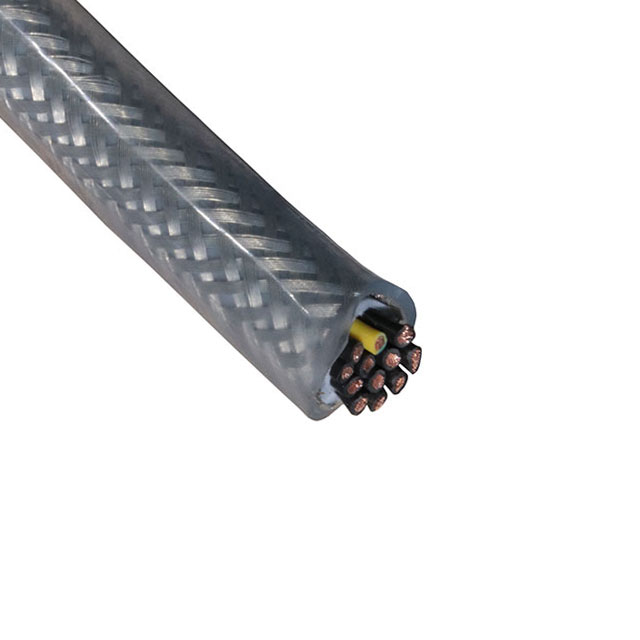

ALPHA WIRE 470121CY CL321	-40 °C	80 C	300 V	Braid	17 AWG	30	0.0079 in	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	164 ft	50 m	Clear	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1.25 mm	0.0492 in	12	80 %	Copper Bare	0.542 in	13.76 mm	Copper Tinned
ALPHA WIRE 470121CY GE432	-40 °C	80 C	300 V	Braid	17 AWG	30	0.0079 in	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)		984.3 ft	Gray	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1.25 mm	0.0492 in	12	80 %	Copper Bare	0.542 in	13.76 mm	Copper Tinned	300 m
ALPHA WIRE 470121CY CL432	-40 °C	80 C	300 V	Braid	17 AWG	30	0.0079 in	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)		984.3 ft	Clear	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1.25 mm	0.0492 in	12	80 %	Copper Bare	0.542 in	13.76 mm	Copper Tinned	300 m
ALPHA WIRE 470121CY CL033	-40 °C	80 C	300 V	Braid	17 AWG	30	0.0079 in	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	32.81 ft 65.62 ft 328.1 ft	10 m 20 m 100 m	Clear	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1.25 mm	0.0492 in	12	80 %	Copper Bare	0.542 in	13.76 mm	Copper Tinned		1 m	3.28 ft

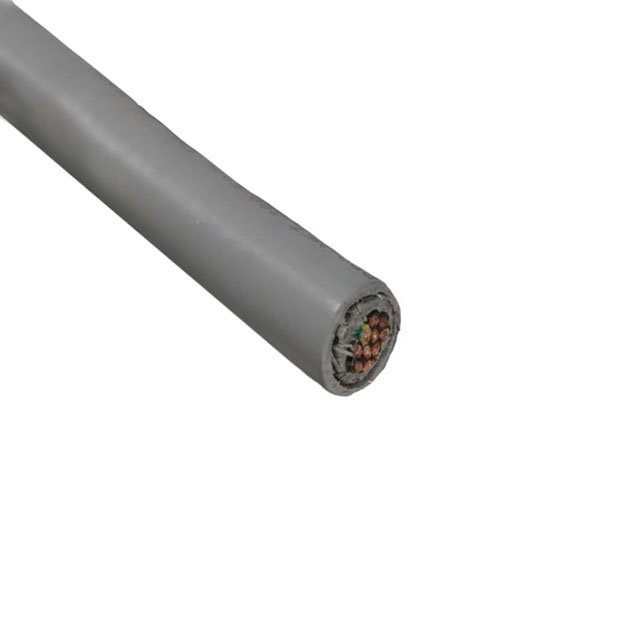

ALPHA WIRE 470121CY GE033	-40 °C	80 C	300 V	Braid	17 AWG	30	0.0079 in	Chemical Resistant Oil Resistant UV Resistant	Poly-Vinyl Chloride (PVC)	32.81 ft 65.62 ft	10 m 20 m	Gray	Multi-Conductor	Poly-Vinyl Chloride (PVC)	1.25 mm	0.0492 in	12	80 %	Copper Bare	0.542 in	13.76 mm	Copper Tinned		1 m	3.28 ft
