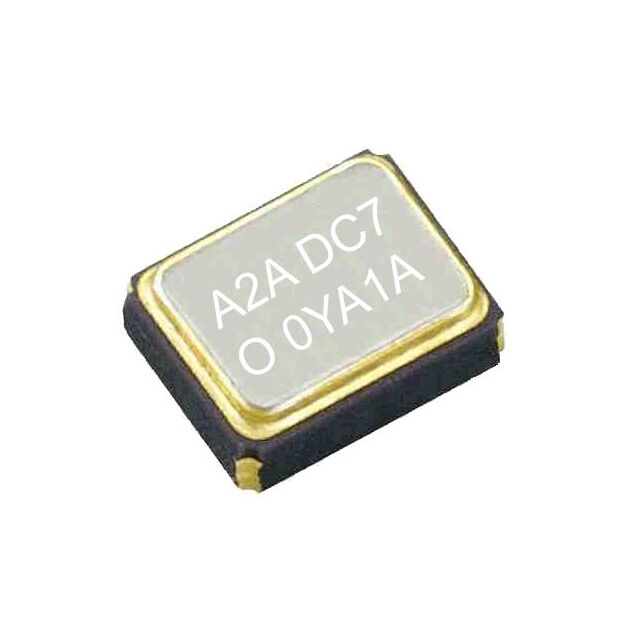

TG2016SMN Series

Manufacturer: EPSON

Catalog

Catalog

TCXO OSCILLATORS TG2016SMN 30.0000M-ECGNNM0: TCXO 1.8V 0.5PPM -40 85C NON O/E 1K TR

...

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package [custom]	Mounting Type	Frequency	Output	Frequency Stability	Operating Temperature [Max]	Operating Temperature [Min]	Base Resonator [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Supply (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type
EPSON TG2016SMN 30.0000M-ECGNNM0	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	30 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.8 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 16.0000M-MCGNNM3	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	16 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.5 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 27.0000M-MCGNNMB	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	27 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.8 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 27.6000M-ECGNNM0	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	27.6 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.8 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 27.6000M-ECGNNM5	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	27.6 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.8 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 19.2000M-ECGNNMB	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	19.2 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.5 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 20.0000M-TCGNNMB	1.7 V 1.8 V	3.3 V 3.63 V	1.6	2	4-SMD	Surface Mount	20 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.5 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 26.0000M-ZCGNNA0	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	26 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.5 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 10.0000M-MCGNNMB	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	10 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.5 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
EPSON TG2016SMN 40.0000M-MCGNNM3	1.7 V	3.63 V	1.6	2	4-SMD	Surface Mount	40 MHz	Clipped Sine Wave	500 ppb	85 °C	-40 C	Crystal	0.73 mm	0.029 in	1.8 mA	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	TCXO
