SSRS4 Series

Catalog

BRD SPT SNAP LOCK SCREW MNT 5/16

Part	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Length - Overall	Length - Overall	Length - Overall	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Features	Mounting Type	Between Board Height	Between Board Height	Between Board Height	Material	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Holding Type	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]

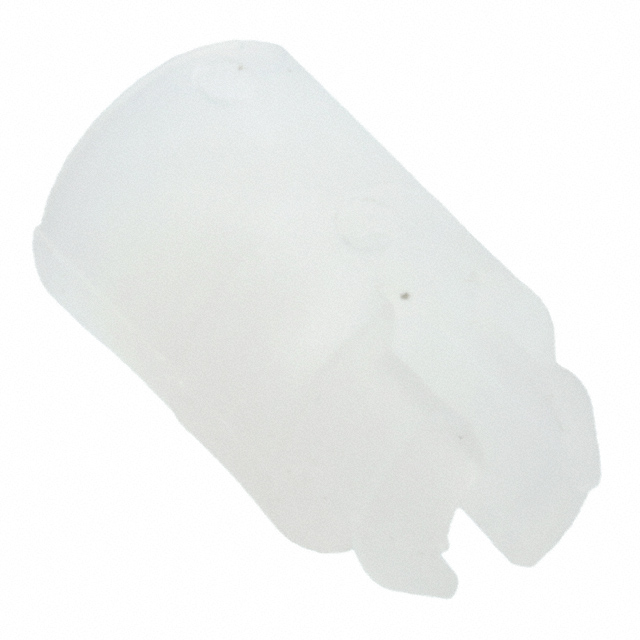

Essentra Components SSRS4-5-01	0.187 in	4.75 mm	3/16	0.438 in	0.4375 in	11.13 mm	0.1875 in	0.187 in	4.75 mm	Stackable	Screw Mount	0.313 in	0.3125 in	7.95 mm	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Lock

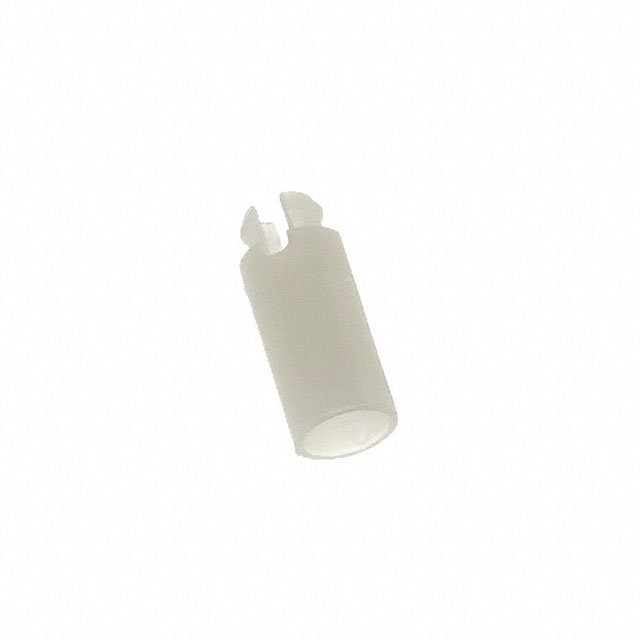

Essentra Components SSRS4-8-01	0.187 in	4.75 mm	3/16				0.1875 in	0.187 in	4.75 mm	Stackable	Resting Mount	0.5 in	0.5 in	12.7 mm	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Lock	0.626 in	15.9 mm
Essentra Components SSRS4-6-01	0.187 in	4.75 mm	3/16				0.1875 in	0.187 in	4.75 mm	Stackable	Resting Mount	0.375 in	0.375 "	9.53 mm	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Lock	0.5 in	12.7 mm	1/2

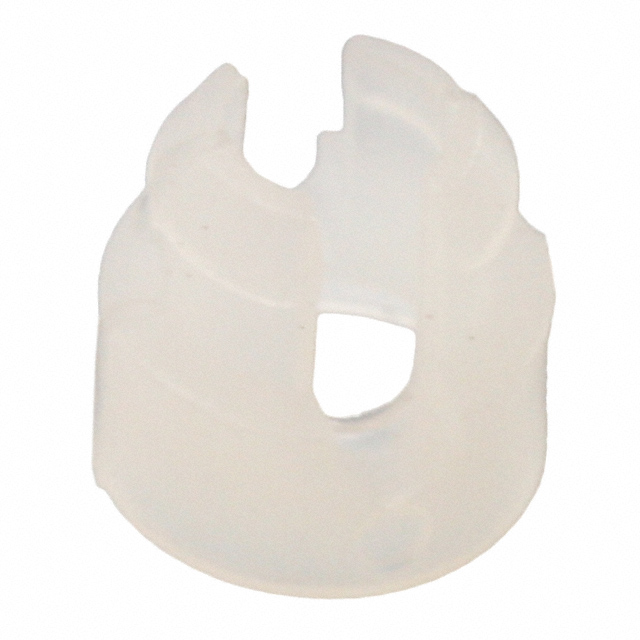

Essentra Components SSRS4-2-01	0.187 in	4.75 mm	3/16				0.1875 in	0.187 in	4.75 mm	Stackable	Screw Mount	0.125 in	0.125 in	3.18 mm	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Lock	0.252 in	6.4 mm
