A21CSP Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 40A 24V
| Part | Contact Material | Coil Power | Coil Resistance | Release Time | Coil Voltage | Switching Voltage [Max] | Must Release Voltage | Contact Form | Coil Current | Mounting Type | Must Operate Voltage | Contact Rating (Current) | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Features | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

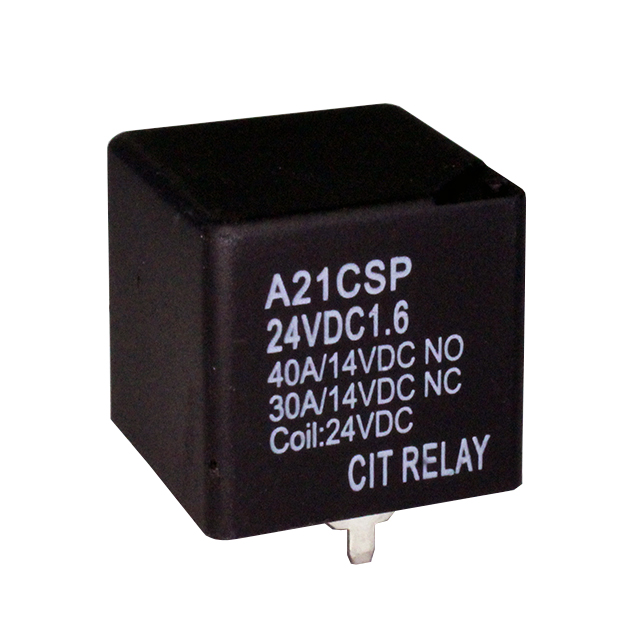

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 360 Ohms | 5 ms | 24 VDC | 75 VDC | 2.4 VDC | SPDT (1 Form C) | 66.7 mA | Through Hole | 16.8 VDC | 40 A | Non Latching | 125 °C | -40 C | PC Pin | Sealed - Fully | 7 ms |

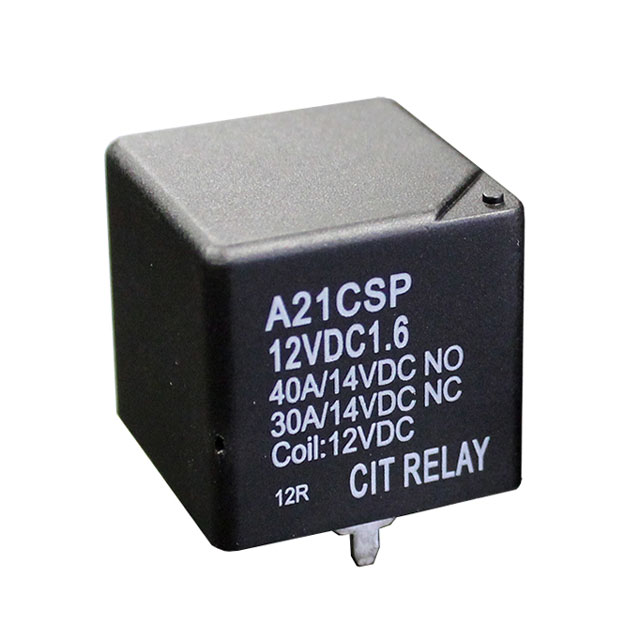

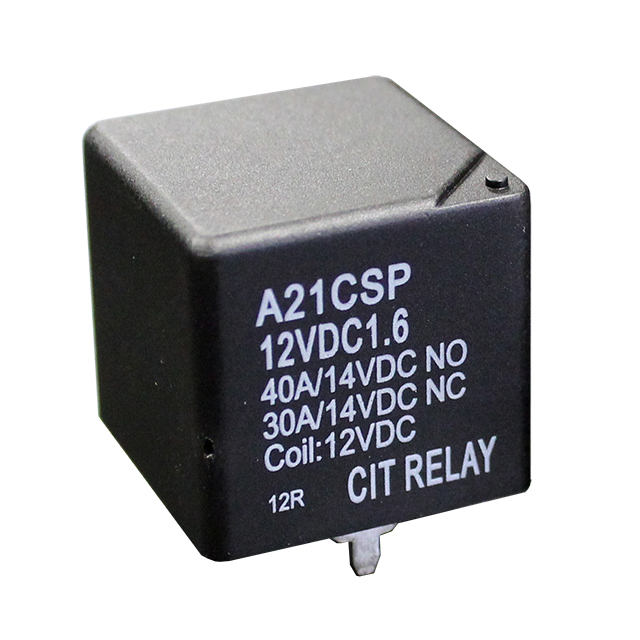

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 90 Ohms | 5 ms | 12 VDC | 75 VDC | 1.2 VDC | SPDT (1 Form C) | 133.3 mA | Through Hole | 8.4 VDC | 40 A | Non Latching | 125 °C | -40 C | PC Pin | Resistor Sealed - Fully | 7 ms |
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 90 Ohms | 5 ms | 12 VDC | 75 VDC | 1.2 VDC | SPDT (1 Form C) | 133.3 mA | Through Hole | 8.4 VDC | 40 A | Non Latching | 125 °C | -40 C | PC Pin | Sealed - Fully | 7 ms |
