M2024ES Series

Catalog

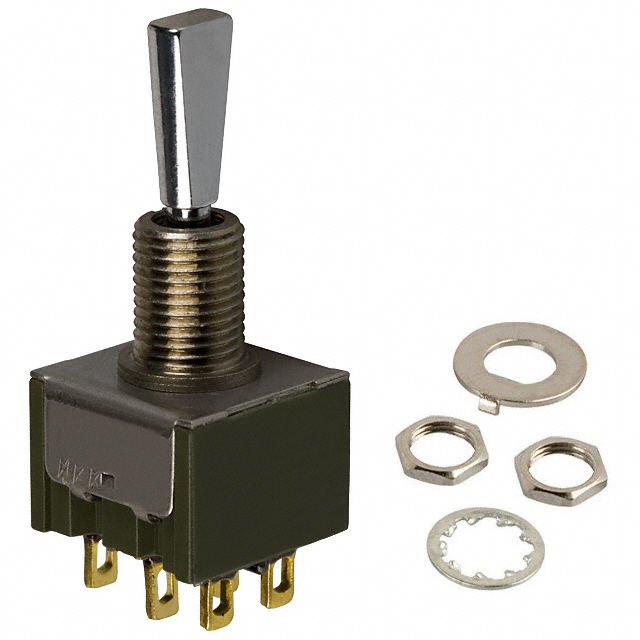

SWITCH TOGGLE SP3T 6A 125V

Part	Actuator Material	Electrical Life	Switch Function	Actuator Type	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Circuit	Current Rating (Amps)	Voltage Rating - DC	Features	Mounting Type	Voltage Rating - AC	Bushing Thread	Termination Style
NKK Switches M2024ES1W01/3	Brass	25000 Steps	On-On-On	Flatted	11.4 mm	6.5 mm	85 °C	-30 ░C	Non-Illuminated	SP3T	3 A 6 A	30 V	Jumper needed to achieve triple throw	Panel Mount	125 V	1/4-40	Solder Lug
NKK Switches M2024ES1W01	Brass Chrome Plated	25000 Steps	On-On-On	Flatted	11.4 mm	6.5 mm	85 °C	-30 ░C	Non-Illuminated	SP3T	3 A 6 A	30 V	Jumper needed to achieve triple throw	Panel Mount	125 V	1/4-40	Solder Lug
NKK Switches M2024ES1G01	Brass Chrome Plated	50000 Cycles	On-On-On	Flatted	11.4 mm	6.5 mm	85 °C	-30 ░C	Non-Illuminated	SP3T	0.4 VA	28 V	Jumper needed to achieve triple throw	Panel Mount	28 V	1/4-40	Solder Lug
