746-070 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 70POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Type	Pitch	Pitch	Contact Finish	Number of Positions	Number of Positions/Bay/Row	Mounting Type	Card Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Color	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Termination	Read Out
EDAC Inc. 746-070-527-606	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Dual
EDAC Inc. 746-070-545-201	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Dual
EDAC Inc. 746-070-527-601	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Dual
EDAC Inc. 746-070-520-206	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Dual
EDAC Inc. 746-070-553-601	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Dual
EDAC Inc. 746-070-527-206	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Dual

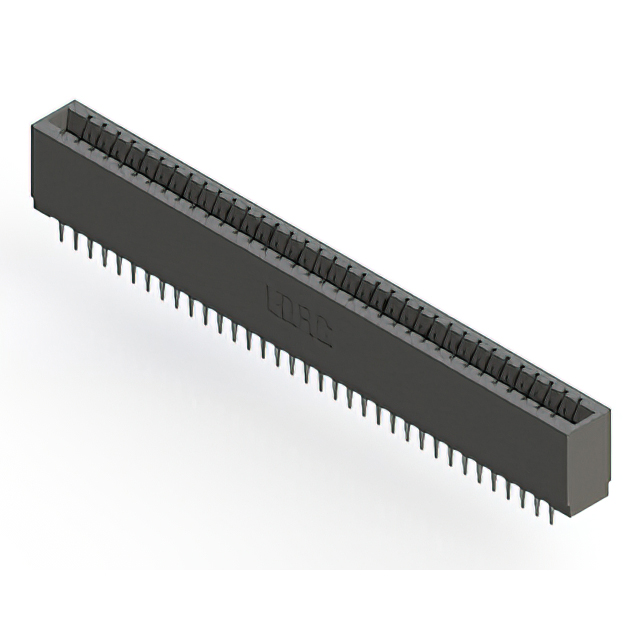

EDAC Inc. 746-070-520-601	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit	Dual
EDAC Inc. 746-070-553-201	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Dual
EDAC Inc. 746-070-540-206	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Dual
EDAC Inc. 746-070-541-201	Polyester Thermoplastic	2	Cantilever	3.18 mm	0.125 in	Gold	70	35	Through Hole	Non Specified - Dual Edge	30 Áin	0.76 Ám	2	Female	-40 C	105 ░C	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	Press-Fit Wire Wrap	Dual
