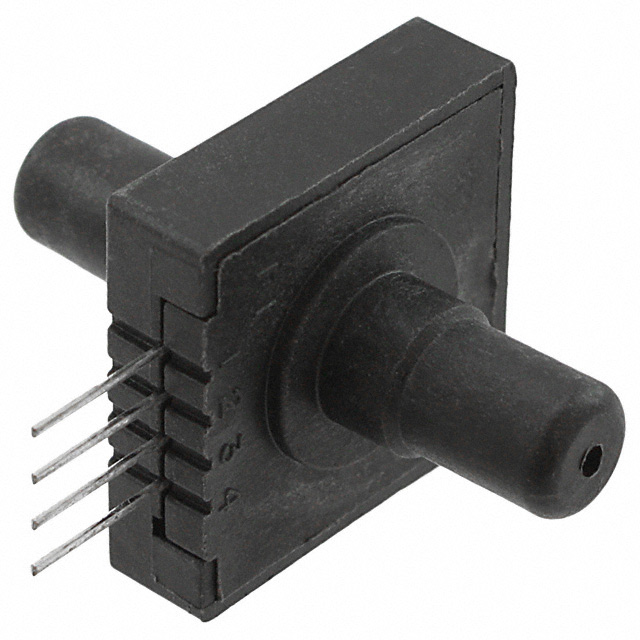

176PC07 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SENSOR 0.25PSID 0.28" .028V
| Part | Pressure Type | Port Size | Port Size | Port Size | Operating Pressure | Operating Pressure | Applications | Package / Case | Port Style | Maximum Pressure | Maximum Pressure | Accuracy | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Termination Style | Output [Min] | Output [Max] | Output | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Differential | Dual Male Tube | 0.28 in | 7.11 mm | 0.25 PSI | 1.74 kPa | Board Mount | 4-SIP Module | Barbless | 5.06 PSI | 34.88 kPa | 3 % | 85 °C | -40 C | Temperature Compensated | 10 VDC | 16 V | Through Hole | PC Pin | 0 mV | 28 mV | 10V | Wheatstone Bridge |
