ALCOSWITCH TRD Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TRD13D10WLLR25=SP 3A ON ON BLA

Part	Mechanical Life	Electrical Life	Circuit	Current Rating (Amps)	Illumination Voltage (Nominal)	Termination Style	Color - Actuator/Cap	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Mounting Type	Illumination Type, Color	Voltage Rating - AC	Actuator Type	Actuator Marking	Voltage Rating - DC
TE Connectivity AMP Connectors TRD13D10WLLR25	100000 Cycles	20000 Steps	SPDT	3 A	2.8 VDC	Solder Lug	Black	On-On	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut	Green/Red LED	125 V	Concave (Curved) - Illuminated	No Marking

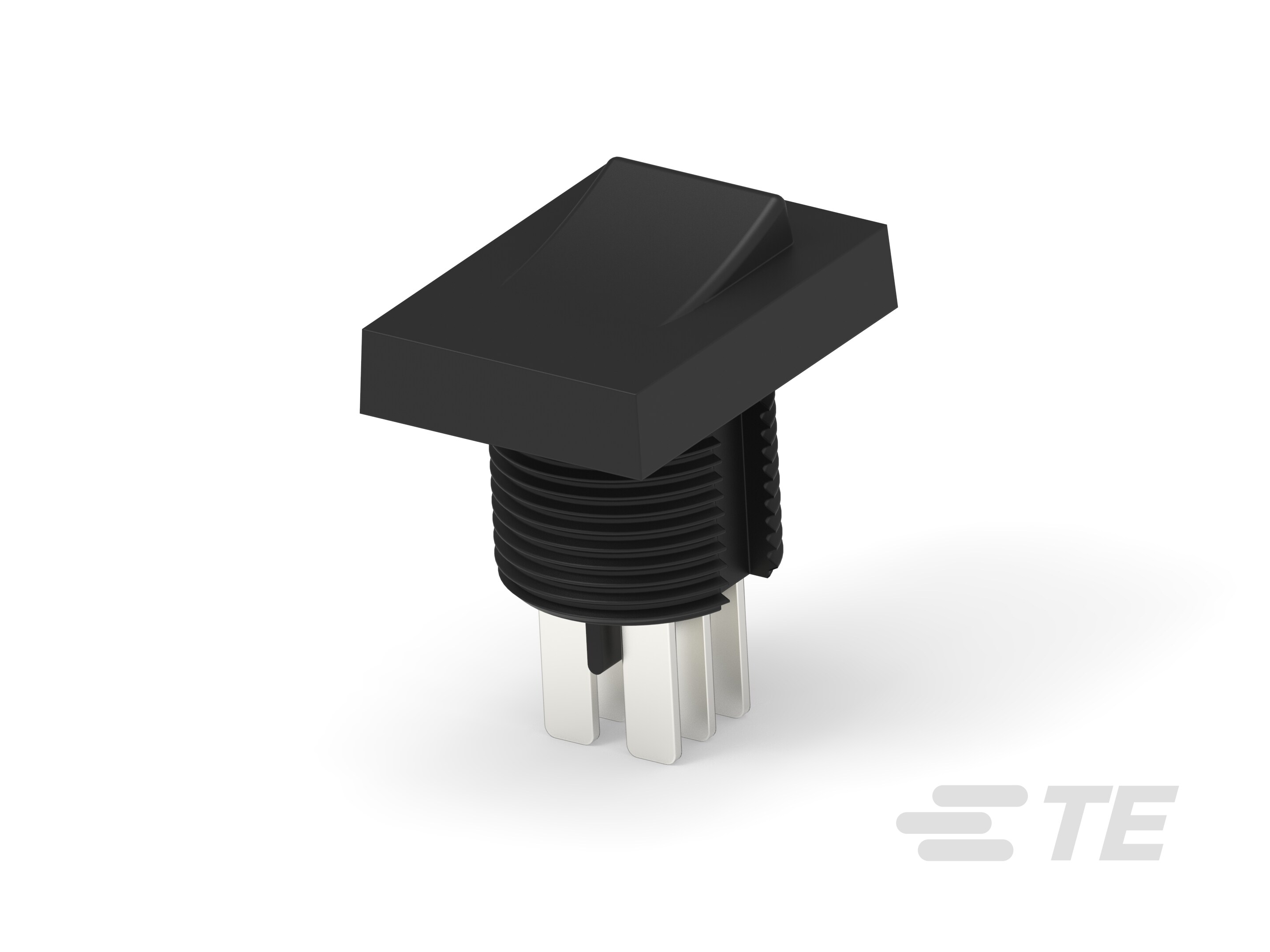

TE Connectivity AMP Connectors TRD23N10QC	100000 Cycles	20000 Steps	DPDT	3 A		Quick Connect - 0.110" (2.8mm)	Black	On-On	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut		125 V	Concave (Curved)	No Marking
TE Connectivity AMP Connectors TRD13D10QC04	100000 Cycles	20000 Steps	SPDT	3 A		Quick Connect - 0.110" (2.8mm)	Black	On-On	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut		125 V	Concave (Curved)	No Marking
TE Connectivity AMP Connectors TRD21S10WL	50000 Cycles	60000 Cycles	DPDT	0.4 VA		Solder Lug	Black	Mom-Off-Mom	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut		20 V	Concave (Curved)	No Marking	20 V

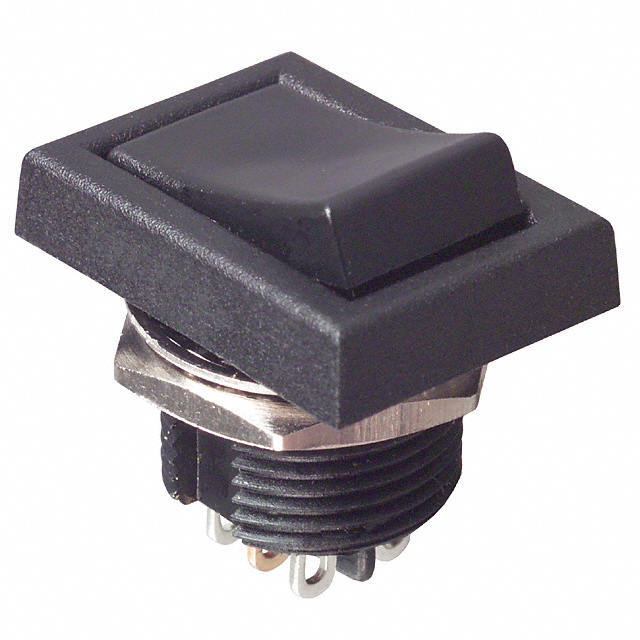

TE Connectivity AMP Connectors TRD23N10WL	100000 Cycles	20000 Steps	DPDT	3 A		Solder Lug	Black	On-On	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut		125 V	Concave (Curved)	No Marking

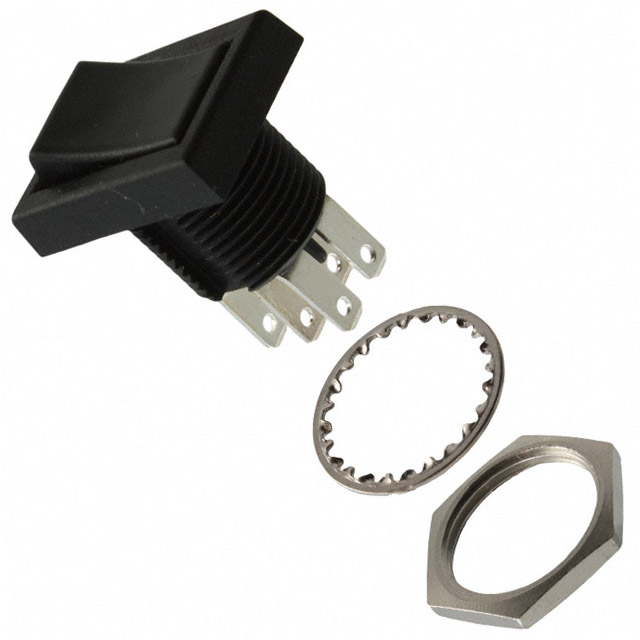

TE Connectivity AMP Connectors TRD23N10QC04	100000 Cycles	20000 Steps	DPDT	3 A		Quick Connect - 0.110" (2.8mm)	Black	On-On	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut		125 V	Concave (Curved)	No Marking
TE Connectivity AMP Connectors TRD13F10WL	100000 Cycles	60000 Cycles	SPDT	3 A		Solder Lug	Black	On-Mom	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut		125 V	Concave (Curved)	No Marking
TE Connectivity AMP Connectors TRD13F10QCLR204			SPDT	3 A	2.8 VDC	Quick Connect - 0.110" (2.8mm)	Black	On-Mom	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut	LED Red	125 V	Concave (Curved) - Illuminated	No Marking

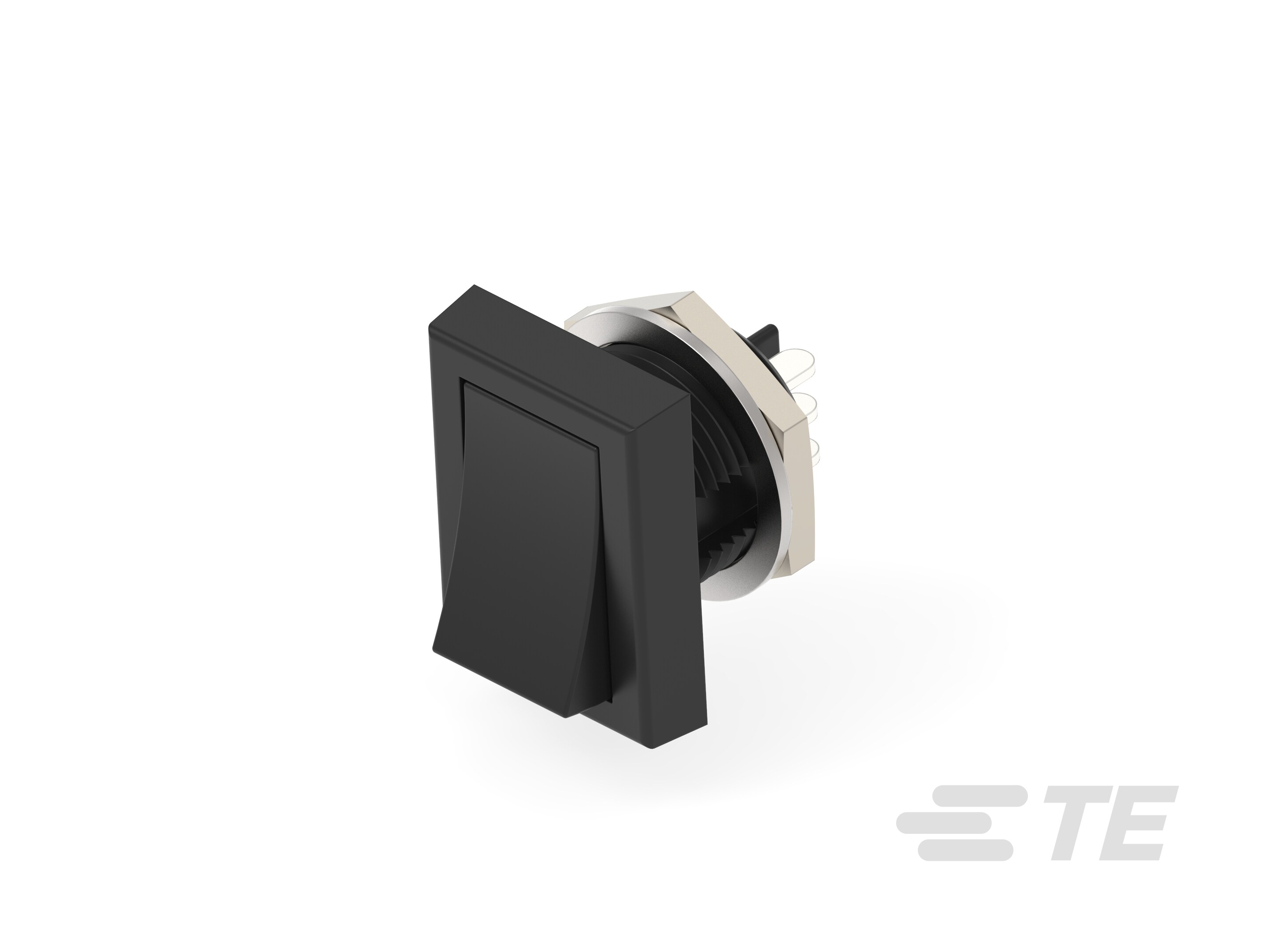

TE Connectivity AMP Connectors TRD13D10WL04	100000 Cycles	20000 Steps	SPDT	3 A		Solder Lug	Black	On-On	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut		125 V	Concave (Curved)	No Marking
TE Connectivity AMP Connectors TRD13G10WL04			SPDT	3 A		Solder Lug	Black	Mom-Off-Mom	80 °C	-20 ░C	11.9 mm	Panel Mount Threaded Body with Nut		125 V	Concave (Curved)	No Marking
