8955-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

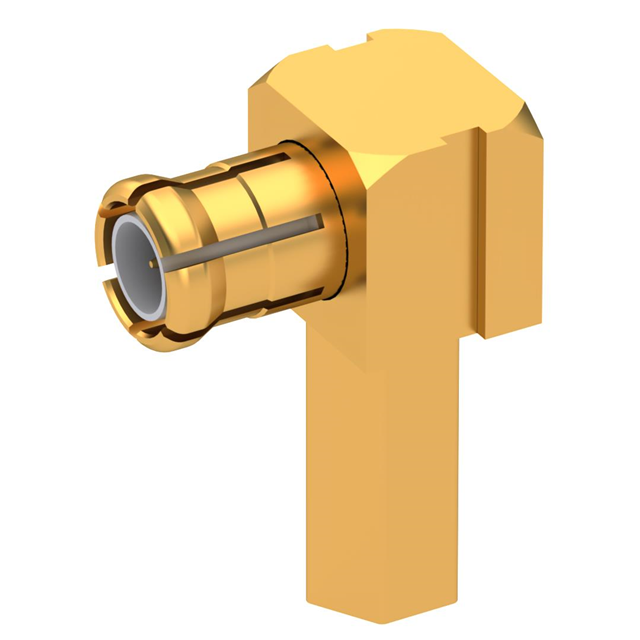

MCX M RA NA CR 2.6/50S
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Center Contact Plating | Dielectric Material | Body Material | Mating Cycles | Impedance | Number of Ports | Cable Group | Cable Group | Fastening Type | Mounting Type | Connector Style | Frequency - Max [Max] | Shield Termination | Contact Termination | Center Contact Material | Housing Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 155 C | -55 C | Gold | Gold | Polytetrafluoroethylene (PTFE) | Beryllium Copper Brass | 500 | 50 Ohms | 1 | RG-174 | 316 | Snap-On | Free Hanging (In-Line) Right Angle | MCX | 6000 MHz | Crimp | Crimp | Brass | Gold | Plug Male Pin |
