306-013 Series

Manufacturer: EDAC Inc.

Catalog

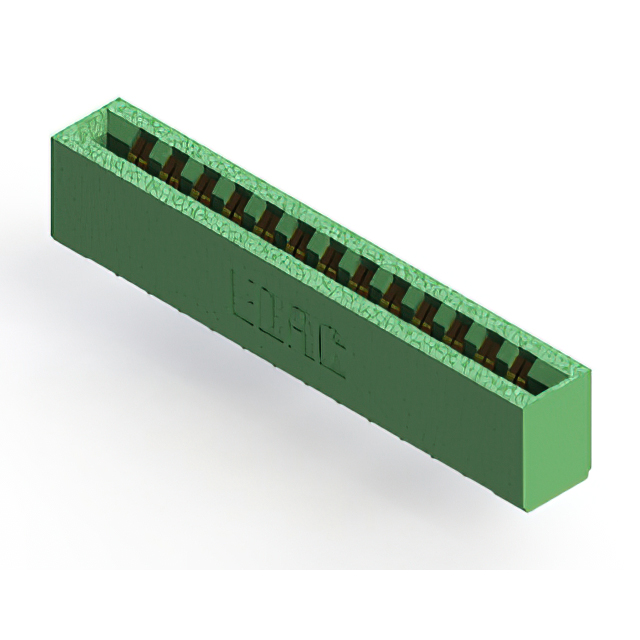

CONN EDGE DUAL FMALE 26POS 0.156

Part	Termination Rows	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Termination	Number of Rows [custom]	Features	Gender	Read Out	Flange Feature	Contact Type	Number of Positions/Bay/Row	Mounting Type	Card Type	Contact Finish	Contact Material	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-013-521-168	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2	Card Guides	Female	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	13	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-013-521-101	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2		Female	Dual		Cantilever	13	Through Hole	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-013-421-104	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2		Female	Dual	Flush Mount Top Opening Unthreaded	Cantilever	13	Panel Mount Through Hole	Non Specified - Dual Edge	Tin	Copper Alloy	3.96 mm	0.156 in			0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm
EDAC Inc. 306-013-520-104	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2		Female	Dual	Flush Mount Top Opening Unthreaded	Cantilever	13	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm
EDAC Inc. 306-013-520-178	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2	Card Guides	Female	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	13	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-013-520-103	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2		Female	Dual	Floating Bobbin Flush Mount	Cantilever	13	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm
EDAC Inc. 306-013-521-108	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2		Female	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	13	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-013-500-178	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder Eyelet(s)	2	Card Guides	Female	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	13	Panel Mount	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-013-521-178	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2	Card Guides	Female	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	13	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 306-013-520-107	1	Polyester Thermoplastic	-40 C	105 ░C	26	Green	Solder	2		Female	Dual	Flush Mount M3 Threaded Insert Top Opening	Cantilever	13	Panel Mount Through Hole	Non Specified - Dual Edge	Gold	Copper Alloy	3.96 mm	0.156 in	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm
