LMZ31707 Series

2.95V to 17V, 7A Step-Down Power Module with Current Sharing in 10x10x4.3mm QFN Package

Catalog

2.95V to 17V, 7A Step-Down Power Module with Current Sharing in 10x10x4.3mm QFN Package

Part	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Outputs and Type	Outputs and Type	Main Purpose	Board Type	Voltage - Output	Supplied Contents	Utilized IC / Part	Current - Output	Supplier Device Package	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Control Features	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Input (Max) [Max]	Applications	Type	Mounting Type	Package / Case
Texas Instruments LMZ31707EVM-002	17 V	2.95 V	Buck	Non-Isolated	1	DC/DC Step Down	Fully Populated	0.6 V 0.9 V 1.2 V 1.8 V 2.5 V 3.3 V 5 V	Board(s)	LMZ31707	7 A

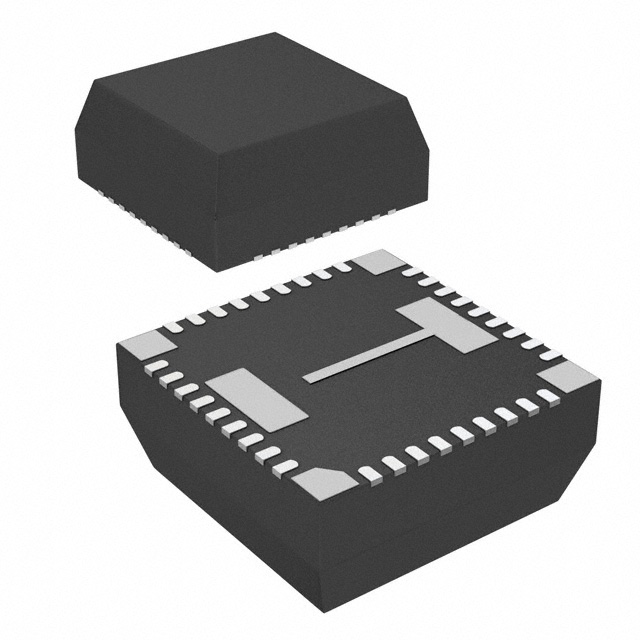

Texas Instruments LMZ31707RVQT												42-B3QFN (10x10)	5.5 V	0.6 V	1	Active High Enable	7 A	10.2 mm	0.4 in	4.4 mm	10.2 mm	0.17 in	0.4 in	95 %	2.95 V	85 °C	-40 °C	OCP OTP UVLO	17 V	ITE (Commercial)	Non-Isolated PoL Module	Surface Mount	42-BQFN Module

Catalog

2.95V to 17V, 7A Step-Down Power Module with Current Sharing in 10x10x4.3mm QFN Package

Key Features

• Complete integrated power solution allowssmall footprint, low-profile design10-mm × 10-mm × 4.3-mm packagePin compatible with LMZ31710 and LMZ31704Efficiencies up to 95%Eco-mode™ / light load efficiency (LLE)Wide-output voltage adjust0.6 V to 5.5 V, with 1% reference accuracySupports parallel operation for higher currentOptional split power rail allowsinput voltage down to 2.95 VAdjustable switching frequency(200 kHz to 1.2 MHz)Synchronizes to an external clockProvides 180° out-of-phase clock signalAdjustable slow startOutput voltage sequencing / trackingPower good outputProgrammable undervoltage lockout (UVLO)Overcurrent and overtemperature protectionPre-Bias output start-upOperating temperature range: –40°C to +85°CEnhanced thermal performance: 13.3°C/WMeets EN55022 Class B emissionsIntegrated shielded inductorCreate a custom design using the LMZ31707 with theWEBENCH®Power DesignerComplete integrated power solution allowssmall footprint, low-profile design10-mm × 10-mm × 4.3-mm packagePin compatible with LMZ31710 and LMZ31704Efficiencies up to 95%Eco-mode™ / light load efficiency (LLE)Wide-output voltage adjust0.6 V to 5.5 V, with 1% reference accuracySupports parallel operation for higher currentOptional split power rail allowsinput voltage down to 2.95 VAdjustable switching frequency(200 kHz to 1.2 MHz)Synchronizes to an external clockProvides 180° out-of-phase clock signalAdjustable slow startOutput voltage sequencing / trackingPower good outputProgrammable undervoltage lockout (UVLO)Overcurrent and overtemperature protectionPre-Bias output start-upOperating temperature range: –40°C to +85°CEnhanced thermal performance: 13.3°C/WMeets EN55022 Class B emissionsIntegrated shielded inductorCreate a custom design using the LMZ31707 with theWEBENCH®Power Designer

Description

The LMZ31707 SIMPLE SWITCHER®power module is an easy-to-use integrated power solution that combines a 7-A DC-DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as three external components and eliminates the loop compensation and magnetics part selection process. The 10-mm × 10-mm × 4.3-mm QFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design. Achieves greater than 95% efficiency and excellent power dissipation capability with a thermal impedance of 13.3°C/W. The LMZ31707 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems. Advanced packaging technology affords a robust and reliable power solution compatible with standard QFN mounting and testing techniques. The LMZ31707 SIMPLE SWITCHER®power module is an easy-to-use integrated power solution that combines a 7-A DC-DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as three external components and eliminates the loop compensation and magnetics part selection process. The 10-mm × 10-mm × 4.3-mm QFN package is easy to solder onto a printed circuit board and allows a compact point-of-load design. Achieves greater than 95% efficiency and excellent power dissipation capability with a thermal impedance of 13.3°C/W. The LMZ31707 offers the flexibility and the feature-set of a discrete point-of-load design and is ideal for powering a wide range of ICs and systems. Advanced packaging technology affords a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
