MS168 Series

Catalog

RF SHIELD 0.547X0.677" SNAP FIT

Part	Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Ventilation	Width - Overall [x]	Width - Overall [x]	Height - Overall [z]	Height - Overall [z]	Height - Overall	Height - Overall	Width - Overall [y]	Width - Overall [y]

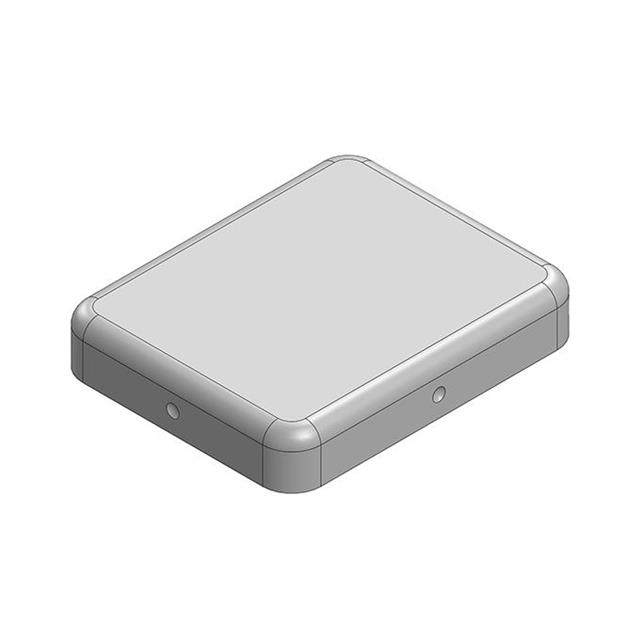

Masach Tech Ltd. MS168-10C-NS	Cover	Snap Fit	17.2 mm	0.677 "	Non-Vented	13.9 mm	0.547 in	0.118 in	3 mm

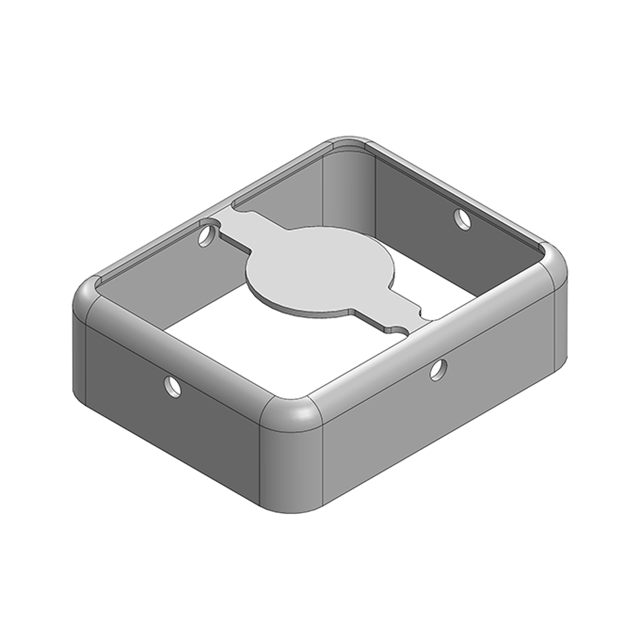

Masach Tech Ltd. MS168-10F	Frame	Solder	16.8 mm	0.661 "						0.197 in	5 mm	13.5 mm	0.531 in

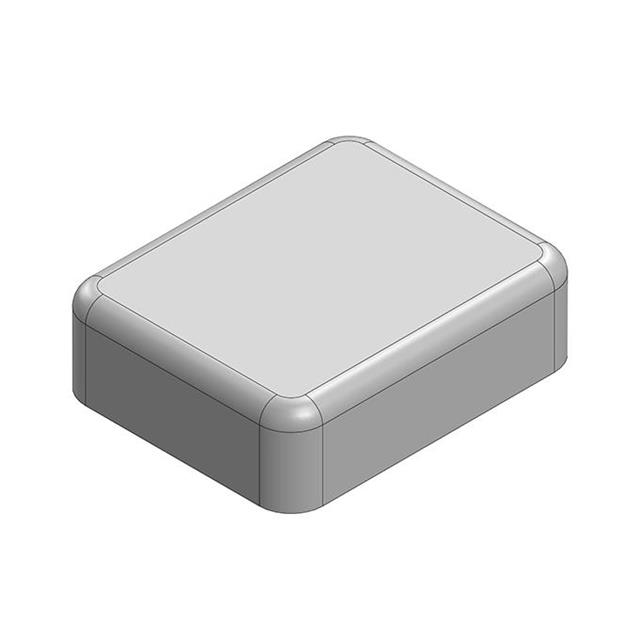

Masach Tech Ltd. MS168-10S-NS	Shield 1-Piece	Solder	16.8 mm	0.661 "	Non-Vented					0.197 in	5 mm	13.5 mm	0.531 in
Masach Tech Ltd. MS168-10F-NS	Frame	Solder	16.8 mm	0.661 "						0.197 in	5 mm	13.5 mm	0.531 in
Masach Tech Ltd. MS168-10C	Cover	Snap Fit	17.2 mm	0.677 "	Non-Vented	13.9 mm	0.547 in	0.118 in	3 mm
