87827 Series

Catalog

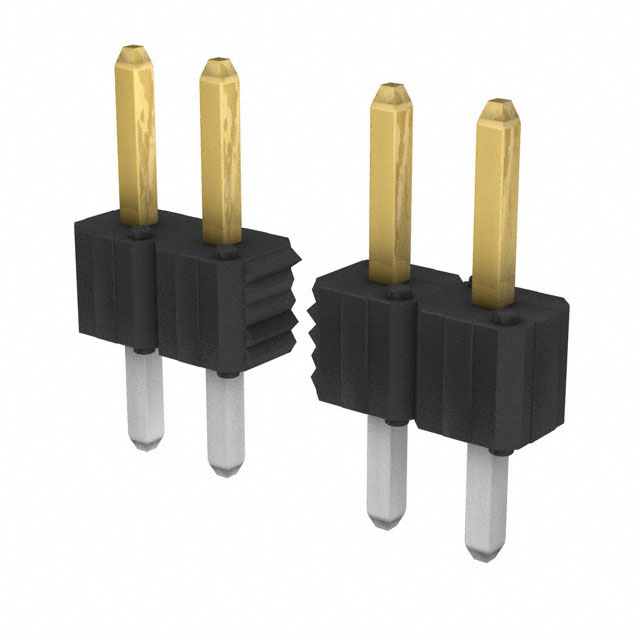

CONN HEADER VERT 1POS

Part	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Material	Insulation Height	Insulation Height	Mounting Type	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Number of Positions Loaded	Termination	Material Flammability Rating	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Post

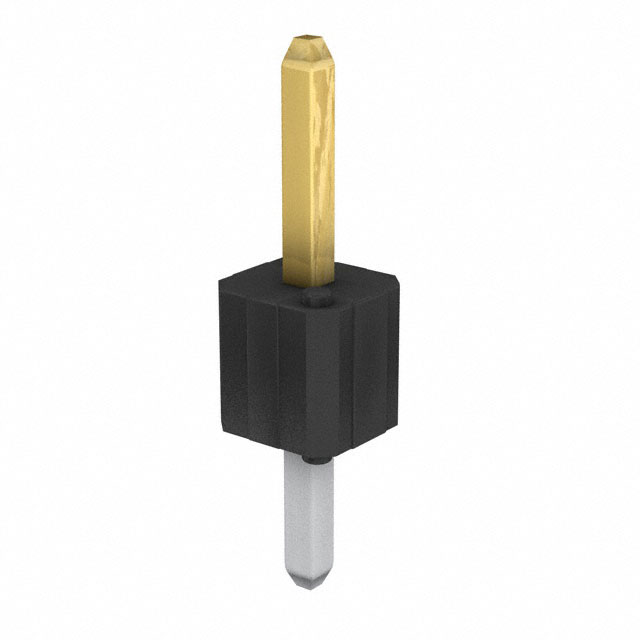

Amphenol ICC (FCI) 87827-101HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	30 Áin	0.76 Ám	1	All	Solder	UL94 V-0	Gold or Gold GXT™	0.38 in	9.65 mm	Black	1
Amphenol ICC (FCI) 87827-114HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	30 Áin	0.76 Ám	1	All	Solder	UL94 V-0	Gold or Gold GXT™	0.38 in	9.65 mm	Black	14	0.1 in	2.54 mm
Amphenol ICC (FCI) 87827-129HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	30 Áin	0.76 Ám	1	All	Solder	UL94 V-0	Gold or Gold GXT™	0.38 in	9.65 mm	Black	29	0.1 in	2.54 mm
Amphenol ICC (FCI) 87827-236HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	15 µin	0.38 µm	1	All	Solder	UL94 V-0	Gold or Gold GXT™	0.38 in	9.65 mm	Black	36	0.1 in	2.54 mm

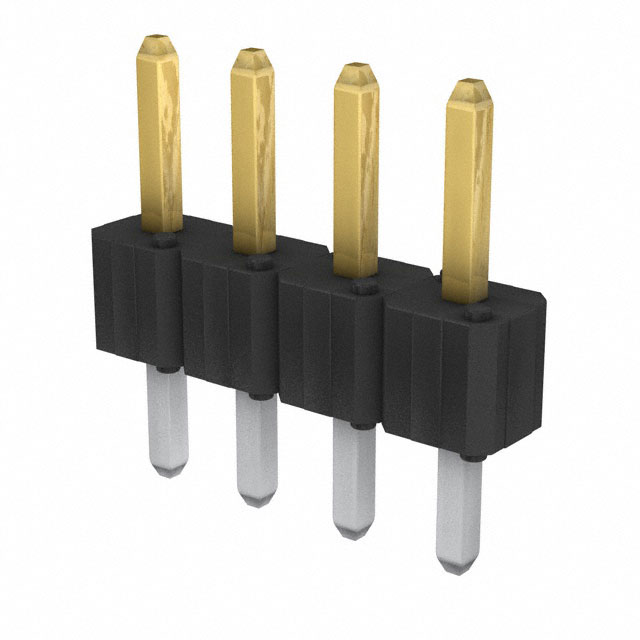

Amphenol ICC (FCI) 87827-104HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	30 Áin	0.76 Ám	1	All	Solder	UL94 V-0	Gold or Gold GXT™	0.38 in	9.65 mm	Black	4	0.1 in	2.54 mm
Amphenol ICC (FCI) 87827-417HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	100 çin	2.54 çm	1	All	Solder	UL94 V-0		0.38 in	9.65 mm	Black		0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 87827-125HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	30 Áin	0.76 Ám	1	All	Solder	UL94 V-0	Gold or Gold GXT™	0.38 in	9.65 mm	Black		0.1 in	2.54 mm
Amphenol ICC (FCI) 87827-410HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	100 çin	2.54 çm	1	All	Solder	UL94 V-0		0.38 in	9.65 mm	Black	10	0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 87827-403HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	100 çin	2.54 çm	1	All	Solder	UL94 V-0		0.38 in	9.65 mm	Black		0.1 in	2.54 mm	Tin
Amphenol ICC (FCI) 87827-121HLF	-65 ░C	130 °C	Push-Pull	Phosphor Bronze	0.1 in	2.54 mm	Through Hole	0.16 in	4.06 mm	Header	Square	0.12 in	3.05 mm	3 A	Male Pin	Unshrouded	30 Áin	0.76 Ám	1	All	Solder	UL94 V-0	Gold or Gold GXT™	0.38 in	9.65 mm	Black	21	0.1 in	2.54 mm
