SSL-LX2577 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K

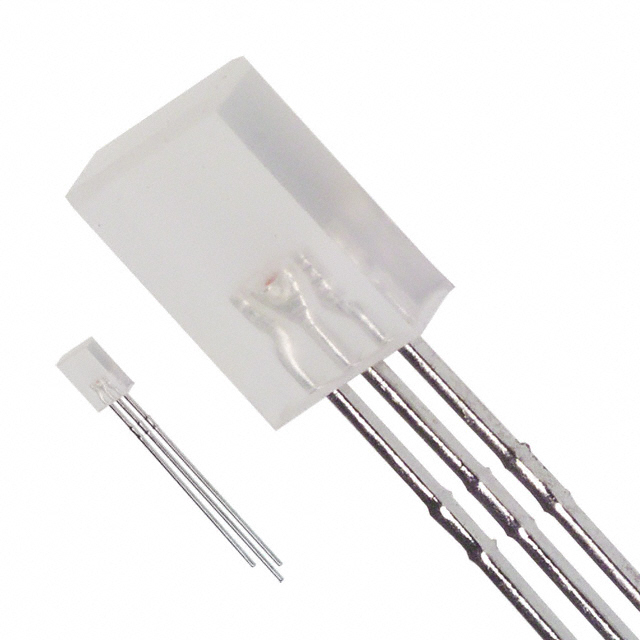

LED GRN/RED DIFF RECT 2X5MM T/H
| Part | Package / Case | Current - Test [custom] | Current - Test [custom] | Lens Transparency | Supplier Device Package | Lens Size [y] | Lens Size [x] | Lens Color | Wavelength - Peak | Millicandela Rating | Height (Max) [Max] [z] | Mounting Type | Lens Style | Viewing Angle | Color | Voltage - Forward (Vf) (Typ) | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Radial - 3 Leads | 20 mA | 20 mA | Diffused | Rectangular 2mmx5mm | 2 mm | 5 mm | White | 565 nm 635 nm | 10 mcd 10 mcd | 7 mm | Through Hole | Rectangle with Flat Top | 90 ° | Green Red | 2 V 2.2 V | Common Cathode |
