MMPI012 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

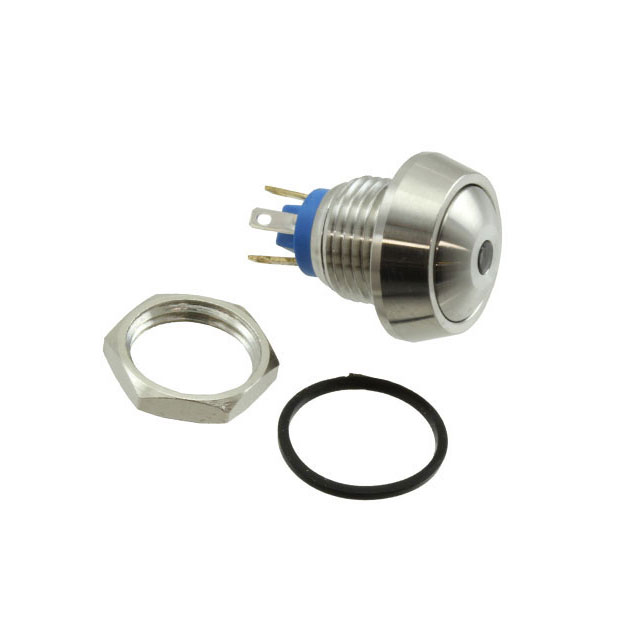

SWITCH PUSH BUTTON N.O. SPST DOME 2A 36VDC MOMENTARY PANEL MOUNT SOLDER TAB
| Part | Electrical Life | Mechanical Life | Voltage Rating - DC | Color - Actuator/Cap | Mounting Type | Illumination Type, Color | Actuator Type | Termination Style | Switch Function | Ingress Protection | Type | Circuit | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Actuator Marking | Panel Cutout Dimensions [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 200000 Cycles | 1000000 Cycles | 36 VDC | Black | Panel Mount Front | LED Red | Button Domed Round | Solder Lug | Off-Mom | IP65 - Dust Tight Water Resistant | Illuminated Standard | SPST-NO | 2 A | 55 °C | -25 °C | 12 VDC | No Marking | 12 mm | |
 BULGIN LIMITED | 200000 Cycles | 1000000 Cycles | 36 VDC | Silver | Panel Mount Front | LED Red | Button Domed Round | Solder Lug | Off-Mom | IP65 - Dust Tight Water Resistant | Illuminated Standard | SPST-NO | 2 A | 55 °C | -25 °C | 12 VDC | No Marking | 12 mm | |
 BULGIN LIMITED | 200000 Cycles | 1000000 Cycles | 36 VDC | Silver | Panel Mount Front | LED Red | Button Domed Round | Solder Lug | Off-Mom | IP65 - Dust Tight Water Resistant | Illuminated Standard | SPST-NO | 2 A | 55 °C | -25 °C | 12 VDC | No Marking | 12 mm | Stainless Steel |
