VX7803 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 3.3W
| Part | Current - Output (Max) [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Number of Outputs | Power (Watts) | Package / Case | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Voltage - Output 1 | Mounting Type | Type | Applications | Standard Number | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

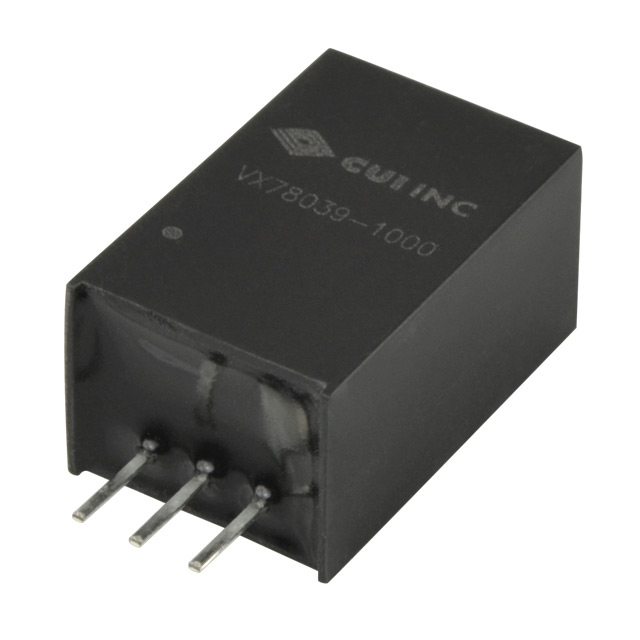

 CUI Inc. | 1 A | 11.5 mm | 0.35 in | 0.45 in | 0.69 in | 9 mm | 17.5 mm | CB Scheme EN IEC UL | 1 | 3.3 W | 3-SIP Module | 90 % | -40 °C | 85 °C | 36 V | 6 V | 3.3 V | Right Angle Through Hole | Non-Isolated PoL Module | ITE (Commercial) | 55024 55032 Class A 60950-1 | ||

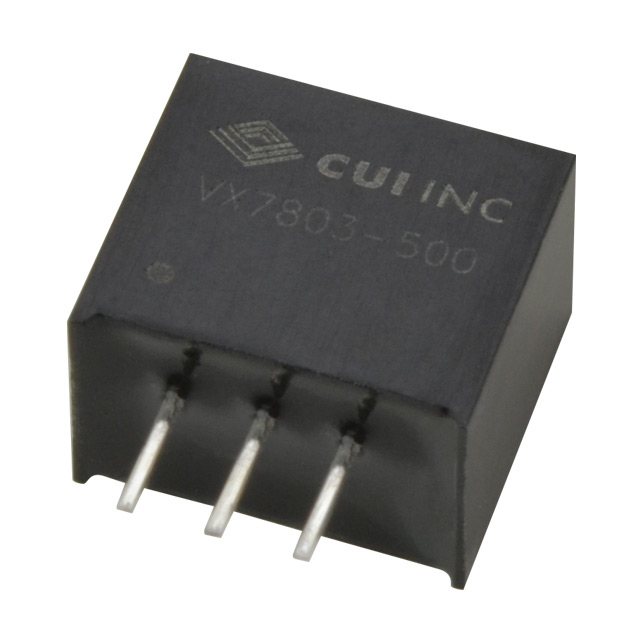

 CUI Inc. | 500 mA | 0.4 " | 0.3 " | 0.46 in | 11.6 mm | CB Scheme EN IEC UL | 1 | 1.65 W | 3-SIP Module | 86 % | -40 °C | 85 °C | 36 V | 4.75 V | 3.3 V | Through Hole | Linear Regulator Replacement | ITE (Commercial) | 55024 55032 Class A 60950-1 | 10.2 mm | 7.6 mm | ||
 CUI Inc. | 1 A | 9 mm | 0.69 in | 0.35 in | 0.45 " | 17.5 mm | 11.5 mm | CB Scheme EN IEC UL | 1 | 3.3 W | 3-SIP Module | 90 % | -40 °C | 85 °C | 36 V | 6 V | 3.3 V | Through Hole | Linear Regulator Replacement | ITE (Commercial) | 55024 55032 Class A 60950-1 |
