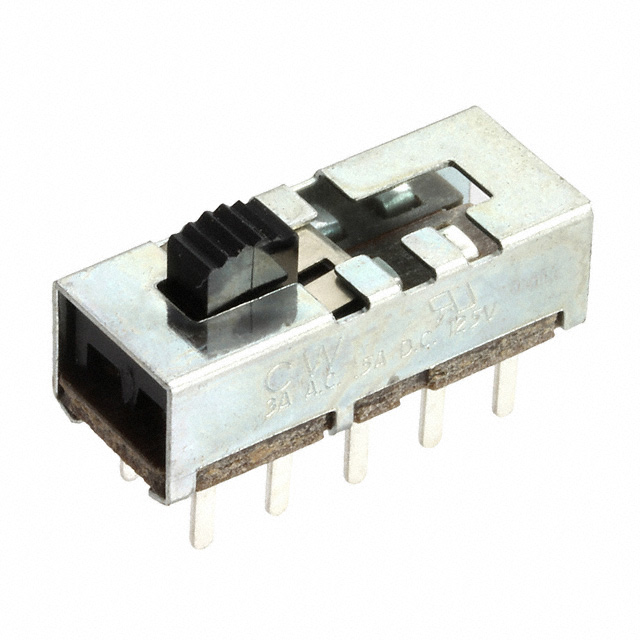

G-141S Series

Catalog

SWITCH SLIDE DP4T 500MA 125V

Part	Switch Travel	Mechanical Life	Electrical Life	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Voltage Rating - DC	Mounting Type	Contact Finish	Contact Material	Actuator Length [x]	Termination Style	Voltage Rating - AC	Current Rating (Amps)	Contact Timing	Switch Function
CW Industries G-141S-0000	3.94 mm	10000 Steps	6000 Cycles	Nylon 6/6 Polyamide (PA66)	-10 °C	104 °C	DP4T	Standard	125 VDC	Panel Mount	Silver	Copper	5.08 mm	Solder Lug	125 V	500 mA	Not Specified	On-On-On-On
CW Industries G-141S-0070	3.94 mm	10000 Steps	6000 Cycles	Nylon 6/6 Polyamide (PA66)	-10 °C	104 °C	DP4T	Standard	125 VDC	Panel Mount	Silver	Copper	5.08 mm	PC Pin	125 V	500 mA	Not Specified	On-On-On-On
CW Industries G-141S-0060	3.94 mm	10000 Steps	6000 Cycles	Nylon 6/6 Polyamide (PA66)	-10 °C	104 °C	DP4T	Standard	125 VDC	Through Hole	Silver	Copper	5.08 mm	PC Pin	125 V	3 A 500 mA	Not Specified	On-On-On-On
CW Industries G-141S-0019	3.94 mm	10000 Steps	6000 Cycles	Nylon 6/6 Polyamide (PA66)	-10 °C	104 °C	DP4T	Standard	125 VDC	Through Hole	Silver	Copper	5.08 mm	PC Pin	125 V	500 mA	Not Specified	On-On-On-On
CW Industries G-141S-0073	3.94 mm	10000 Steps	6000 Cycles	Nylon 6/6 Polyamide (PA66)	-10 °C	104 °C	DP4T	Standard	125 VDC	Panel Mount	Silver	Copper	3.18 mm	PC Pin	125 V	6 A 500 mA	Not Specified	On-On-On-On
CW Industries G-141S-0069	3.94 mm	10000 Steps	6000 Cycles	Nylon 6/6 Polyamide (PA66)	-10 °C	104 °C	DP4T	Standard	125 VDC	Through Hole	Silver	Copper	3.18 mm	PC Pin	125 V	3 A 500 mA	Not Specified	On-On-On-On
CW Industries G-141S-0001	3.94 mm	10000 Steps	6000 Cycles	Nylon 6/6 Polyamide (PA66)	-10 °C	104 °C	DP4T	Standard	125 VDC	Panel Mount	Silver	Copper	5.08 mm	PC Pin	125 V	500 mA	Not Specified	On-On-On-On
