MS3112E8 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Qualification	Mounting Type	Shielding	Applications	Contact Material	Contact Finish - Mating	Shell Finish	Number of Positions	Mounting Feature	Fastening Type	Connector Type	Shell Size - Insert Width	Shell Size - Insert Length	Insert Material	Shell Material	Color	Primary Material	Orientation	Ingress Protection	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Grade
Amphenol Aerospace Operations MS3112E8-2S	MIL-DTL-26482 Series I	Panel Mount	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	Gold	Cadmium Olive Drab Chromate	2	Flange	Bayonet Lock	Female Sockets Receptacle	2 mm	8 mm	Neoprene	Aluminum	Olive Drab	Metal	N (Normal)	Environment Resistant	Solder Cup	125 °C	-55 °C	Military
Amphenol Aerospace Operations MS3112E8-4SY	MIL-DTL-26482 Series I	Panel Mount	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	Gold	Cadmium Olive Drab Chromate	4	Flange	Bayonet Lock	Female Sockets Receptacle	4 mm	8 mm	Neoprene	Aluminum	Olive Drab	Metal	Y	Environment Resistant	Solder Cup	125 °C	-55 °C	Military

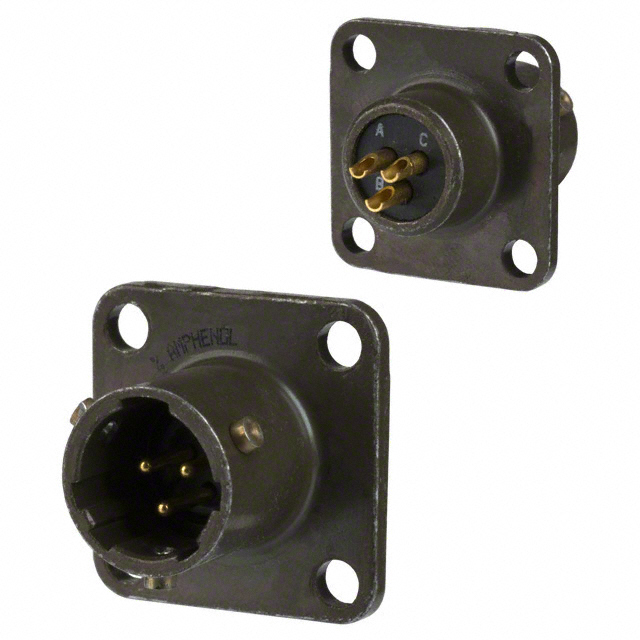

Amphenol Aerospace Operations MS3112E8-3P	MIL-DTL-26482 Series I	Panel Mount	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	Gold	Cadmium Olive Drab Chromate	3	Flange	Bayonet Lock	Male Pins Receptacle	3 mm	8 mm	Neoprene	Aluminum	Olive Drab	Metal	N (Normal)	Environment Resistant	Solder Cup	125 °C	-55 °C	Military
Amphenol Aerospace Operations MS3112E8-3PW
Amphenol Aerospace Operations MS3112E8-2P	MIL-DTL-26482 Series I	Panel Mount	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	Gold	Cadmium Olive Drab Chromate	2	Flange	Bayonet Lock	Male Pins Receptacle	2 mm	8 mm	Neoprene	Aluminum	Olive Drab	Metal	N (Normal)	Environment Resistant	Solder Cup	125 °C	-55 °C	Military

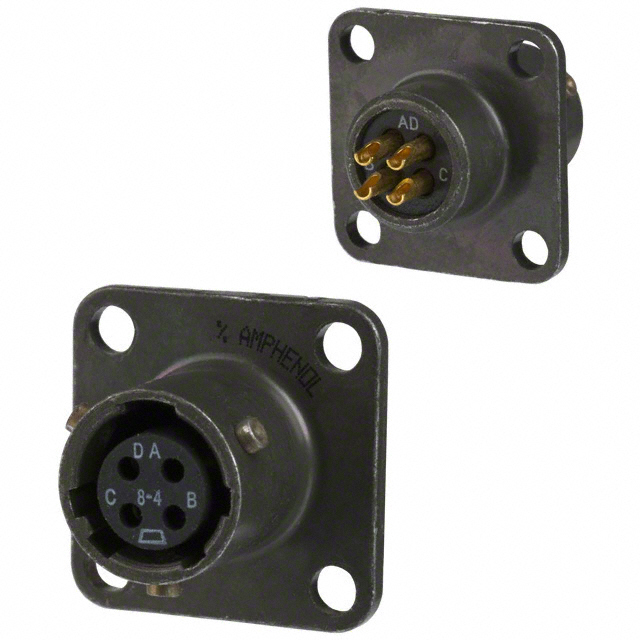

Amphenol Aerospace Operations MS3112E-8-4S	MIL-DTL-26482 Series I	Panel Mount	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	Gold	Cadmium Olive Drab Chromate	4	Flange	Bayonet Lock	Female Sockets Receptacle	4 mm	8 mm	Neoprene	Aluminum	Olive Drab	Metal	N (Normal)	Environment Resistant	Solder Cup	125 °C	-55 °C	Military
Amphenol Aerospace Operations MS3112E8-3P	MIL-DTL-26482 Series I	Panel Mount	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	Gold	Cadmium Olive Drab Chromate	3	Flange	Bayonet Lock	Male Pins Receptacle	3 mm	8 mm	Neoprene	Aluminum	Olive Drab	Metal	N (Normal)	Environment Resistant	Solder Cup	125 °C	-55 °C	Military
Amphenol Aerospace Operations MS3112E8-3S	MIL-DTL-26482 Series I	Panel Mount	Unshielded	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Copper Alloy	Gold	Cadmium Olive Drab Chromate	3	Flange	Bayonet Lock	Female Sockets Receptacle	3 mm	8 mm	Neoprene	Aluminum	Olive Drab	Metal	N (Normal)	Environment Resistant	Solder Cup	125 °C	-55 °C	Military
