726-078 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 78POS 0.125

Part	Termination Rows [custom]	Material - Insulation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Read Out	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Gender	Termination	Contact Type	Number of Positions/Bay/Row	Contact Finish	Number of Positions	Number of Rows [custom]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Card Type

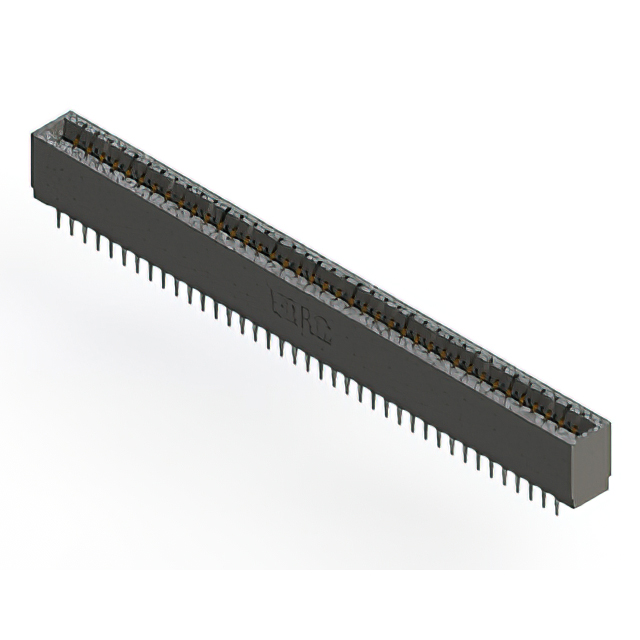

EDAC Inc. 726-078-520-201	2	Polyester Thermoplastic	Black	-40 C	105 ░C	Through Hole	Dual	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Press-Fit	Cantilever	39	Gold	78	2	Copper Alloy	30 Áin	0.76 Ám	Non Specified - Dual Edge
EDAC Inc. 726-078-553-201	2	Polyester Thermoplastic	Black	-40 C	105 ░C	Through Hole	Dual	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Press-Fit Wire Wrap	Cantilever	39	Gold	78	2	Copper Alloy	30 Áin	0.76 Ám	Non Specified - Dual Edge

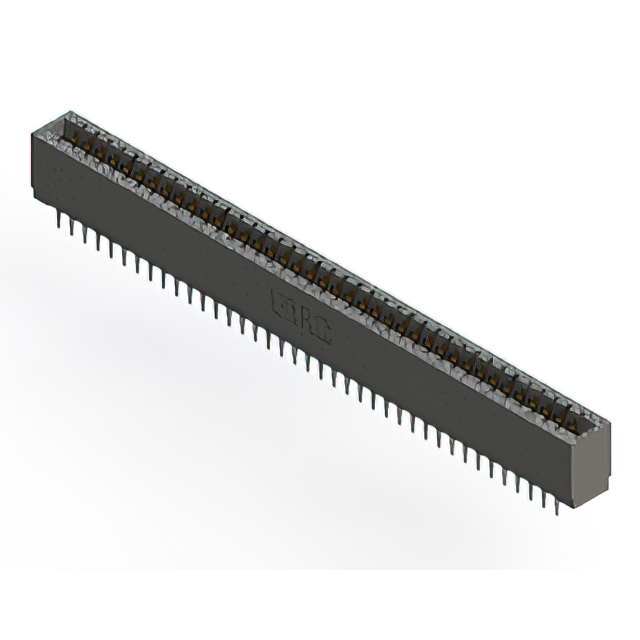

EDAC Inc. 726-078-525-201	2	Polyester Thermoplastic	Black	-40 C	105 ░C	Through Hole	Dual	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Press-Fit	Cantilever	39	Gold	78	2	Copper Alloy	30 Áin	0.76 Ám	Non Specified - Dual Edge
EDAC Inc. 726-078-540-201	2	Polyester Thermoplastic	Black	-40 C	105 ░C	Through Hole	Dual	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Press-Fit Wire Wrap	Cantilever	39	Gold	78	2	Copper Alloy	30 Áin	0.76 Ám	Non Specified - Dual Edge
EDAC Inc. 726-078-541-201	2	Polyester Thermoplastic	Black	-40 C	105 ░C	Through Hole	Dual	3.18 mm	0.125 in	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Press-Fit Wire Wrap	Cantilever	39	Gold	78	2	Copper Alloy	30 Áin	0.76 Ám	Non Specified - Dual Edge
