R14208 Series

Catalog

BNC / STRAIGHT PLUG CRIMP TYPE C

Part	Center Contact Plating	Insertion Loss	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Body Material	Dielectric Material	Frequency - Max [Max]	Shield Termination	Mounting Type	Number of Ports	Connector Type	Fastening Type	Contact Termination	Impedance	Connector Style	Housing Color	Center Contact Material	Mating Cycles	Cable Group	Cable Group
Radiall USA, Inc. R142086161W	Gold	0.2 dB	Nickel	-35 °C	70 °C	500 V	Brass	Polypropylene (PP)	1.5 GHz	Crimp	Free Hanging (In-Line)	1	Plug Male Pin	Bayonet Lock	Crimp	75 Ohms	BNC	Silver	Brass
Radiall USA, Inc. R142085702W	Gold	0.2 dB	Nickel	-65 ░C	165 °C	500 V	Brass	Polypropylene (PP)	6000 MHz	Crimp	Free Hanging (In-Line)	1	Plug Male Pin	Bayonet Lock	Crimp	75 Ohms	BNC	Silver	Brass	1000	Belden 1505A RG-59

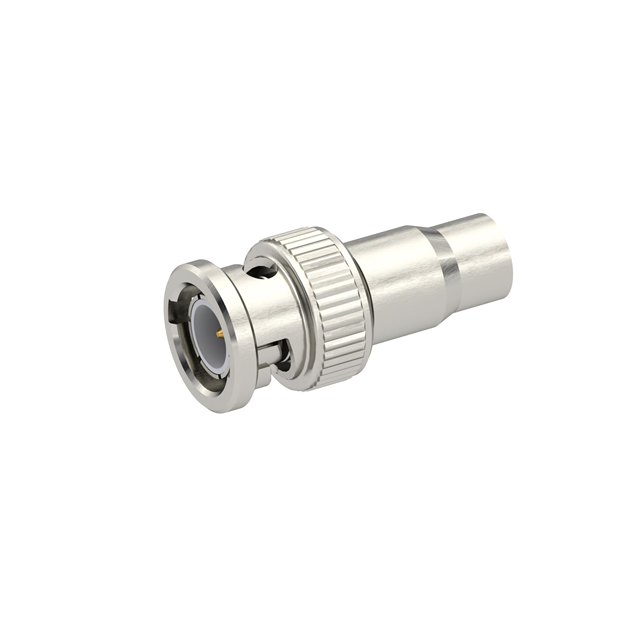

Radiall USA, Inc. R142086161	Gold	0.2 dB	Nickel	-35 °C	70 °C	500 V	Brass	Polypropylene (PP)	1.5 GHz	Crimp	Free Hanging (In-Line)	1	Plug Male Pin	Bayonet Lock	Crimp	75 Ohms	BNC	Silver	Brass

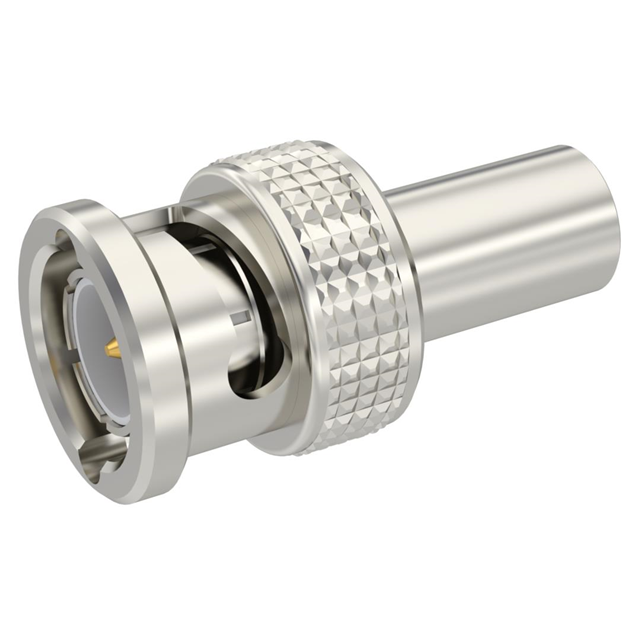

Radiall USA, Inc. R142085161	Gold	0.2 dB	Nickel	-35 °C	70 °C	500 V	Brass	Polypropylene (PP)	3 GHz	Crimp	Free Hanging (In-Line)	1	Plug Male Pin	Bayonet Lock	Crimp	75 Ohms	BNC	Silver	Brass

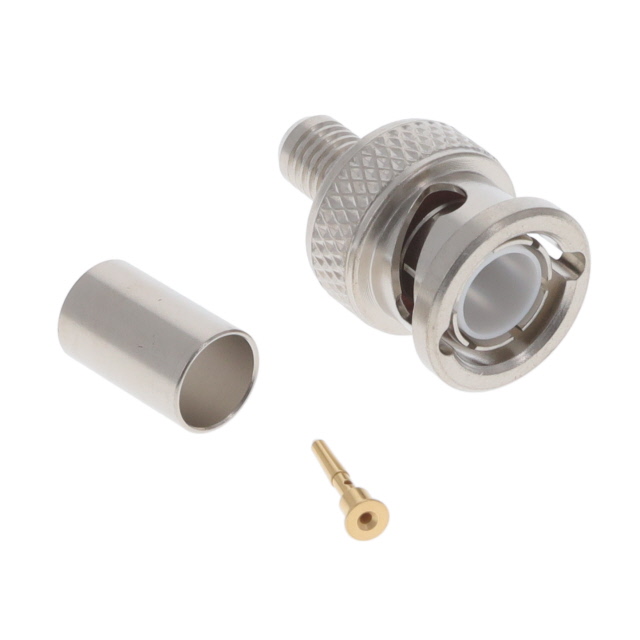

Radiall USA, Inc. R142085000W	Gold		Nickel	-65 ░C	165 °C	335 V	Brass	Polytetrafluoroethylene (PTFE)	1.5 GHz	Crimp	Free Hanging (In-Line)	1	Plug Male Pin	Bayonet Lock	Crimp	75 Ohms	BNC	Silver	Brass	500	RG-59	62
Radiall USA, Inc. R142085161W	Gold	0.2 dB	Nickel	-35 °C	70 °C	500 V	Brass	Polypropylene (PP)	3 GHz	Crimp	Free Hanging (In-Line)	1	Plug Male Pin	Bayonet Lock	Crimp	75 Ohms	BNC	Silver	Brass
