8609432831 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

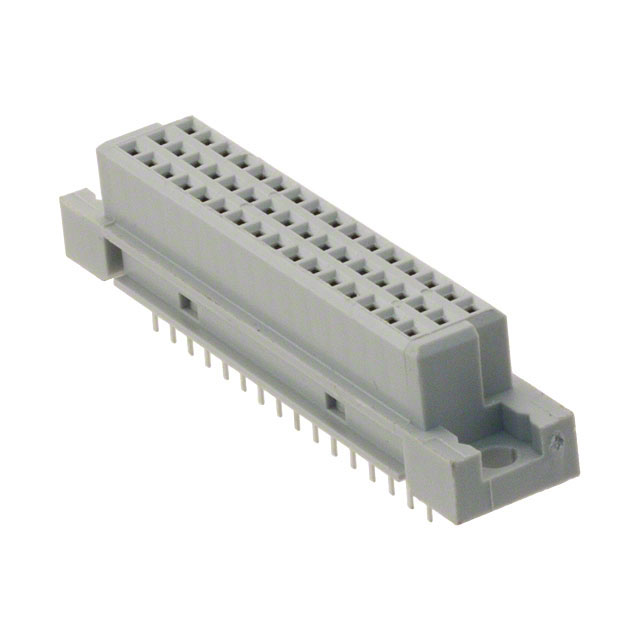

CONN DIN RCPT 48POS
| Part | Contact Finish | Level, Class | Style | Style | Termination | Material - Insulation | Mounting Type | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Material Flammability Rating | Number of Positions | Number of Positions Loaded | Pitch [x] | Pitch [x] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Gold | 1 | C/2 | 1/2 C | Solder | Polyester Thermoplastic | Through Hole | 3 | -55 °C | 125 °C | Receptacle Female Sockets | UL94 V-0 | 48 | 32 | 2.54 mm | 0.1 in | 1.5 A |
Amphenol ICC (FCI) | Gold | 3 | C/2 | 1/2 C | Solder | Polyester Thermoplastic | Through Hole | 3 | -55 °C | 125 °C | Receptacle Female Sockets | UL94 V-0 | 48 | 32 | 2.54 mm | 0.1 in | 1.5 A |
 Amphenol ICC (FCI) | Gold | C/2 | 1/2 C | Solder | Polyester Thermoplastic | Through Hole | 3 | -55 °C | 125 °C | Receptacle Female Sockets | UL94 V-0 | 48 | 32 | 2.54 mm | 0.1 in | 1.5 A |
