M2489 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

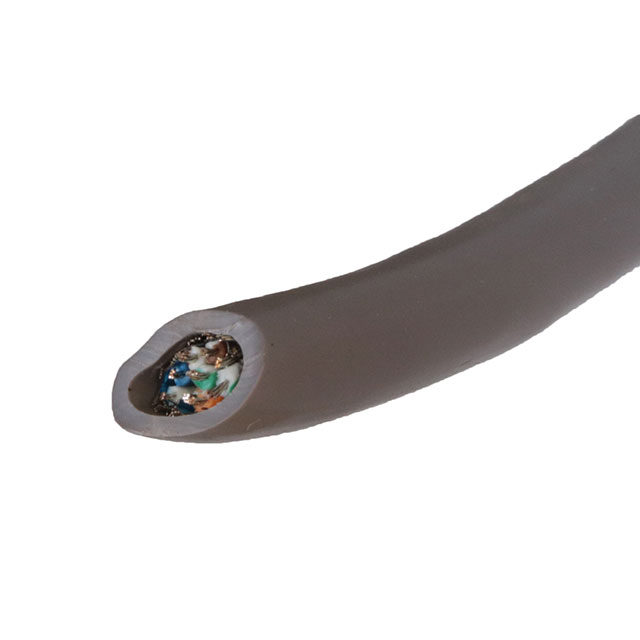

MULTI-PAIR 8COND 28AWG SLATE
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Ratings | Features | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Cable Type | Shield Type | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Wire Gauge | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 0.035 in | 0.889 mm | Copper Tinned | Foam Polypropylene (FPP) | 80 °C | -20 ░C | 152.4 m | 500 ft | UL Style 2919 | Drain Wire Rip Cord | Slate | 0.271 in | 6.88 mm | Poly-Vinyl Chloride (PVC) | Multi-Pair | Braid Foil | 300 VDC | 7 | 36 AWG | 8 | 28 AWG | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 0.035 in | 0.889 mm | Copper Tinned | Foam Polypropylene (FPP) | 80 °C | -20 ░C | 914.4 m | 3000 ' | UL Style 2919 | Drain Wire Rip Cord | Slate | 0.271 in | 6.88 mm | Poly-Vinyl Chloride (PVC) | Multi-Pair | Braid Foil | 300 VDC | 7 | 36 AWG | 8 | 28 AWG | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 0.035 in | 0.889 mm | Copper Tinned | Foam Polypropylene (FPP) | 80 °C | -20 ░C | UL Style 2919 | Drain Wire Rip Cord | Slate | 0.271 in | 6.88 mm | Poly-Vinyl Chloride (PVC) | Multi-Pair | Braid Foil | 300 VDC | 7 | 36 AWG | 8 | 28 AWG | 100 ft | 30.5 m |
