09140020 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, CARRIER, HOOD, TOP ENTRY, ALUMINUM BODY, 1 LEVER, 2 HAN-MODULAR TWIN MODULES
| Part | Housing Color | Connector Type | Housing Finish | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Ingress Protection | Style | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Lock Location | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

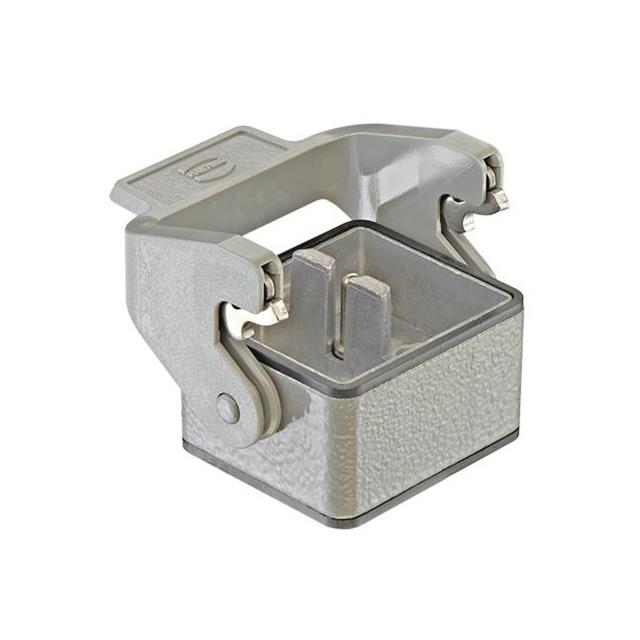

 HARTING | Gray | Hood - Carrier | Powder Coated | 26 mm | 1.535 " | 57 mm | 39 mm | 2.244 " | 1.024 " | IP65 - Dust Tight Water Resistant | Top Entry | 125 °C | -40 C | Aluminum Die Cast | Locking Clip (1) on Base Bottom | ||

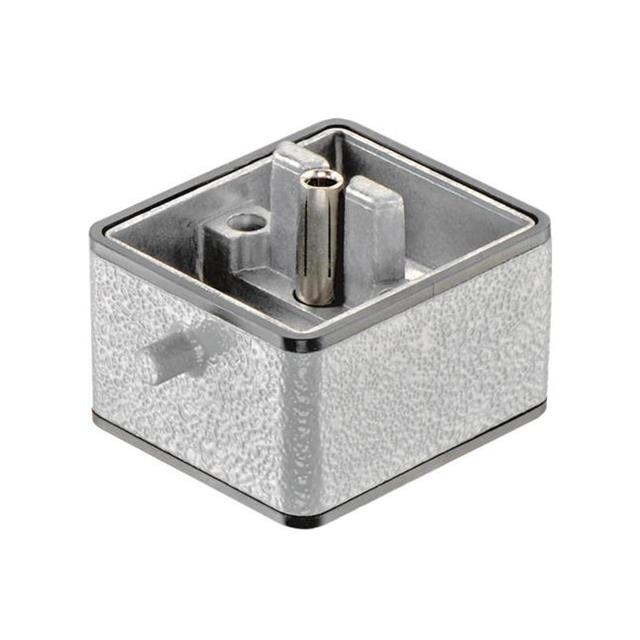

 HARTING | Gray | Base - Panel Mount | Powder Coated | 26 mm | 1.535 " | 57 mm | 39 mm | 2.244 " | 1.024 " | IP65 - Dust Tight Water Resistant | Bottom Entry | 125 °C | -40 C | Aluminum Die Cast | Locking Clip (1) on Base Bottom | ||

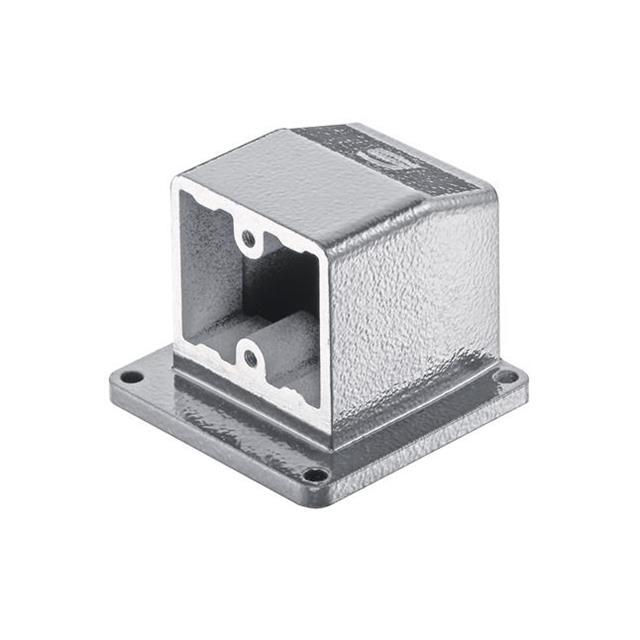

 HARTING | Gray | Base - Panel Mount 90° | Powder Coated | 2.362 in | 60 mm | 2.362 in | 1.929 in | IP65 - Dust Tight Water Resistant | Side Entry | 125 °C | -40 C | Zinc Die Cast | 49 mm | 60 mm |
