4612-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Board Thickness [Max]	Board Thickness [Max]	Board Thickness [Min]	Board Thickness [Min]	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material
Mill-Max Manufacturing Corp. 4612-0-31-80-30-14-04-0	-55 C	125 °C	2.54 mm	0.1 in	1.52 mm	0.06 in	Standard Tail	0.97 mm	0.038 "	1.02 mm	0.04 in	0.072 "	1.83 mm	0.25 Ám	10 Áin	0.031 in	0.79 mm	3.81 mm	0.15 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	Press-Fit	0.293 in	7.44 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 4612-0-31-15-30-27-04-0	-55 C	125 °C	2.54 mm	0.1 in	1.52 mm	0.06 in	No Tail			1.02 mm	0.04 in	0.072 "	1.83 mm	0.76 Ám	30 Áin			3.81 mm	0.15 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	Press-Fit	0.293 in	7.44 mm	Beryllium Copper

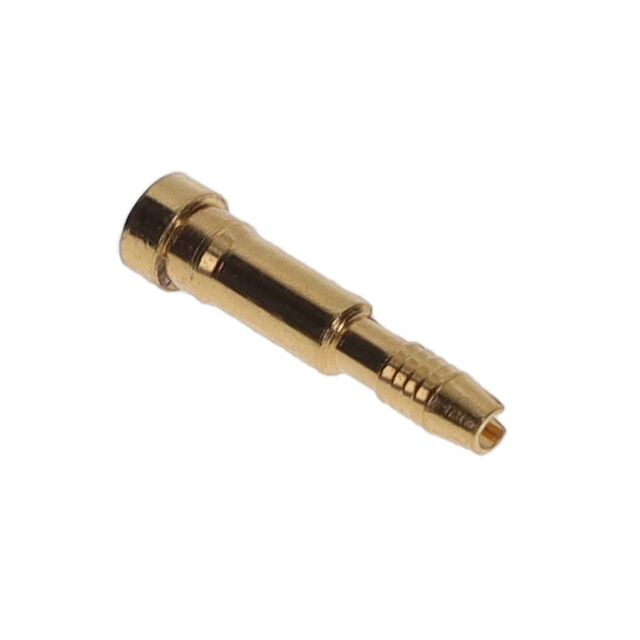

Mill-Max Manufacturing Corp. 4612-0-31-15-30-14-04-0	-55 C	125 °C	2.54 mm	0.1 in	1.52 mm	0.06 in	Standard Tail	0.97 mm	0.038 "	1.02 mm	0.04 in	0.072 "	1.83 mm	0.25 Ám	10 Áin	0.031 in	0.79 mm	3.81 mm	0.15 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	Press-Fit	0.293 in	7.44 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 4612-0-31-01-30-14-04-0	-55 C	125 °C	2.54 mm	0.1 in	1.52 mm	0.06 in	No Tail			1.02 mm	0.04 in	0.072 "	1.83 mm	0.25 Ám	10 Áin			3.81 mm	0.15 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Gold	Press-Fit	0.293 in	7.44 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 4612-0-31-80-30-84-04-0	-55 C	125 °C	2.54 mm	0.1 in	1.52 mm	0.06 in	Standard Tail	0.97 mm	0.038 "	1.02 mm	0.04 in	0.072 "	1.83 mm	2.54 µm	100 µin	0.031 in	0.79 mm	3.81 mm	0.15 in	0.64 mm	0.015 "	0.025 in	0.38 mm	Tin	Press-Fit	0.293 in	7.44 mm	Beryllium Copper
