VLD2UHH1 Series
Manufacturer: Carling Technologies
Beta
⌘K

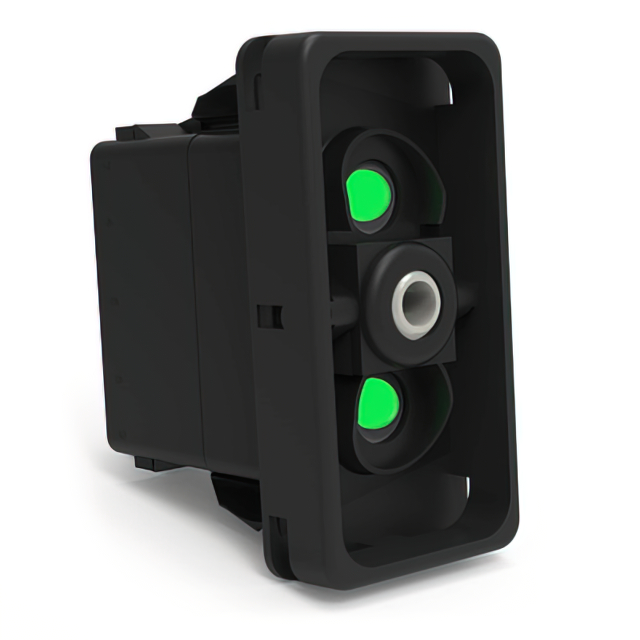

SWITCH ROCKER DPDT 20A 12V
| Part | Mechanical Life | Electrical Life | Termination Style | Approval Agency | Voltage Rating - DC | Circuit | Switch Function | Illumination Type, Color | Actuator Marking | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Illumination Voltage (Nominal) | Actuator Type | Ingress Protection | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | CSA UL VDE | 12 V | DPDT | Mom-Off-Mom | Green/Green LED | Varies by Cap | 36.83 mm | 21.08 mm | 12 VDC | Actuator Arm Cap Required Illuminated | IP66 IP68 | 20 A | 85 °C | -40 C | Panel Mount Snap-In | |
 Carling Technologies | 100000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | CSA UL VDE | 12 V | DPDT | Mom-Off-Mom | Green/Green LED | No Marking | 36.83 mm | 21.08 mm | 12 VDC | Convex (Reverse V) - Illuminated | IP66 IP68 | 20 A | 85 °C | -40 C | Panel Mount Snap-In | Black |
Carling Technologies | 100000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | CSA UL VDE | 12 V | DPDT | Mom-Off-Mom | Green/Green LED | 36.83 mm | 21.08 mm | 12 VDC | Convex (Reverse V) - Illuminated | IP66 IP68 | 20 A | 85 °C | -40 C | Panel Mount Snap-In | Black |
