PX2AN1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

PRESSURE TRANSDUCER PSIG 100PSI

Part	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Output [Min]	Output [Max]	Pressure Type	Applications	Accuracy	Features	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Termination Style	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]
Honeywell Sensing and Productivity Solutions PX2AN1XX100PSAAX	689.48 kPa	100 PSI	125 °C	-40 °C	4.75 V	5.25 V	Threaded	0.5 V	4.5 V	Sealed Gauge	Industrial Automation	0.25 %	Temperature Compensated	Cylinder	450 PSI	3102.64 kPa	Analog Voltage	Connector	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions PX2AN1XX100PAAAX	689.48 kPa	100 PSI	125 °C	-40 °C	4.75 V	5.25 V	Threaded	0.5 V	4.5 V		Industrial Automation	0.25 %	Temperature Compensated	Cylinder	450 PSI	3102.64 kPa	Analog Voltage	Connector	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions PX2AN1XX300PSCHX	2068.43 kPa	300 PSI	125 °C	-40 °C	8 V	30 VDC	Threaded	4 mA	20 mA	Sealed Gauge	Industrial Automation	0.25 %	Temperature Compensated	Cylinder	1000 PSI	6894.76 kPa	Analog Current	Connector	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions PX2AN1XX250PSACX	1723.69 kPa	250 PSI	125 °C	-40 °C	3.135 V	3.465 V	Threaded	0.33 V	2.97 V	Sealed Gauge	Industrial Automation	0.25 %	Temperature Compensated	Cylinder	750 PSI	5171.07 kPa	Analog Voltage	Connector	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions PX2AN1XX030PACHX
Honeywell Sensing and Productivity Solutions PX2AN1XX150PSCHX	1034.21 kPa	150 PSI	125 °C	-40 °C	8 V	30 VDC	Threaded	4 mA	20 mA	Sealed Gauge	Industrial Automation	0.25 %	Temperature Compensated	Cylinder	450 PSI	3102.64 kPa	Analog Current	Connector	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions PX2AN1XX300PAAAX	2068.43 kPa	300 PSI	125 °C	-40 °C	4.75 V	5.25 V	Threaded	0.5 V	4.5 V		Industrial Automation	0.25 %	Temperature Compensated	Cylinder	1000 PSI	6894.76 kPa	Analog Voltage	Connector	NPT	0.25 "	6.35 mm	Male

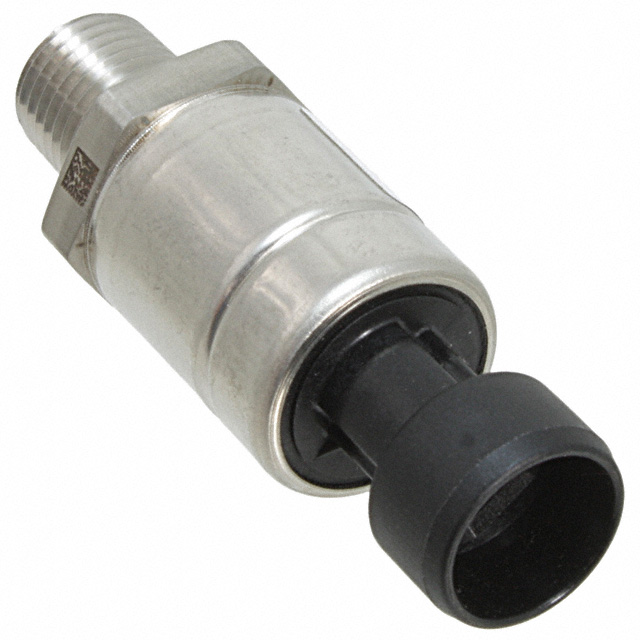

Honeywell Sensing and Productivity Solutions PX2AN1XX250PAAAX	1723.69 kPa	250 PSI	125 °C	-40 °C	4.75 V	5.25 V	Threaded	0.5 V	4.5 V		Industrial Automation	0.25 %	Temperature Compensated	Cylinder	750 PSI	5171.07 kPa	Analog Voltage	Connector	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions PX2AN1XX250PSAAX	1723.69 kPa	250 PSI	125 °C	-40 °C	4.75 V	5.25 V	Threaded	0.5 V	4.5 V	Sealed Gauge	Industrial Automation	0.25 %	Temperature Compensated	Cylinder	750 PSI	5171.07 kPa	Analog Voltage	Connector	NPT	0.25 "	6.35 mm	Male
Honeywell Sensing and Productivity Solutions PX2AN1XX500PSACX	3447.38 kPa	500 PSI	125 °C	-40 °C	3.135 V	3.465 V	Threaded	0.33 V	2.97 V	Sealed Gauge	Industrial Automation	0.25 %	Temperature Compensated	Cylinder	1000 PSI	6894.76 kPa	Analog Voltage	Connector	NPT	0.25 "	6.35 mm	Male
