PPL36W Series

Catalog

AC/DC DESKTOP ADAPTER 18V 36W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Input Connector	Output Connector [x]	Output Connector [diameter]	Output Connector	Power (Watts)	Cord Length	Cord Length	No Load Power Consumption	Standard Number	Applications	Polarization	Form	Region Utilized	Efficiency	Voltage - Output	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Max]	Input Type	Cord Length	Current - Output (Max)

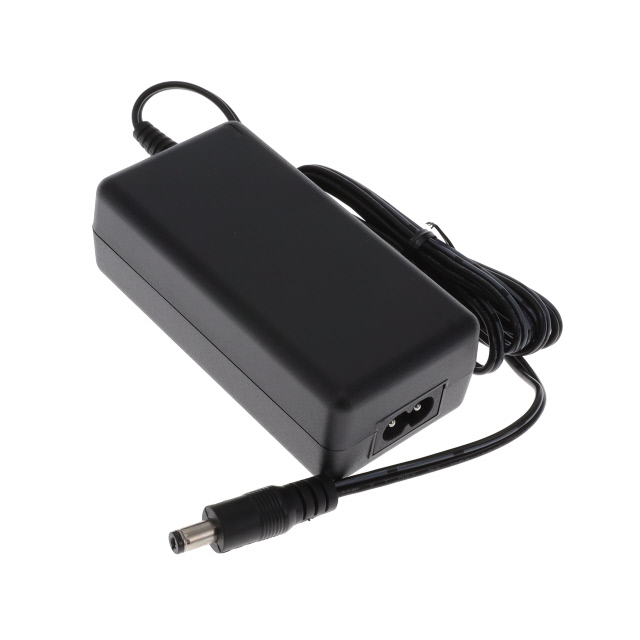

Phihong USA PPL36W-180	264 VAC	90 VAC	99 mm	33 mm	1.3 in	3.9 "	1.97 in	50 mm	IEC 320-C8	10 mm	2.1 mm 5.5 mm	Barrel Plug	36 W	1.5 m	59 in	75 mW	62368-1	ITE (Commercial)	Positive Center	Desktop (Class II)	International	CoC Tier 2 Level VI	18 V	cULus IEC	2 A	40 °C	Cord (Sold Separately)

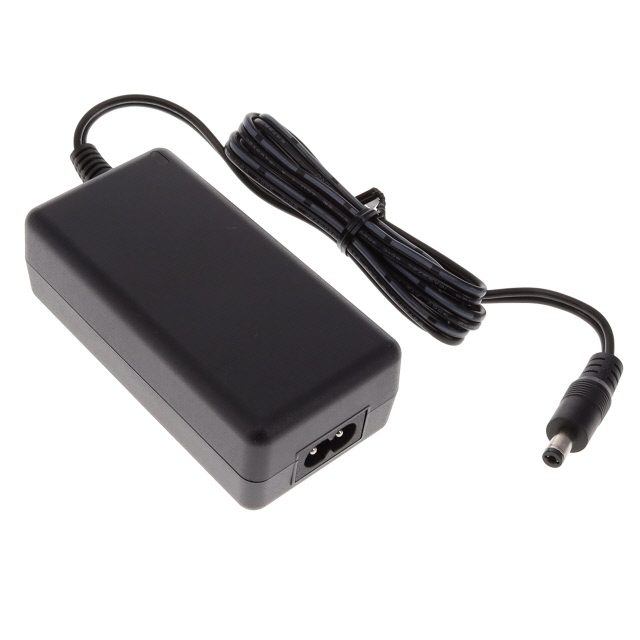

Phihong USA PPL36W-050	264 VAC	90 VAC	99 mm	33 mm	1.3 in	3.9 "	1.97 in	50 mm	IEC 320-C8	10 mm	2.1 mm 5.5 mm	Barrel Plug	25 W	39.4 in		75 mW	62368-1	ITE (Commercial)	Positive Center	Desktop (Class II)	International	CoC Tier 2 Level VI	5 V	cULus IEC		40 °C	Cord (Sold Separately)	1 m	5 A

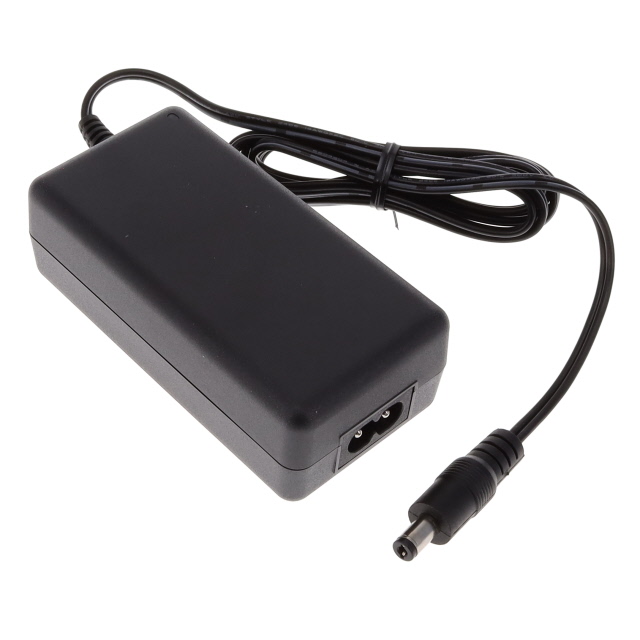

Phihong USA PPL36W-120L6	264 VAC	90 VAC	99 mm	33 mm	1.3 in	3.9 "	1.97 in	50 mm	IEC 320-C8	10 mm	2.1 mm 5.5 mm	Barrel Plug	36 W	1.5 m	59 in	100 mW	62368-1	ITE (Commercial)	Positive Center	Desktop (Class II)	International	CoC Tier 2 Level VI	12 V	cULus IEC	3 A	40 °C	Cord (Sold Separately)
Phihong USA PPL36W-090	264 VAC	90 VAC	99 mm	33 mm	1.3 in	3.9 "	1.97 in	50 mm	IEC 320-C8	10 mm	2.1 mm 5.5 mm	Barrel Plug	30 Watts	1.5 m	59 in	75 mW	62368-1	ITE (Commercial)	Positive Center	Desktop (Class II)	International	CoC Tier 2 Level VI	9 V	cULus IEC	3.34 A	40 °C	Cord (Sold Separately)

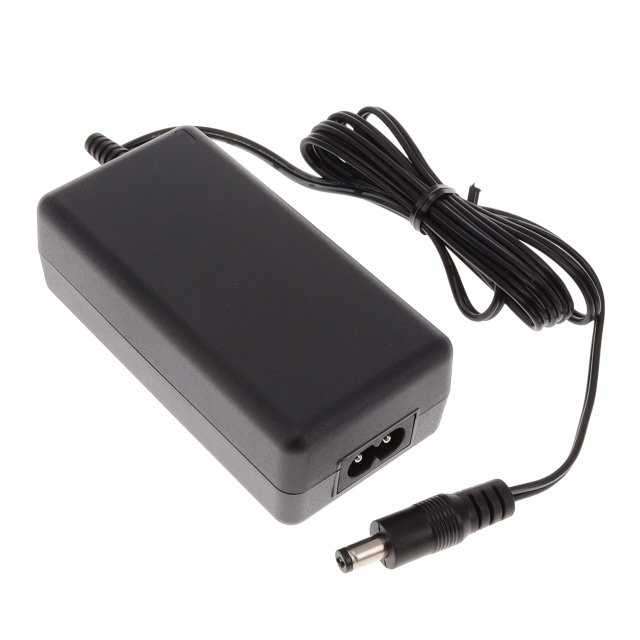

Phihong USA PPL36W-240	264 VAC	90 VAC	99 mm	33 mm	1.3 in	3.9 "	1.97 in	50 mm	IEC 320-C8	10 mm	2.1 mm 5.5 mm	Barrel Plug	36 W	1.5 m	59 in	75 mW	62368-1	ITE (Commercial)	Positive Center	Desktop (Class II)	International	CoC Tier 2 Level VI	24 V	cULus IEC	1.5 A	40 °C	Cord (Sold Separately)

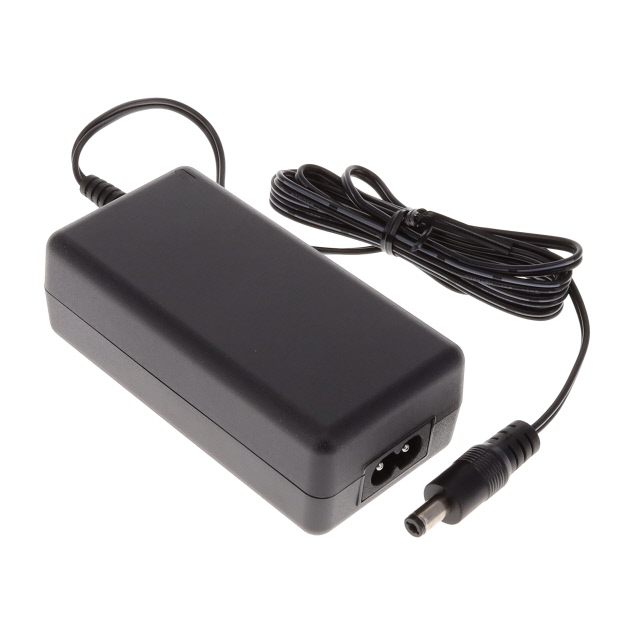

Phihong USA PPL36W-480	264 VAC	90 VAC	99 mm	33 mm	1.3 in	3.9 "	1.97 in	50 mm	IEC 320-C8	10 mm	2.1 mm 5.5 mm	Barrel Plug	36 W	1.5 m	59 in	75 mW	62368-1	ITE (Commercial)	Positive Center	Desktop (Class II)	International	CoC Tier 2 Level VI	48 V	cULus IEC	750 mA	40 °C	Cord (Sold Separately)
