FSP230 Series
Manufacturer: FSP Technology Inc.
Beta
⌘K

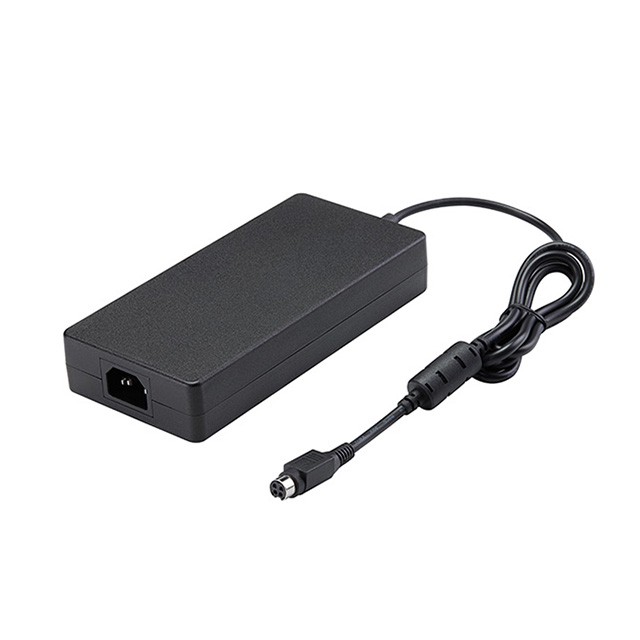

AC/DC DESKTOP ADAPTER 54V 230W
| Part | Form | Cord Length | Cord Length | Input Connector | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Input Type | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Current - Output (Max) [Max] | Voltage - Output | Standard Number | Efficiency | Power (Watts) | Region Utilized | No Load Power Consumption | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FSP Technology Inc. | Desktop (Class I) | 1.5 m | 59 in | IEC 320-C14 | CB CCC CE cULus FCC GS TUV VCCI | 70 °C | 0 °C | 264 VAC | 90 VAC | Cord (Sold Separately) | ITE (Commercial) | 1.27 " | 3.37 in | 85.6 mm | 6.97 " | 32.2 mm | 177 mm | 4.26 A | 54 V | 60950-1 62368-1 | CoC Tier 2 Level VI | 230 W | International | 500 mW | Power DIN 4 Pin |
