745-070 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 70POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions	Contact Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Termination	Gender	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Color	Number of Rows [custom]	Card Type	Read Out	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows
EDAC Inc. 745-070-520-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-070-520-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-070-522-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-070-560-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever Make Before Break	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual

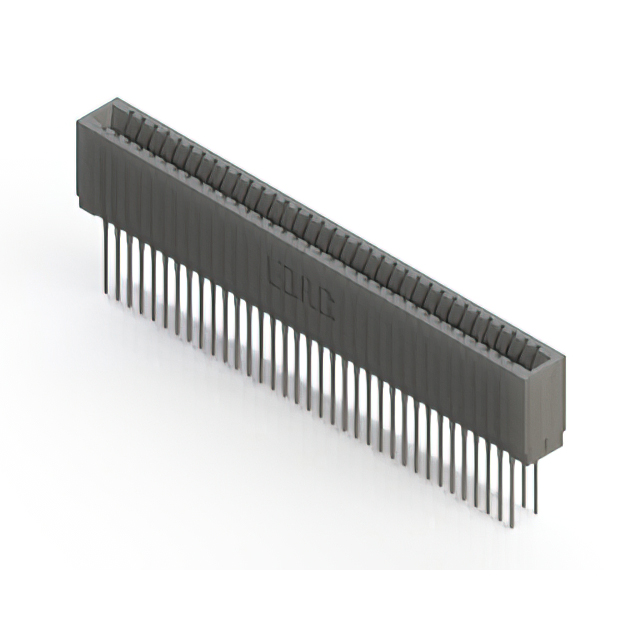

EDAC Inc. 745-070-540-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit Wire Wrap	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-070-540-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit Wire Wrap	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-070-545-201	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual
EDAC Inc. 745-070-540-101	Polyester Thermoplastic		0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám		Press-Fit Wire Wrap	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black		Non Specified - Single Edge	Single	1	70	1
EDAC Inc. 745-070-545-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual

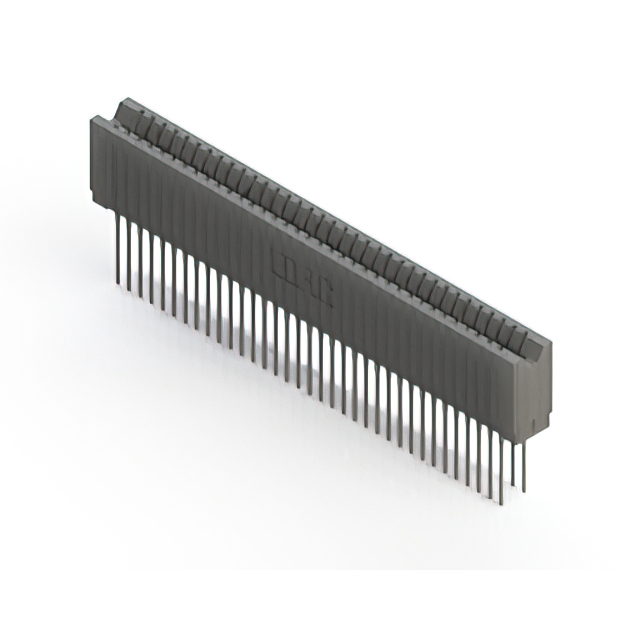

EDAC Inc. 745-070-541-206	Polyester Thermoplastic	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	70	Cantilever	Copper Alloy	30 Áin	0.76 Ám	35	Press-Fit Wire Wrap	Female	0.1 "	2.54 mm	-40 C	105 ░C	Gold	Black	2	Non Specified - Dual Edge	Dual
