PBC01 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 2POS

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish - Post	Material Flammability Rating	Contact Finish - Mating	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Termination	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Length - Post	Contact Length - Post	Style	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Fastening Type	Current Rating (Amps)	Mounting Type	Insulation Material	Overall Contact Length	Overall Contact Length	Overall Contact Length	Contact Length - Post [custom]	Contact Length - Post [custom]	Number of Rows	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PBC01DFCN	2.54 µm	100 µin	Phosphor Bronze	2	0.1 in	2.54 mm	0.1 in	2.54 mm	Tin	UL94 V-0	Gold	2	-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black	8.13 mm	0.32 in	Board to Board Cable	Male Pin	8.08 mm	0.318 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)	18.75 mm	0.738 in
Sullins Connector Solutions PBC01DFDN	2.54 µm	100 µin	Phosphor Bronze	2	0.1 in	2.54 mm	0.1 in	2.54 mm	Tin	UL94 V-0	Gold	2	-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black	10.67 mm	0.42 in	Board to Board Cable	Male Pin	8.08 mm	0.318 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)	21.29 mm		0.838 in

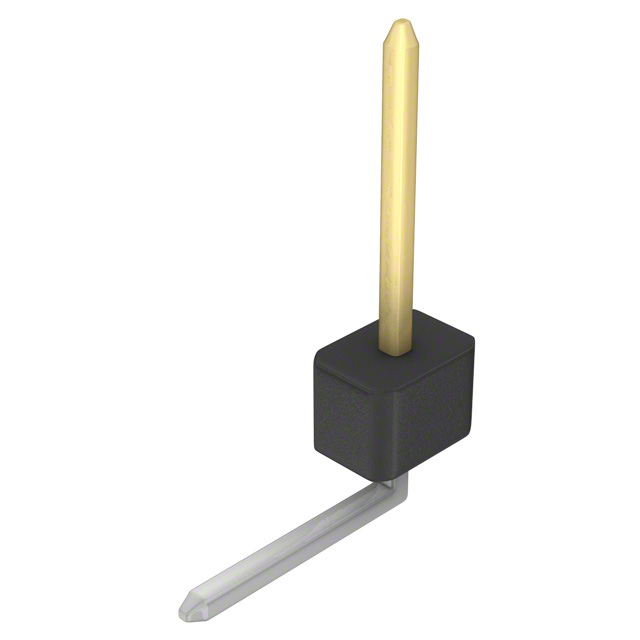

Sullins Connector Solutions PBC01SGBN	2.54 µm	100 µin	Phosphor Bronze	1			0.14 in	3.56 mm	Tin	UL94 V-0	Gold		-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black			Board to Board Cable	Male Pin	8.08 mm	0.318 in	Square	Push-Pull	3 A	Right Angle Through Hole	Polybutylene Terephthalate (PBT)				5.08 mm	0.2 "	1
Sullins Connector Solutions PBC01DAEN	2.54 µm	100 µin	Phosphor Bronze	2	0.1 in	2.54 mm	0.1 in	2.54 mm	Tin	UL94 V-0	Gold	2	-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black	13.21 mm	0.52 in	Board to Board Cable	Male Pin	5.84 mm	0.23 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)	21.59 mm		0.85 in

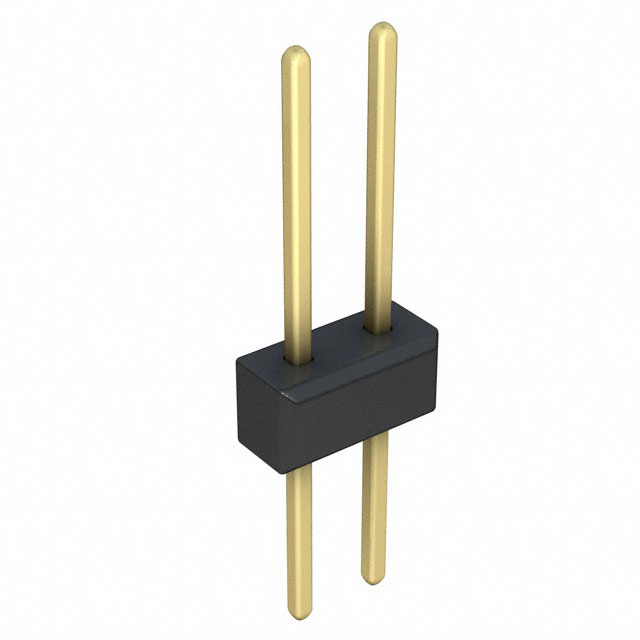

Sullins Connector Solutions PBC01DFBN	2.54 µm	100 µin	Phosphor Bronze	2	0.1 in	2.54 mm	0.1 in	2.54 mm	Tin	UL94 V-0	Gold	2	-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black	5.58 mm	0.22 in	Board to Board Cable	Male Pin	8.08 mm	0.318 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)	16.21 mm		0.638 in

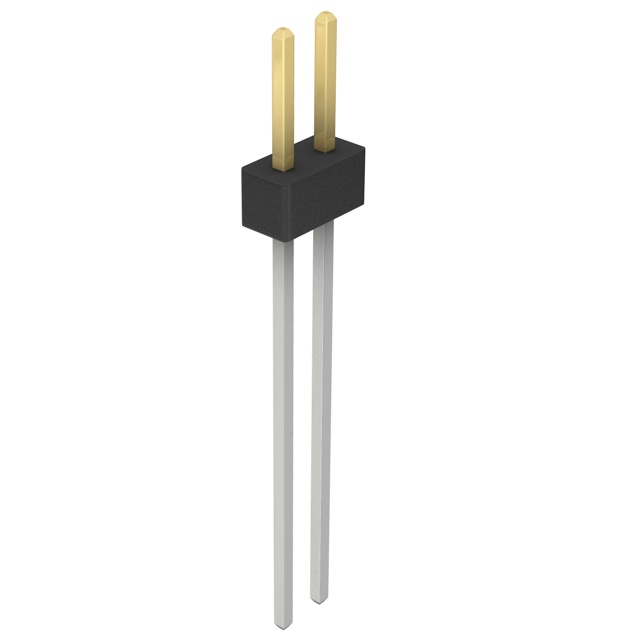

Sullins Connector Solutions PBC01DAHN	2.54 µm	100 µin	Phosphor Bronze	2	0.1 in	2.54 mm	0.1 in	2.54 mm	Tin	UL94 V-0	Gold	2	-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black	20.83 mm	0.82 in	Board to Board Cable	Male Pin	5.84 mm	0.23 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)	29.21 mm		1.15 in

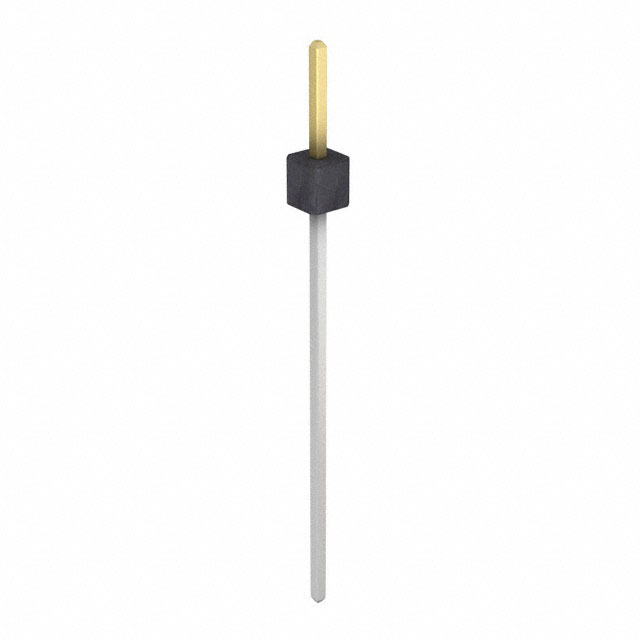

Sullins Connector Solutions PBC01SAFN	2.54 µm	100 µin	Phosphor Bronze	1			0.1 in	2.54 mm	Tin	UL94 V-0	Gold		-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black			Board to Board Cable	Male Pin	5.84 mm	0.23 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)	24.13 mm		0.95 in	15.75 mm	0.62 "	1

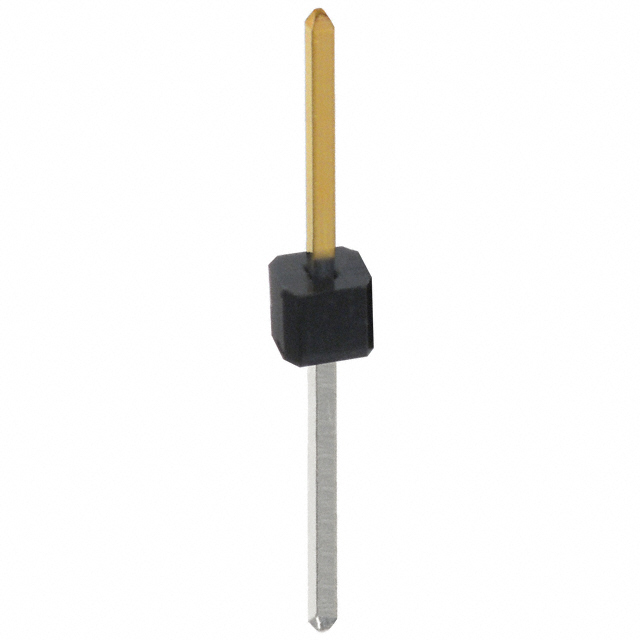

Sullins Connector Solutions PBC01SFBN	2.54 µm	100 µin	Phosphor Bronze	1			0.1 in	2.54 mm	Tin	UL94 V-0	Gold		-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black	5.58 mm	0.22 in	Board to Board Cable	Male Pin	8.08 mm	0.318 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)	16.21 mm		0.638 in			1

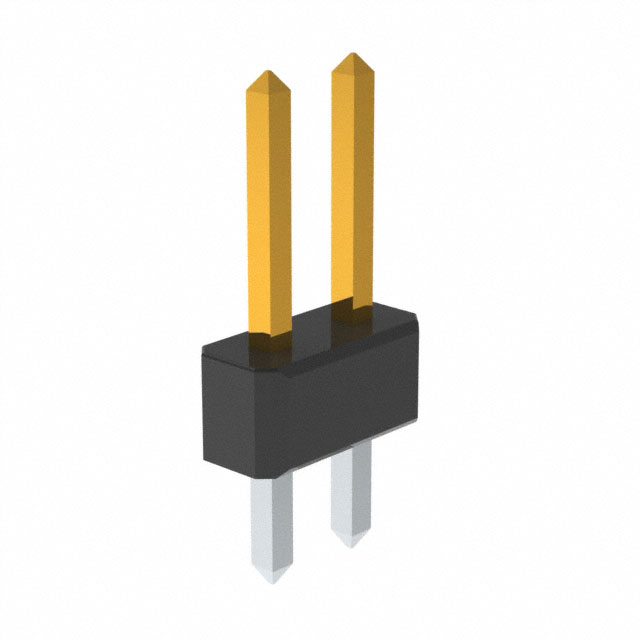

Sullins Connector Solutions PBC01DAAN	2.54 µm	100 µin	Phosphor Bronze	2	0.1 in	2.54 mm	0.1 in	2.54 mm	Tin	UL94 V-0	Gold	2	-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black	3.05 mm	0.12 in	Board to Board Cable	Male Pin	5.84 mm	0.23 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)							11.43 mm	0.45 in
Sullins Connector Solutions PBC01SADN	2.54 µm	100 µin	Phosphor Bronze	1			0.1 in	2.54 mm	Tin	UL94 V-0	Gold		-65 ░C	125 °C	Unshrouded	Solder	All	Header Breakaway	0.25 µm	10 µin	Black	10.67 mm	0.42 in	Board to Board Cable	Male Pin	5.84 mm	0.23 in	Square	Push-Pull	3 A	Through Hole	Polybutylene Terephthalate (PBT)						1	19.05 mm	0.75 in
