9116 Series
Manufacturer: Belden Inc.
Beta
⌘K

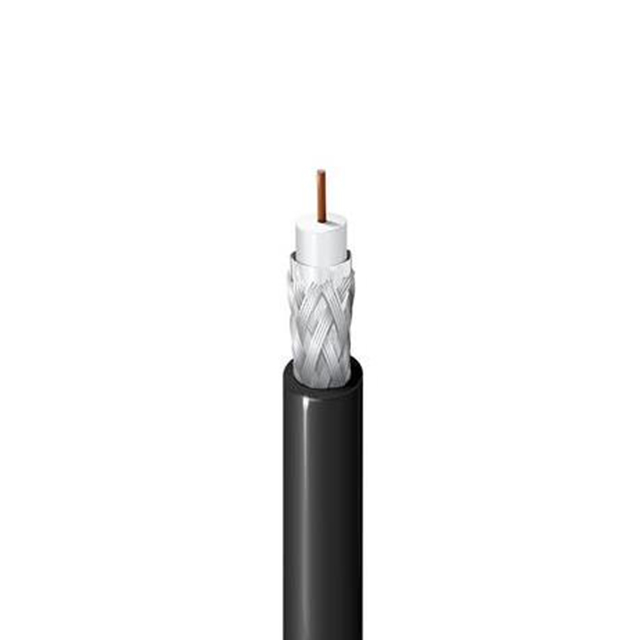

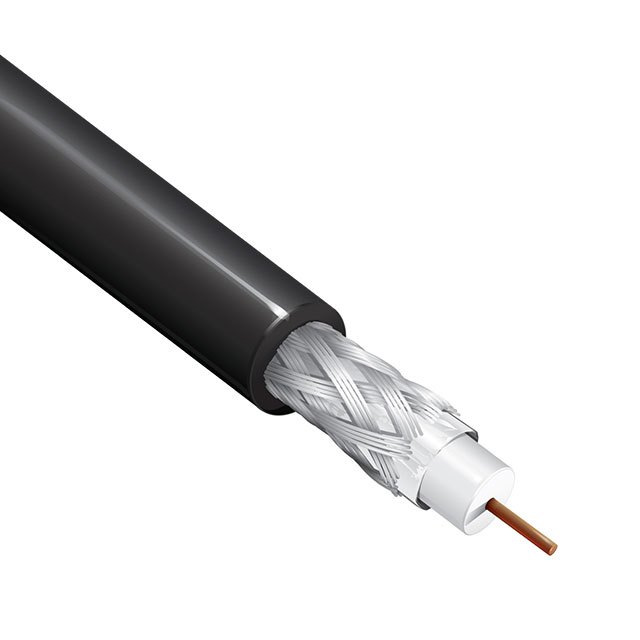

COAX 75 OHM RG6 18AWG
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage [custom] | Dielectric Material | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Conductor Material | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Length [x] | Length [x] | Jacket Color | Jacket (Insulation) Material | Cable Group | Cable Type | Impedance | Length | Usage | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.18 in | 4.57 mm | 60 % 100 % | Foam Polyethylene (FPE) | Aluminum | 80 °C | -40 C | 83 | Copper Coated Steel | 18 AWG | Braid Foil | 0.27 " | 6.86 mm | Solid | 304.8 m | 1000 ft | Black | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial | 75 Ohms | |||
 Belden Inc. | 0.18 in | 4.57 mm | 60 % 100 % | Foam Polyethylene (FPE) | Aluminum | 80 °C | -40 C | 83 | Copper Coated Steel | 18 AWG | Braid Foil | 0.27 " | 6.86 mm | Solid | 15.24 m 304.8 m | 50 ft 200 ft 1000 ft | Black | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial | 75 Ohms | 30.48 m 60.96 m | CATV | 100 ' |
Belden Inc. | 0.18 in | 4.57 mm | 60 % 100 % | Foam Polyethylene (FPE) | Aluminum | 80 °C | -40 C | 83 | Copper Coated Steel | 18 AWG | Braid Foil | 0.27 " | 6.86 mm | Solid | 304.8 m | 1000 ft | White | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial | 75 Ohms | |||
Belden Inc. | 0.18 in | 4.57 mm | 60 % 100 % | Foam Polyethylene (FPE) | Aluminum | 80 °C | -40 C | 83 | Copper Coated Steel | 18 AWG | Braid Foil | 0.27 " | 6.86 mm | Solid | 304.8 m | 1000 ft | White | Poly-Vinyl Chloride (PVC) | RG-6 | Coaxial | 75 Ohms |
