1478955 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

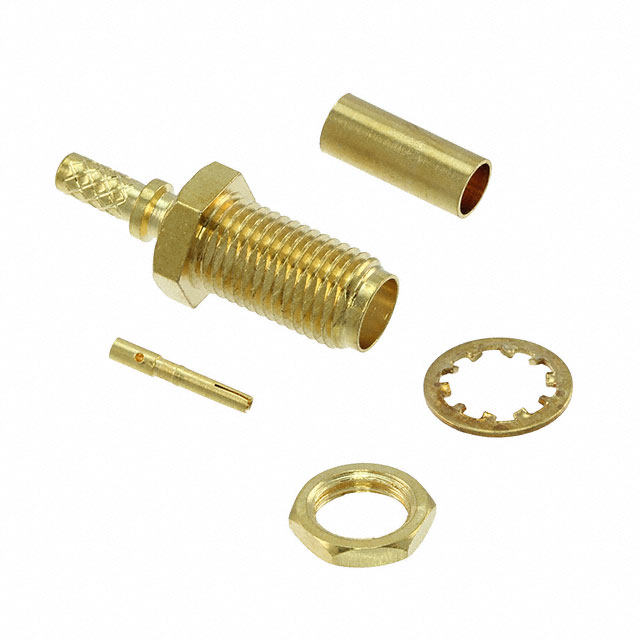

CONN SMA JACK RG174
| Part | Includes | Connector Style | Insertion Loss | Housing Color | Body Finish | Impedance | Frequency - Max [Max] | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Dielectric Material | Contact Termination | Center Contact Material | Body Material | Cable Group | Shield Termination | Mounting Feature | Number of Ports | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | |||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | SMA | 0.3 dB | Gold | Gold | 50 Ohms | 18 GHz | Female Socket Jack | -65 ░C | 165 °C | 250 VDC | Gold | Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Stainless Steel | 188A 316 RG-174A | Crimp | Bulkhead - Front Side Nut | 1 | 500 |
 TE Connectivity Raychem Cable Protection | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | SMA | 0.3 dB | Gold | Gold | 50 Ohms | 6000 MHz | Female Socket Jack | -65 ░C | 165 °C | 250 VDC | Gold | Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Brass | 188A 316 RG-174A | Crimp | Bulkhead - Front Side Nut | 1 | 500 |
