SS22SD Series

Catalog

SWITCH SLIDE ON NONE ON DPDT SIDE SLIDE 0.1A 30VDC 10000CYCLES PC PINS THRU-HOLE

Part	Electrical Life	Switch Travel	Mechanical Life	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Contact Finish	Contact Timing	Contact Material	Actuator Length [x]	Switch Function	Termination Style	Actuator Type	Circuit	Voltage Rating - AC

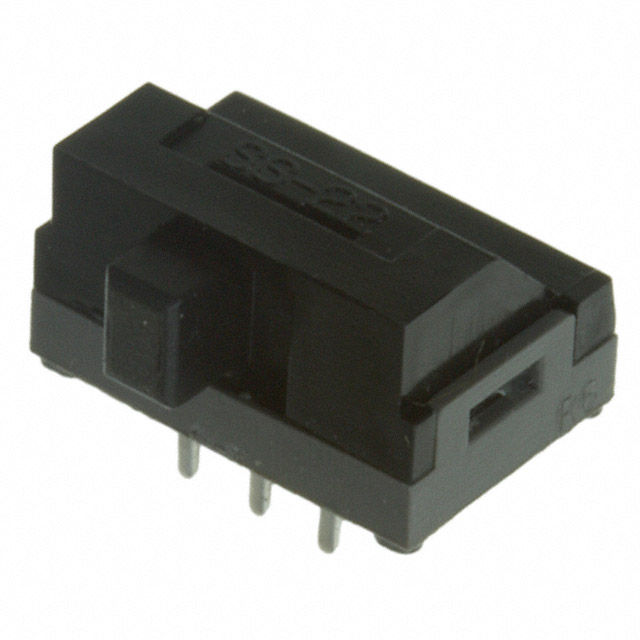

NKK Switches SS22SDH2LE	10000 Cycles	2 mm	10000 Steps	Polyacetal	-15 °C	60 °C	30 V	100 mA	Right Angle Through Hole	Silver	Shorting (MBB)	Phosphor Bronze	2.5 mm	On-On	PC Pin	Illuminated	DPDT
NKK Switches SS22SDP4	10000 Cycles	2 mm	10000 Steps	Polyamide (PA) Nylon	-15 °C	60 °C	28 V	0.4 VA	Through Hole	Gold	Shorting (MBB)	Phosphor Bronze	2 mm	On-On	PC Pin	Standard	DPDT	28 V

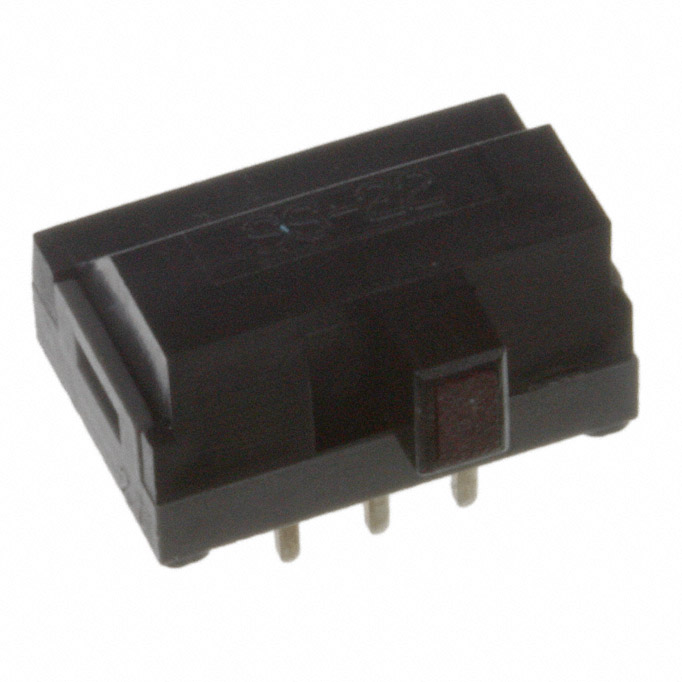

NKK Switches SS22SDH2LC	10000 Cycles	2 mm	10000 Steps	Polyacetal	-15 °C	60 °C	30 V	100 mA	Right Angle Through Hole	Silver	Shorting (MBB)	Phosphor Bronze	2.5 mm	On-On	PC Pin	Illuminated	DPDT

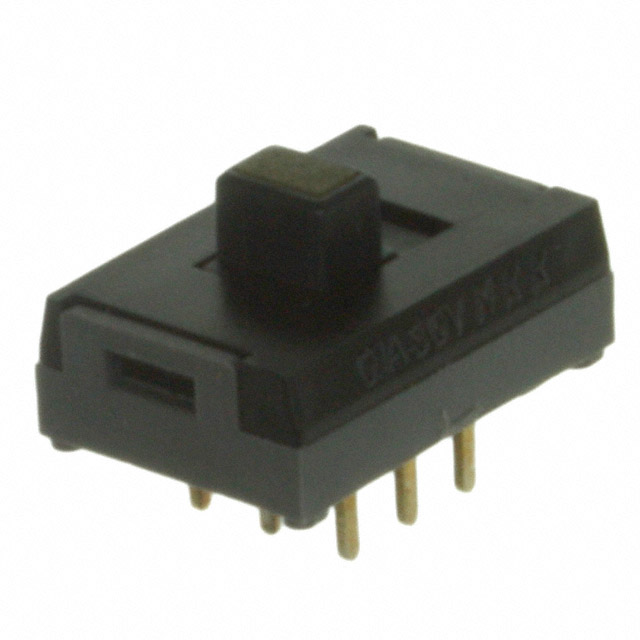

NKK Switches SS22SDP2LE	10000 Cycles	2 mm	10000 Steps	Polyacetal	-15 °C	60 °C	30 V	100 mA	Through Hole	Silver	Shorting (MBB)	Phosphor Bronze	2.5 mm	On-On	PC Pin	Illuminated	DPDT
