008228 Series

Manufacturer: Molex

Catalog

CBL RIBN 4COND 0.1 GRAY 100'

Part	Conductor Material	First Conductor Mark	Pitch	Pitch	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Ribbon Width [custom]	Ribbon Width [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	Ratings	Features	Jacket (Insulation) Material	Length	Length	Voltage	Insulation Resistance	Length [x]	Length [x]	Ribbon Thickness	Number of Conductors [custom]	Number of Conductors [custom]
Molex 0082286041	Copper Topcoat	Black	0.1 "	2.54 mm	28 AWG	0.041 in	1.04 mm	0.402 in	10.2 mm	-20 ░C	105 ░C	4	Gray	Flat Cable	36 AWG	7 Strands	Unshielded	UL E61522	Zippable	Poly-Vinyl Chloride (PVC)	100 '	30.48 m	300 VDC

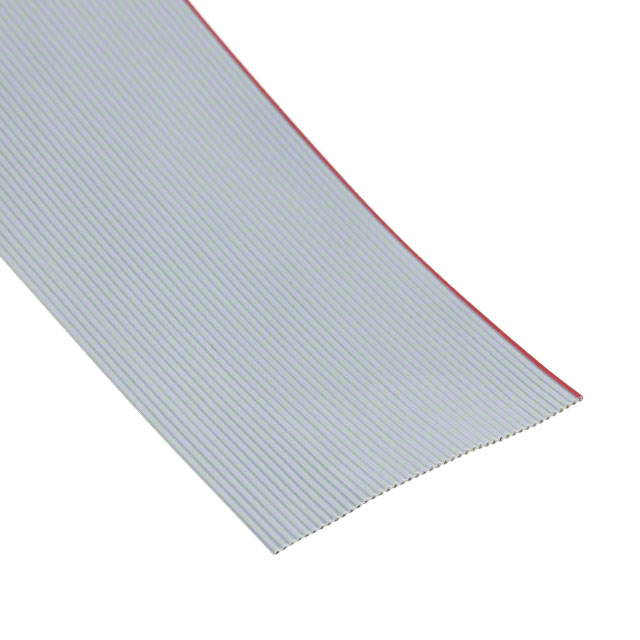

Molex 82-28-3044	Copper Tinned	Red	0.039 in	1 mm	28 AWG	0.031 in	0.79 mm	1.732 in	43.99 mm	-20 ░C	105 ░C	44	Gray	Flat Cable	36 AWG	7 Strands	Unshielded	UL E61522	Zippable	Poly-Vinyl Chloride (PVC)	10 ft	3.05 m	150 V	10 MOhms

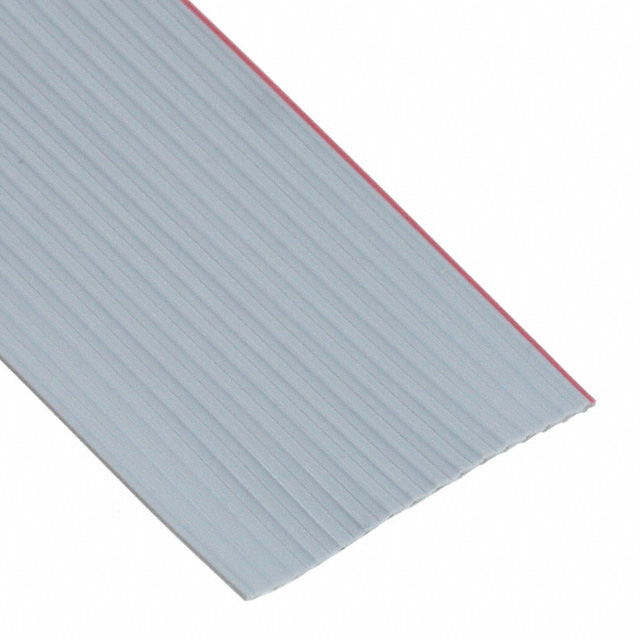

Molex 0082286161	Copper Topcoat	Red	0.1 "	2.54 mm	28 AWG	0.041 in	1.04 mm	1.6 in	40.64 mm	-20 ░C	105 ░C	16	Gray	Flat Cable	36 AWG	7 Strands	Unshielded	CSA LL61126 UL Style 2651	Zippable	Poly-Vinyl Chloride (PVC)	100 '	30.48 m	300 VDC	10 MOhms

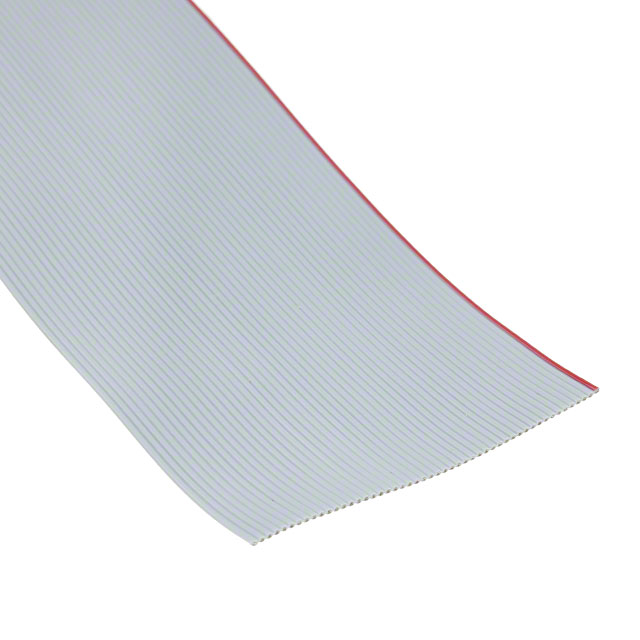

Molex 82-28-3050	Copper Tinned	Red	0.039 in	1 mm	28 AWG	0.031 in	0.79 mm	1.969 in	50.01 mm	-20 ░C	105 ░C	50	Gray	Flat Cable	36 AWG	7 Strands	Unshielded	UL E61522	Zippable	Poly-Vinyl Chloride (PVC)	10 ft 25 ft	3.05 m 7.62 m	150 V	10 MOhms	50 ft	15.24 m
Molex 0082285724	Copper Tinned	Black	0.05 in	1.27 mm	28 AWG		0.035 in	1.2 in	30.48 mm	-20 ░C	105 ░C	24	Gray	Flat Cable	36 AWG	7 Strands	Unshielded	UL E61522		Poly-Vinyl Chloride (PVC)	100 '	30.48 m	300 VDC				0.89 mm
Molex 0082283044	Copper Tinned	Red	0.039 in	1 mm	28 AWG	0.031 in	0.79 mm	1.732 in	43.99 mm	-20 ░C	105 ░C	44	Gray	Flat Cable	36 AWG	7 Strands	Unshielded	UL E61522	Zippable	Poly-Vinyl Chloride (PVC)	100 '	30.48 m	150 V	10 MOhms
Molex 0082285526
Molex 0082285768	Copper Tinned	Black	0.05 in	1.27 mm	28 AWG		0.035 in	3.4 in	86.36 mm			68	Gray	Flat Cable	36 AWG	7 Strands	Unshielded	UL E61522			100 '	30.48 m					0.89 mm
Molex 0082286251	Copper Topcoat	Black	0.1 "	2.54 mm	28 AWG	0.041 in	1.04 mm	2.5 in	63.5 mm	-20 ░C	105 ░C		Gray	Flat Cable	36 AWG	7 Strands	Unshielded	UL E61522	Zippable	Poly-Vinyl Chloride (PVC)	100 '	30.48 m	300 VDC					25
Molex 0082285508		Red	0.05 in	1.27 mm	28 AWG		0.035 in	0.4 in	10.16 mm	-20 ░C	105 ░C		Gray	Flat Cable	36 AWG	7 Strands	Unshielded	UL Style 2651	Zippable	Poly-Vinyl Chloride (PVC)	100 '	30.48 m	300 VDC	10 MOhms			0.89 mm		8
