EKA00 Series
Manufacturer: TE Intercontec
Beta
⌘K
CONN RCPT HSG MALE 12POS INLINE
| Part | Type | Ingress Protection | Insert Material | Orientation | Features | Shielding | Note | Material Flammability Rating | Number of Positions | Fastening Type | Connector Type | Contact Shape | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Includes | Housing Color | Mounting Feature | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Intercontec | For Male Pins | IP66 IP67 | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Keyed | Backshell Cable Clamp | Shielded | Contacts Not Included | UL94 V-0 | 12 | Bayonet Lock | Receptacle Housing | Circular | Free Hanging (In-Line) | -20 ░C | 130 °C | Zinc Die Cast | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Green Silver | ||
TE Intercontec | For Male Pins | IP66 IP67 | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Keyed | Backshell Cable Clamp | Shielded | Contacts Not Included | UL94 V-0 | 12 | Bayonet Lock | Receptacle Housing | Circular | Free Hanging (In-Line) | -20 ░C | 130 °C | Zinc Die Cast | 1 Clip 1 Contact Housing 1 EMI Ring 1 Grommet 1 Nut 1 Shell Housing 7 pcs - 1 Contact Block | Green Silver | ||

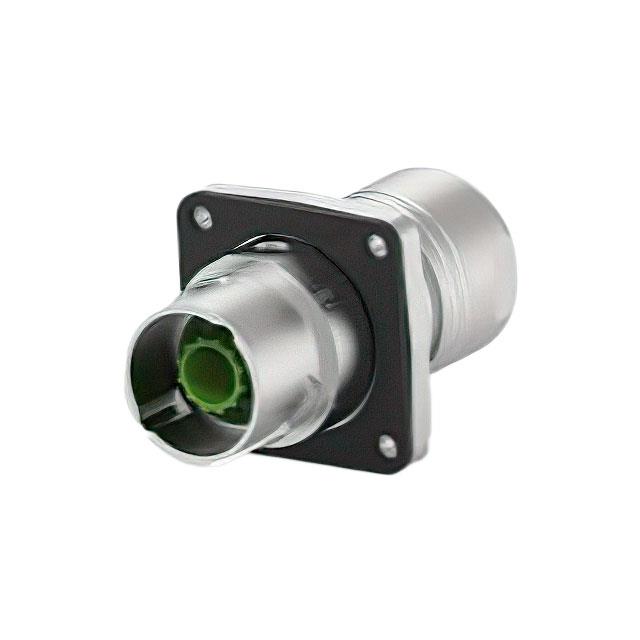

 TE Intercontec | For Male Pins | IP66 IP67 | Nylon Polyamide (PA) Polybutylene Terephthalate (PBT) | Keyed | Backshell Cable Clamp | Shielded | Contacts Not Included | UL94 V-0 | 12 | Bayonet Lock | Receptacle Housing | Circular | Free Hanging (In-Line) Panel Mount | -20 ░C | 130 °C | Zinc Die Cast | 1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring | Silver | Flange | Nickel |
