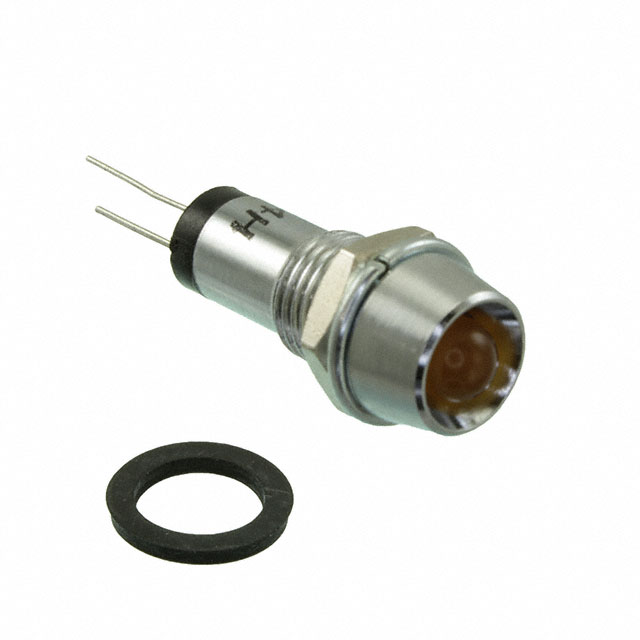

PMRL200 Series

Catalog

PMI 5-3-17 WT

Part	Panel Cutout Shape	Type	Lens Size	Lens Size	Millicandela Rating	Lamp Color	Viewing Angle	Voltage	Lens Style	Current	Panel Cutout Dimensions	Panel Cutout Dimensions	Wavelength - Peak	Ratings
Visual Communications Company - VCC PMRL200W-BG24H-WT	Round	LED	5 mm	T-1 3/4	80 mcd	Green	60 °	24 V	Round with Domed Top	17 mA	7.92 mm	0.31 in	565 nm
Visual Communications Company - VCC PMRL200W-NWG15H-WT	Round	LED	5 mm	T-1 3/4	2400 mcd	Green	45 °	15 V	Round with Domed Top	15 mA	7.92 mm	0.31 in	520 nm
Visual Communications Company - VCC PMRL200W-NWR120-WT	Round	LED	5 mm	T-1 3/4	2800 mcd	Red	30 °	120 V	Round with Domed Top	3.5 mA	7.92 mm	0.31 in	634 nm	AC
Visual Communications Company - VCC PMRL200W-BCR24H-WT	Round	LED	5 mm	T-1 3/4	120 mcd	Red	35 °	24 V	Round with Domed Top	17 mA	7.92 mm	0.31 in	635 nm
Visual Communications Company - VCC PMRL200W-NWR24H-WT	Round	LED	5 mm	T-1 3/4	2800 mcd	Red	30 °	24 V	Round with Domed Top	17 mA	7.92 mm	0.31 in	634 nm
Visual Communications Company - VCC PMRL200W-BCG24H-WT	Round	LED	5 mm	T-1 3/4	80 mcd	Green	24 °	24 V	Round with Domed Top	17 mA	7.92 mm	0.31 in	565 nm
Visual Communications Company - VCC PMRL200W-BG5H-WT	Round	LED	5 mm	T-1 3/4	80 mcd	Green	60 °	5 V	Round with Domed Top	22 mA	7.92 mm	0.31 in	565 nm
Visual Communications Company - VCC PMRL200W24-BG2-WT
Visual Communications Company - VCC PMRL200W-BCG12H-WT	Round	LED	5 mm	T-1 3/4	80 mcd	Green	24 °	12 V	Round with Domed Top	20 mA	7.92 mm	0.31 in	565 nm
Visual Communications Company - VCC PMRL200W-NWG120-WT	Round	LED	5 mm	T-1 3/4	2400 mcd	Green	45 °	120 V	Round with Domed Top	3.5 mA	7.92 mm	0.31 in	520 nm	AC
