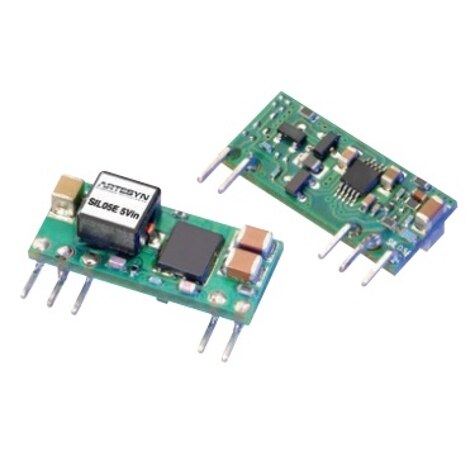

SIL05E Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS 3-5.5VDC/.75-3.63V 5A - VERTICAL MOUNT
| Part | Number of Outputs | Type | Mounting Type | Efficiency | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Power (Watts) | Current - Output (Max) | Package / Case | Voltage - Output 1 [Min] [custom] | Voltage - Output 1 [Max] [custom] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Features | Applications | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 1 | Non-Isolated PoL Module | Through Hole | 94 % | 5.5 V | 3 V | 18 W | 5 A | 5-SIP Module | 0.75 V | 3.63 V | 10.2 mm | 0.28 in | 0.4 " | 7.1 mm | 22.9 mm | 0.9 in | OTP Remote On/Off SCP | ITE (Commercial) | 85 °C | -40 C |
