1971837 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
COMBINATION LINE CONNECTOR, 4 CONTACT(S), MALE, SOLDER TERMINAL
| Part | Features | Insulation Material | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Mounting Type | Pitch - Mating | Pitch - Mating | Fastening Type | Connector Type | Termination | Number of Rows | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Material | Insulation Height | Insulation Height | Shrouding | Style | Applications | Number of Positions Loaded | Insulation Color | Number of Positions | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

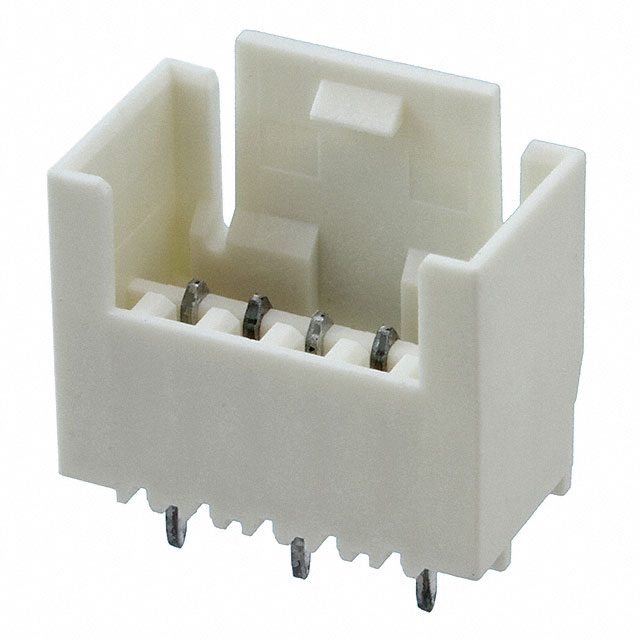

 TE Connectivity Raychem Cable Protection | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | Rectangular | 0.114 in | 2.9 mm | Silver | Through Hole | 2.5 mm | 0.098 in | Locking Ramp | Header | Solder | 1 | UL94 V-0 | -40 °C | 120 °C | Silver | Copper Alloy | 0.61 in | 15.49 mm | Shrouded - 4 Wall | Board to Cable/Wire | General Purpose | All | Natural | 4 | Tab |

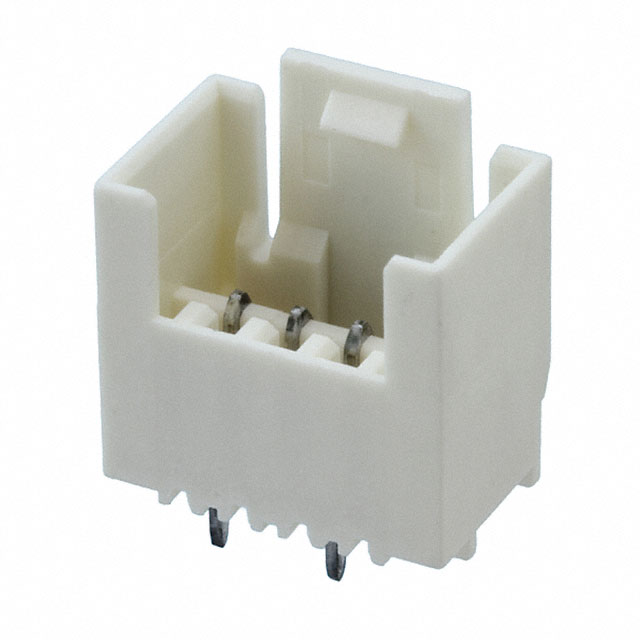

 TE Connectivity Raychem Cable Protection | Board Guide Glow Wire Compliant | Nylon Polyamide (PA) | Rectangular | 0.114 in | 2.9 mm | Silver | Through Hole | 2.5 mm | 0.098 in | Locking Ramp | Header | Solder | 1 | UL94 V-0 | -40 °C | 120 °C | Silver | Copper Alloy | 0.61 in | 15.49 mm | Shrouded - 4 Wall | Board to Cable/Wire | General Purpose | All | Natural | Tab |
