7901 Series
Manufacturer: Oupiin
Beta
⌘K

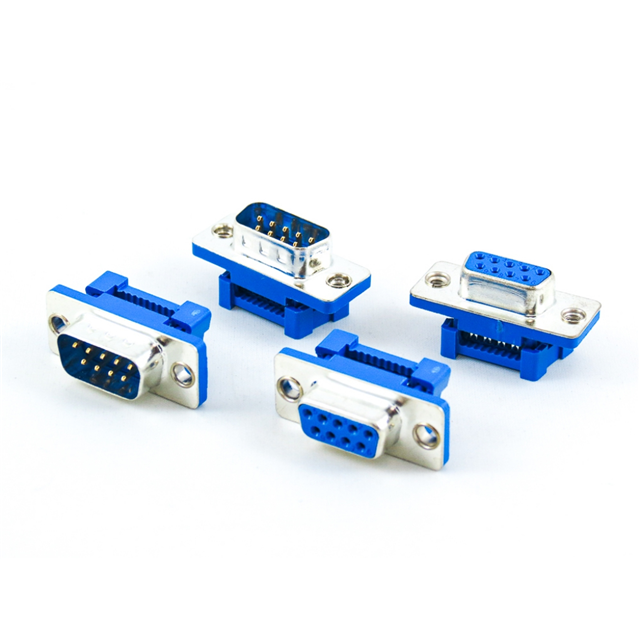

CONN D-SUB PLUG 9POS IDC
| Part | Color | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Current Rating | Features | Number of Rows | Connector Type | Contact Finish | Termination | Contact Type | Connector Style | Shell Size | Connector Layout | Number of Positions | Shell Material, Finish | Material Flammability Rating | Flange Feature | Shell Material | Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | Black | Copper Alloy | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | Free Hanging (In-Line) | 0 | Flash | Flash | 1 A | Feed Through Grounding Indents Strain Relief | 2 | Male Pins Plug | Gold | IDC Ribbon Cable | Signal | D-Sub | 1 | DE E | 9 | Metal | UL94 V-0 | Housing Shell (Unthreaded) | ||
Oupiin | Black | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 0 | Flash | Flash | 1 A | Feed Through Grounding Indents Strain Relief | 2 | Male Pins Plug | Gold | IDC Ribbon Cable | Signal | D-Sub | 1 | DE E | 9 | UL94 V-0 | Housing Shell (4-40) | Steel | Nickel Plated | |
Oupiin | Black | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 0 | Flash | Flash | 1 A | Feed Through Grounding Indents Strain Relief | 2 | Male Pins Plug | Gold | IDC Ribbon Cable | Signal | D-Sub | 2 | A DA | 15 | UL94 V-0 | Housing Shell (4-40) | Steel | Nickel Plated | |
Oupiin | Black | Copper Alloy | -55 °C | 105 °C | Glass Filled Polyester Thermoplastic | Free Hanging (In-Line) | 0 | Flash | Flash | 1 A | Feed Through Grounding Indents Strain Relief | 2 | Male Pins Plug | Gold | IDC Ribbon Cable | Signal | D-Sub | 4 | C DC | 37 pos | Metal | UL94 V-0 | Housing Shell (4-40) | ||
Oupiin | Black | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Free Hanging (In-Line) | 0 | Flash | Flash | 1 A | Feed Through Strain Relief | 2 | Female Sockets Receptacle | Gold | IDC Ribbon Cable | Signal | D-Sub | 1 | DE E | 9 | UL94 V-0 | Housing Shell (4-40) | Steel | Nickel Plated |
