L77TSBH25 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

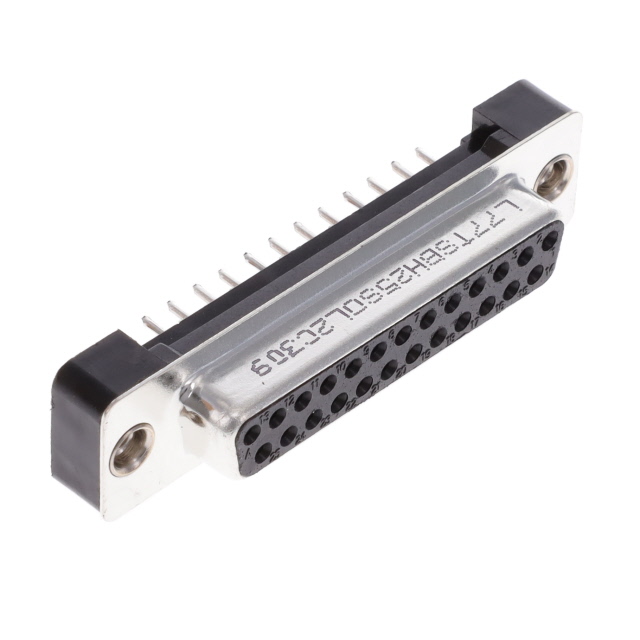

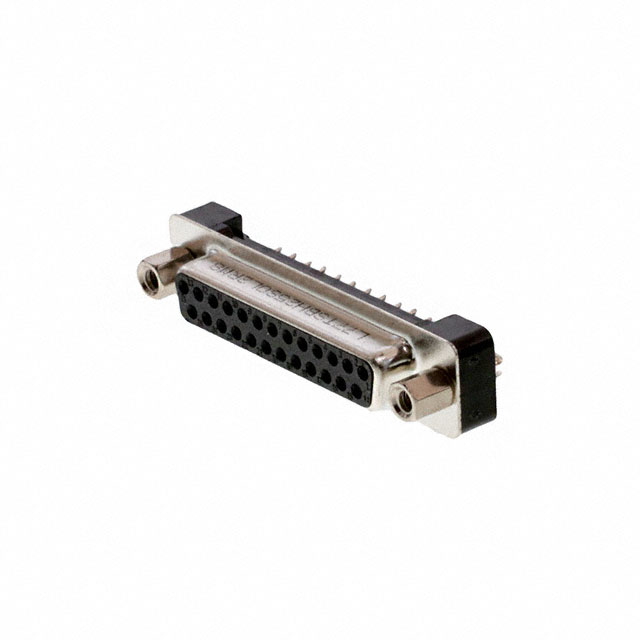

CONN D-SUB RCPT 25POS VERT SLDR
| Part | Voltage Rating | Contact Material | Contact Form | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Connector Type | Contact Finish Thickness | Number of Rows [custom] | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Termination | Features | Contact Type | Connector Style | Material Flammability Rating | Mounting Type | Number of Positions | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 600 V | Copper Alloy | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | Gold | Receptacle Female Sockets | Flash | 2 | Board Side (4-40) | B DB | 3 | Solder | Board Lock | Signal | D-Sub | UL94 V-0 | Through Hole | 25 | 5 A |
 Amphenol ICC (Commercial Products) | 600 V | Copper Alloy | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | Gold | Receptacle Female Sockets | Flash | 2 | 4-40 Mating Side Female Screwlock | B DB | 3 | Solder | Board Lock | Signal | D-Sub | UL94 V-0 | Through Hole | 25 | 5 A |
 Amphenol ICC (Commercial Products) | 600 V | Copper Alloy | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | Gold | Receptacle Female Sockets | Flash | 2 | Board Side (4-40) | B DB | 3 | Solder | Signal | D-Sub | UL94 V-0 | Through Hole | 25 | 5 A | |
 Amphenol ICC (Commercial Products) | 600 V | Copper Alloy | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | Gold | Receptacle Female Sockets | Flash | 2 | Board Side (4-40) | B DB | 3 | Solder | Signal | D-Sub | UL94 V-0 | Through Hole | 25 | 5 A | |
Amphenol ICC (Commercial Products) | 600 V | Copper Alloy | Stamped | Thermoplastic Glass Filled | -55 C | 125 °C | Gold | Receptacle Female Sockets | Flash | 2 | Board Side (4-40) | B DB | 3 | Solder | Board Lock | Signal | D-Sub | UL94 V-0 | Through Hole | 25 | 5 A |
