AMPLIMITE HDE Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

APPLICATION TOOLS, EXTRACTION TOOL

Part	For Use With/Related Products	Tool Type	Voltage Rating	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish	Connector Style	Termination	Current Rating (Amps)	Number of Positions	Mounting Type	Contact Finish Thickness	Connector Type	Contact Type	Flange Feature	Number of Rows [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Dielectric Material	Contact Size	Contact Form	Contact Finish Thickness	Contact Finish Thickness	Type	Features	Contact Termination	Shell Size, Connector Layout
TE Connectivity AMP Connectors 91232-1	D-Sub Terminals	Insertion/Extraction Tool
TE Connectivity AMP Connectors 1-749814-2			250 V	26 AWG	22 AWG	Phosphor Bronze	Black	-55 C	105 ░C	UL94 V-0	Gold	D-Sub	Discrete Wire IDC	Varies by Wire Gauge	25	Free Hanging (In-Line)	Flash	Receptacle Female Sockets	Signal	4-40 Cable Side Male Short Screw	2	B DB	3

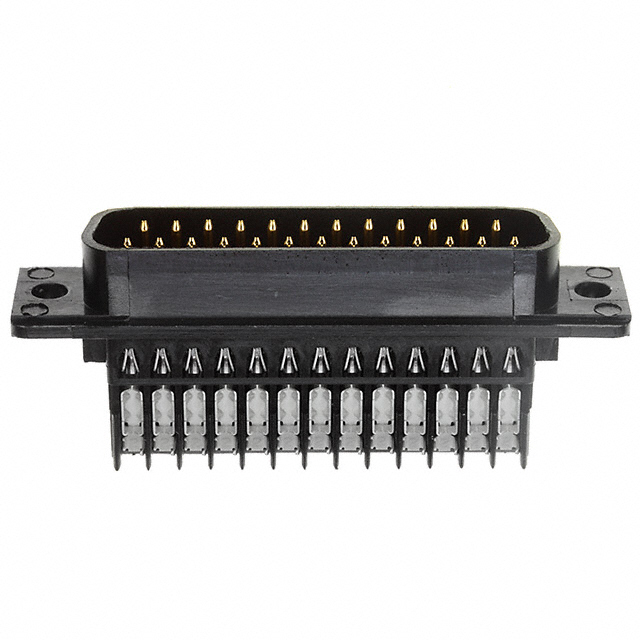

TE Connectivity AMP Connectors 745211-7			250 V	26 AWG	22 AWG	Phosphor Bronze	Black	-55 C	105 ░C	UL94 V-0	Gold	D-Sub	Discrete Wire IDC	Varies by Wire Gauge	25	Free Hanging (In-Line)	Flash	Plug Male Pins	Signal	Housing/Shell (Unthreaded)	2	B DB	3	Thermoplastic

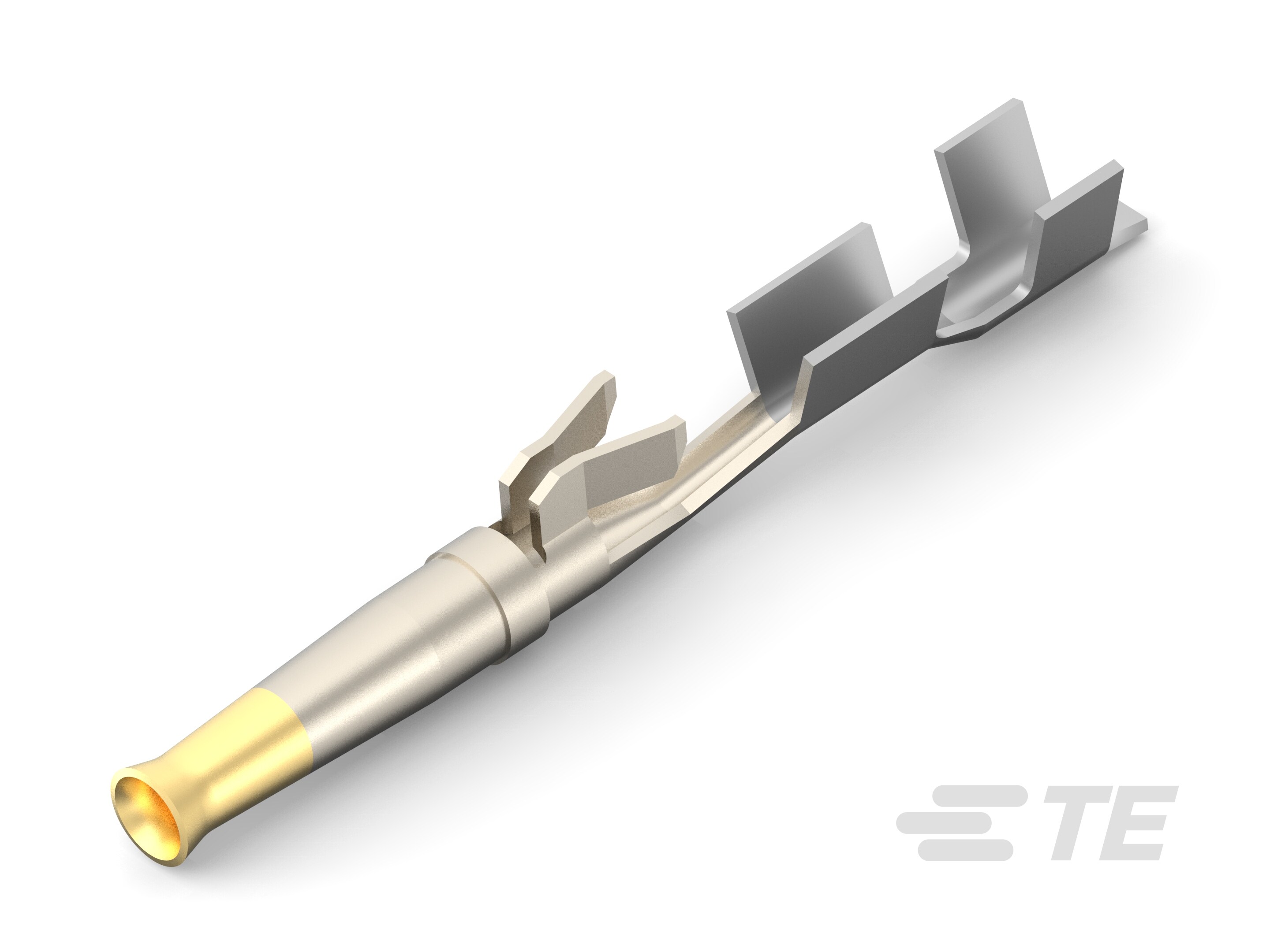

TE Connectivity AMP Connectors 1-745269-1				26 AWG	22 AWG	Phosphor Bronze					Gold								Female Socket						20	Stamped	30 Áin	0.76 Ám	Signal	Insulation Support	Crimp

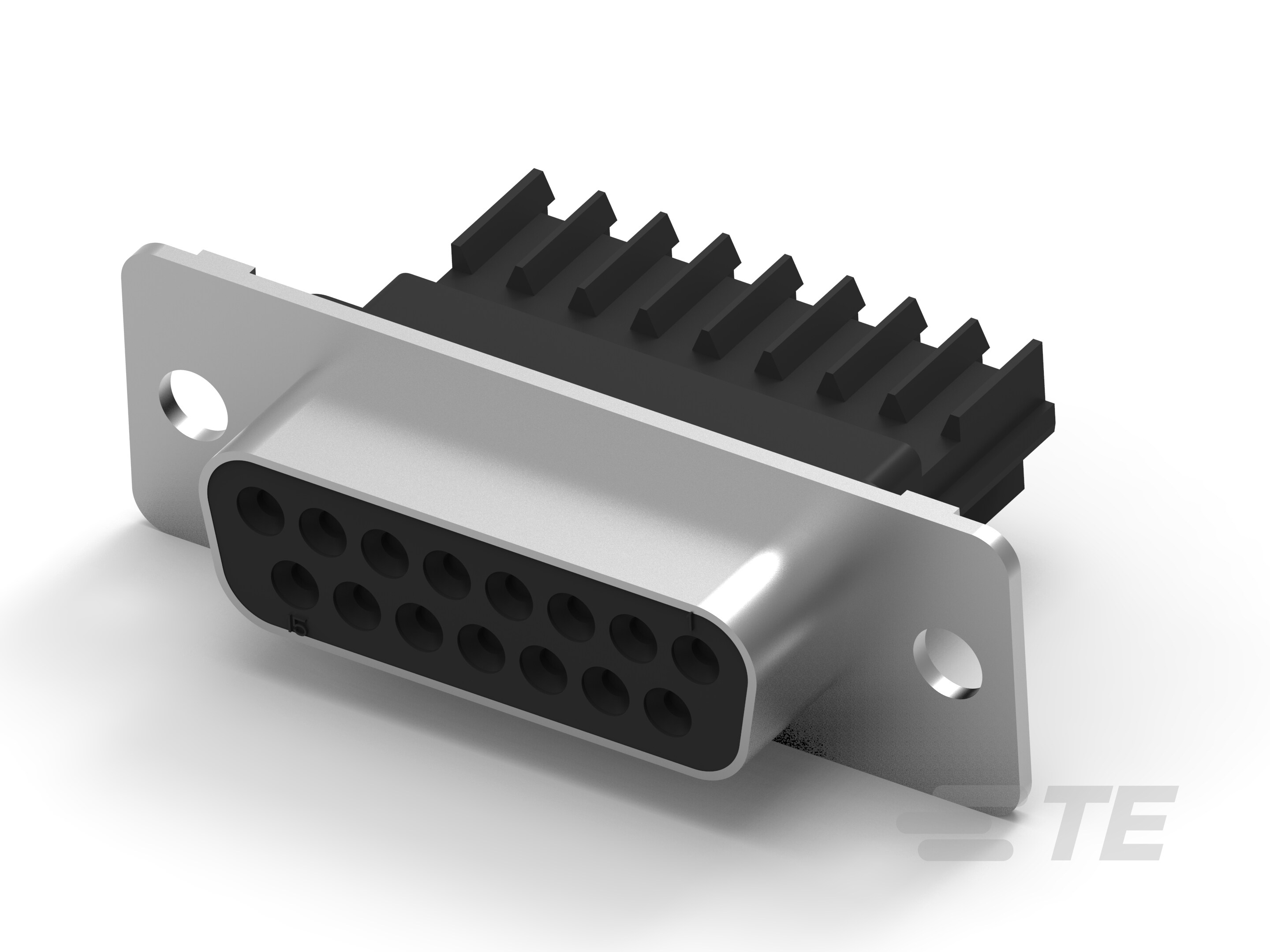

TE Connectivity AMP Connectors 1-745493-4										UL94 V-0	Gold	D-Sub	Discrete Wire IDC	Varies by Wire Gauge	15	Free Hanging (In-Line)		Receptacle Female Sockets	Signal	Housing/Shell (Unthreaded)	2						30 Áin	0.76 Ám				2

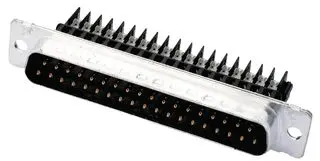

TE Connectivity AMP Connectors 1-745494-7										UL94 V-0	Gold	D-Sub	Discrete Wire IDC	Varies by Wire Gauge	15	Free Hanging (In-Line)		Plug Male Pins	Signal	Housing/Shell (Unthreaded)	2						30 Áin	0.76 Ám		Grounding Indents		2
TE Connectivity AMP Connectors 91287-1	D-Sub IDC Connectors	Insertion Tool

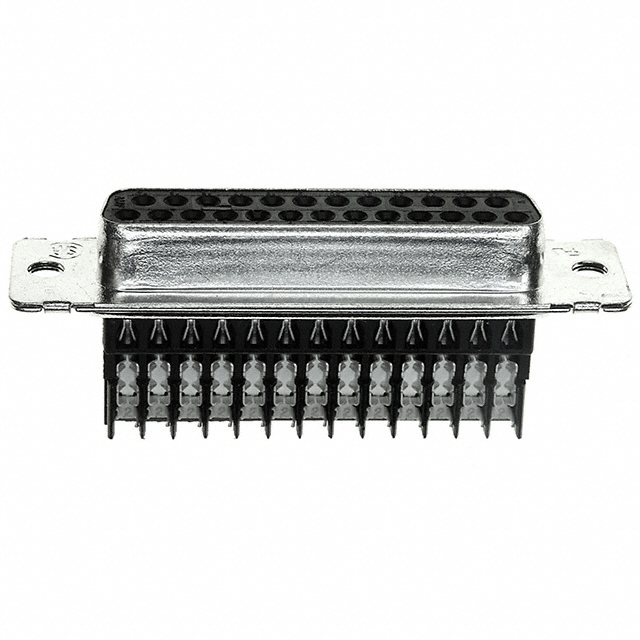

TE Connectivity AMP Connectors 2-745495-0			250 V	26 AWG	22 AWG	Phosphor Bronze	Black	-55 C	105 ░C	UL94 V-0	Gold	D-Sub	Discrete Wire IDC	Varies by Wire Gauge	25	Free Hanging (In-Line)		Receptacle Female Sockets	Signal	Housing/Shell (Unthreaded)	2	B DB	3	Thermoplastic Glass Filled			1 µin	0.025 µm
TE Connectivity AMP Connectors 1-745498-5										UL94 V-0	Gold	D-Sub	Discrete Wire IDC	Varies by Wire Gauge	37	Free Hanging (In-Line)		Plug Male Pins	Signal	Housing/Shell (Unthreaded)	2	DC C								Grounding Indents		4
TE Connectivity AMP Connectors 1-745497-6										UL94 V-0	Gold	D-Sub	Discrete Wire IDC	Varies by Wire Gauge	37	Free Hanging (In-Line)		Receptacle Female Sockets	Signal	Housing/Shell (Unthreaded)	2	DC C					30 Áin	0.76 Ám				4
